INSPECTION PROCEDURE
Trouble Diagnosis of Turbocharger
Check items before trouble diagnosis
1. Check that the engine oil level is between L (Low level) and H (High level) of the oil level gauge. [When the engine oil amount is more then H (High level), the engine oil flows into the inlet duct through the blowby gas passage, and the turbocharger is misjudged failure.]
2. Ask the customer if he/she always runs the vehicle in idle engine speed to cool the engine oil down after driving.

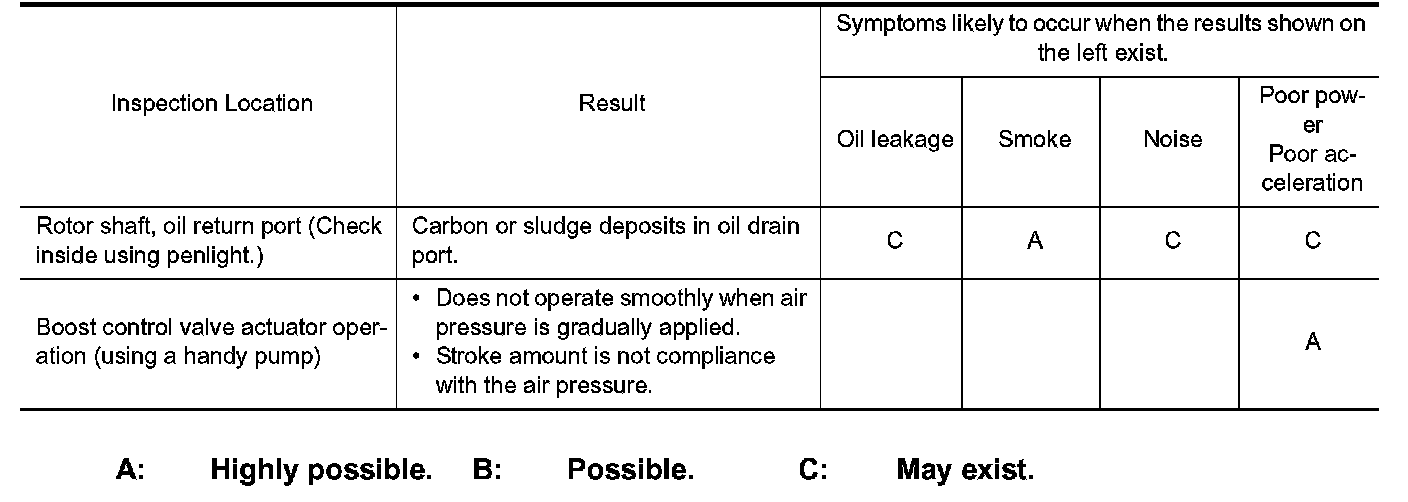

- Replace the exhaust manifold and turbocharger assembly when any malfunction is found after unit inspections specified in the table below.
- If no malfunction is found after the unit inspections, judge that the turbocharger body has no non-standard conditions. Check the other parts again.











INSPECTION AFTER REMOVAL

Turbocharger
Turbocharger











CAUTION:

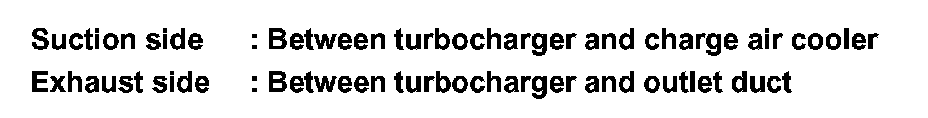

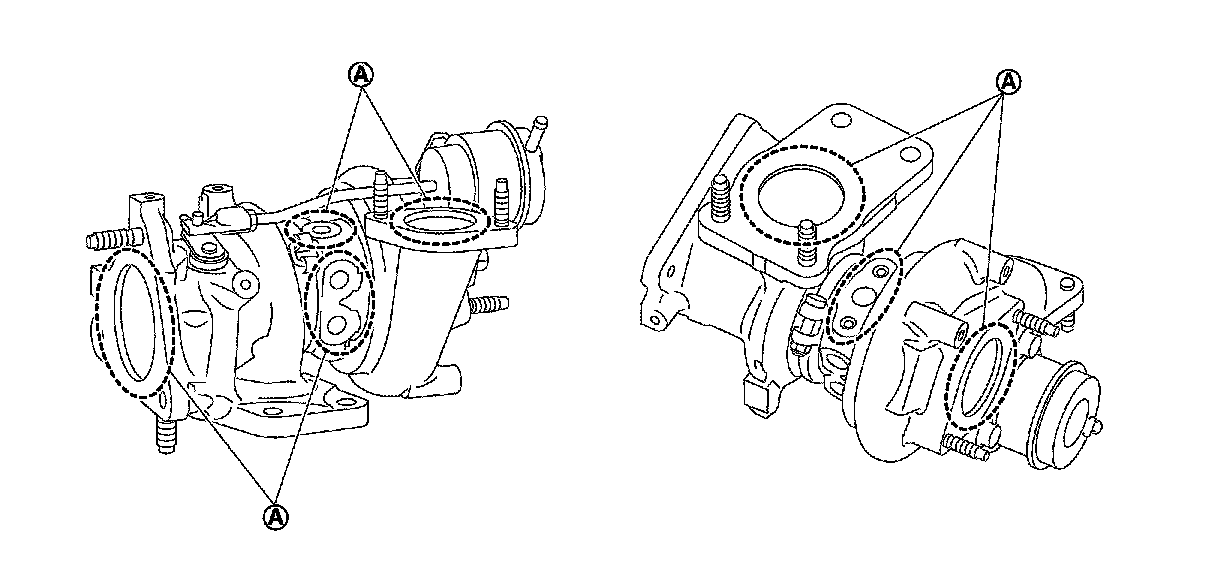

When the compressor wheel, turbine wheel or rotor shaft is damaged, remove all the fragments and foreign matter left in the following passages in order to prevent a secondary failure:






Turbocharger Boost Control

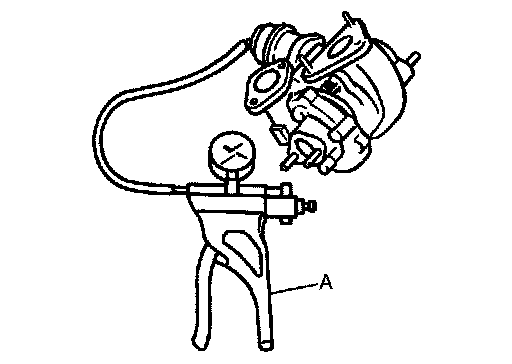

- Connect the a pressurized handy pump (A) to the actuator, and check that the rod strokes smoothly in compliance with the following pressure.






INSPECTION AFTER INSTALLATION
Start engine and raise engine speed to check no exhaust emission leaks.
