Disassembly And Assembly

EVAP CANISTER


2WD : Disassembly and Assembly


DISASSEMBLY

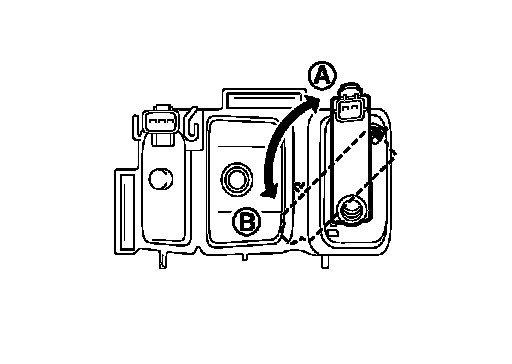

1. Disengage the pawl and turn EVAP canister vent control valve counter clockwise.
- Lock (A)
- Unlock (B)
2. Remove the EVAP canister vent control valve.

ASSEMBLY
Assemble in the reverse order of disassembly.

CAUTION:
Always replace O-ring with a new one.
