Juke FWD L4-1.6L Turbo (MR16DDT)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
Fail Safe
Fail Safe
ECM
Fail Safe

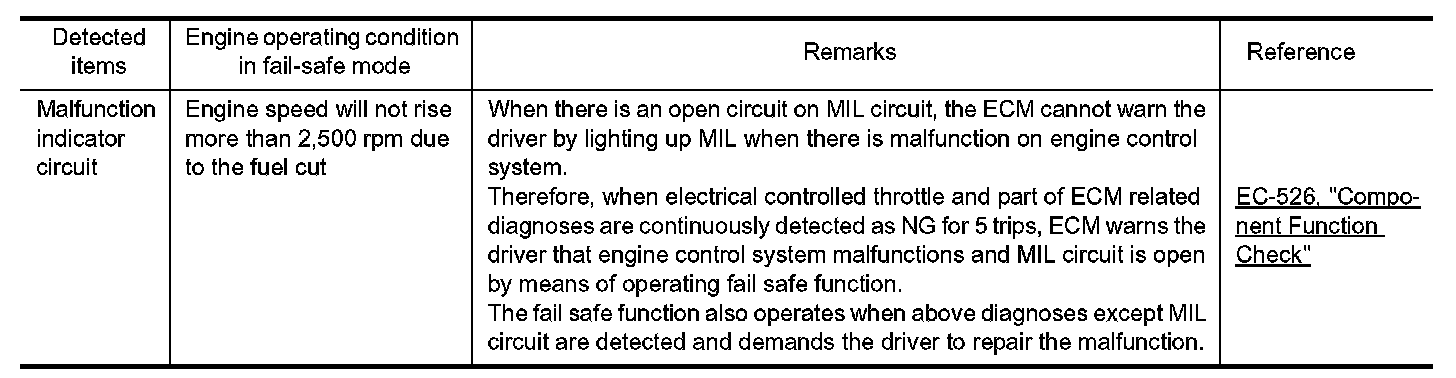

NON DTC RELATED ITEM

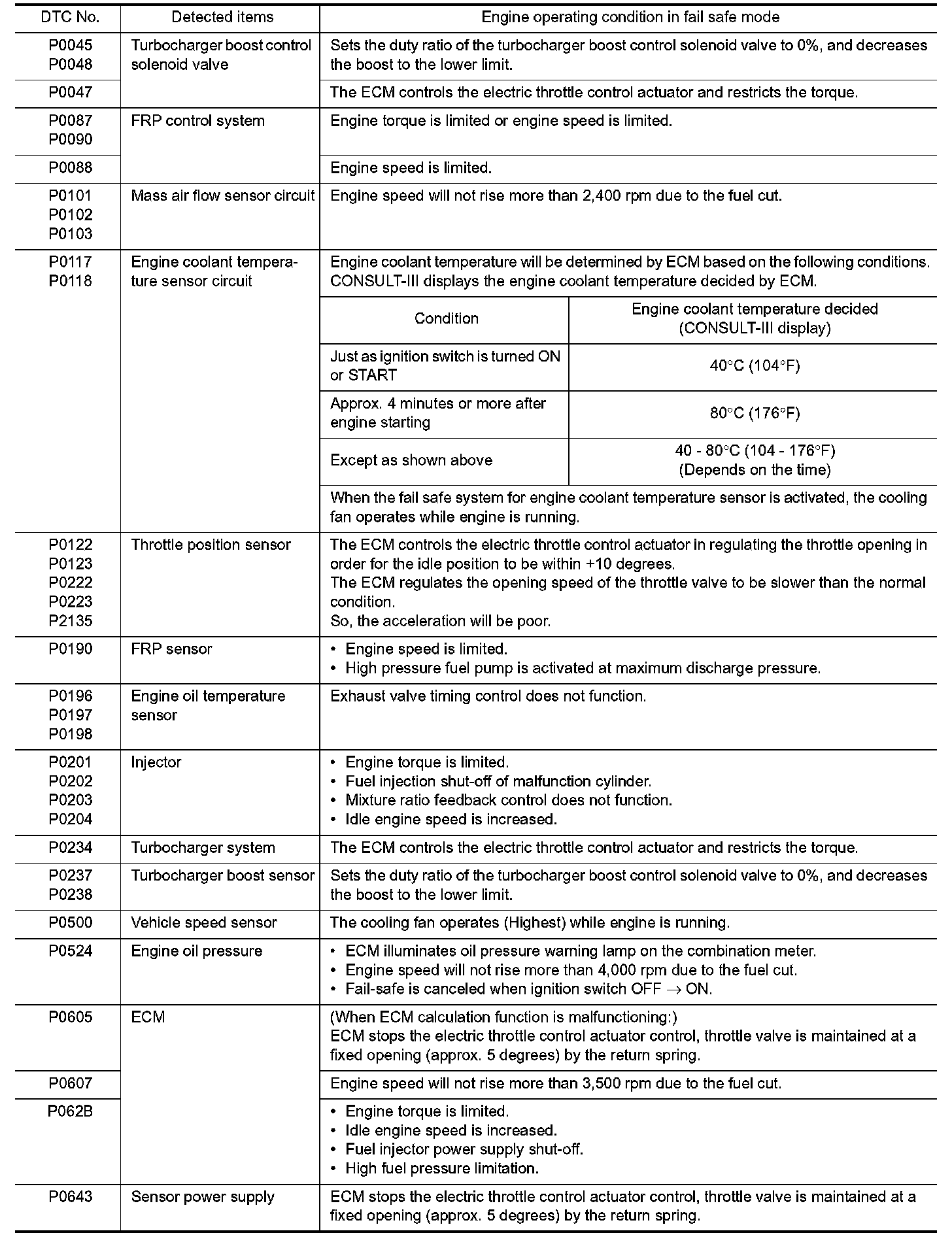

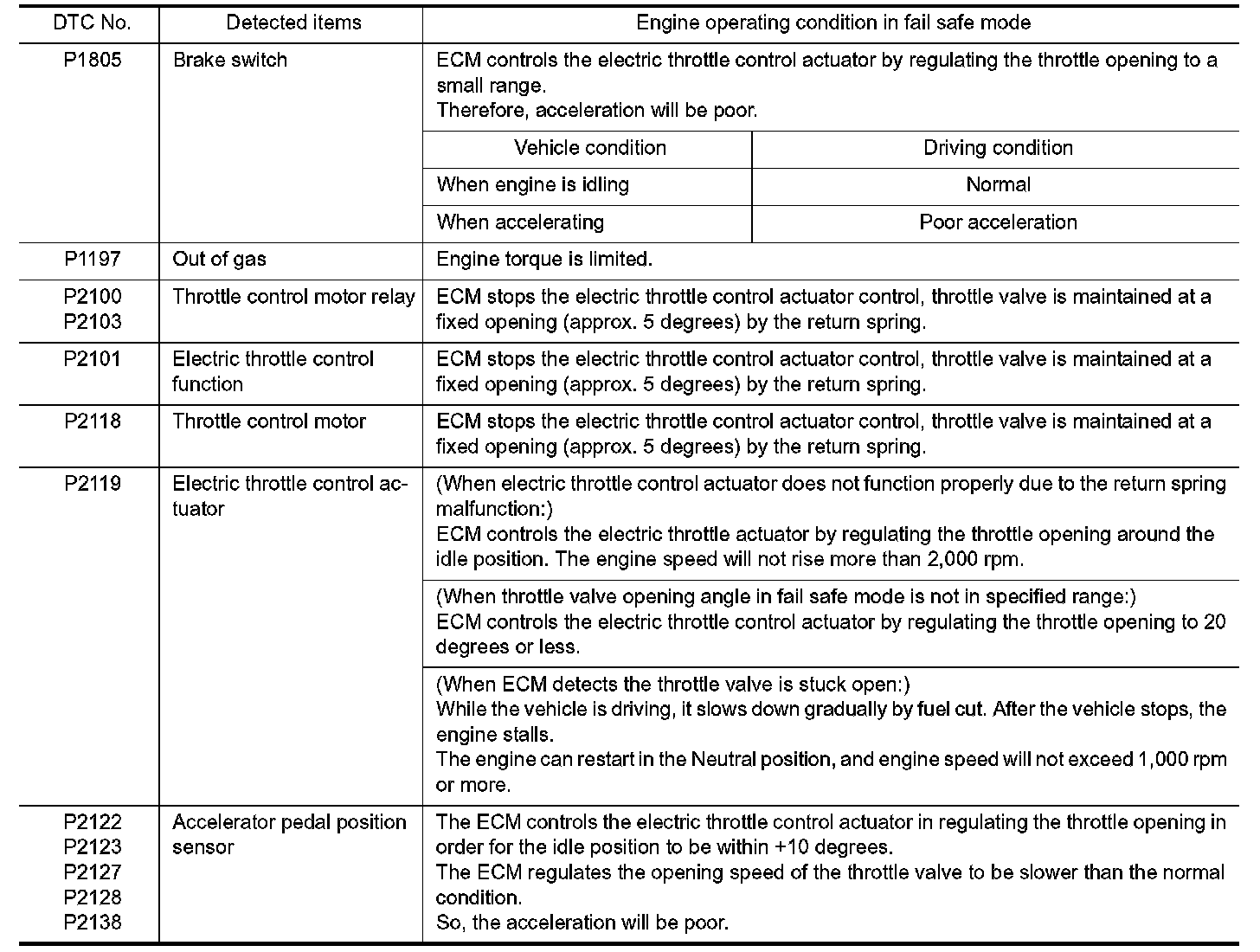

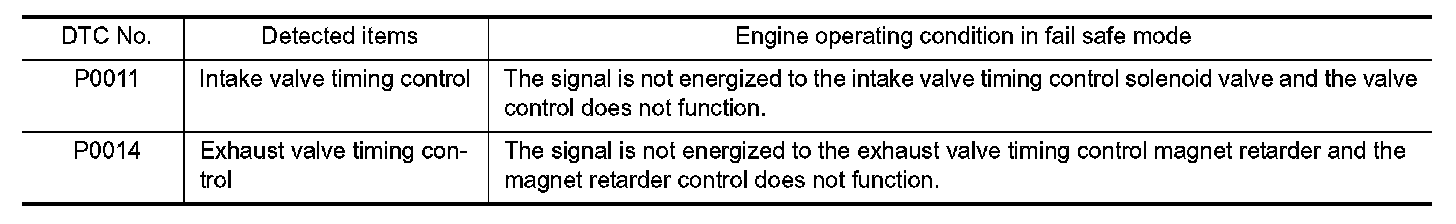

DTC RELATED ITEM
