CAN Diagnostic Support Monitor





TROUBLE DIAGNOSIS


CAN Diagnostic Support Monitor

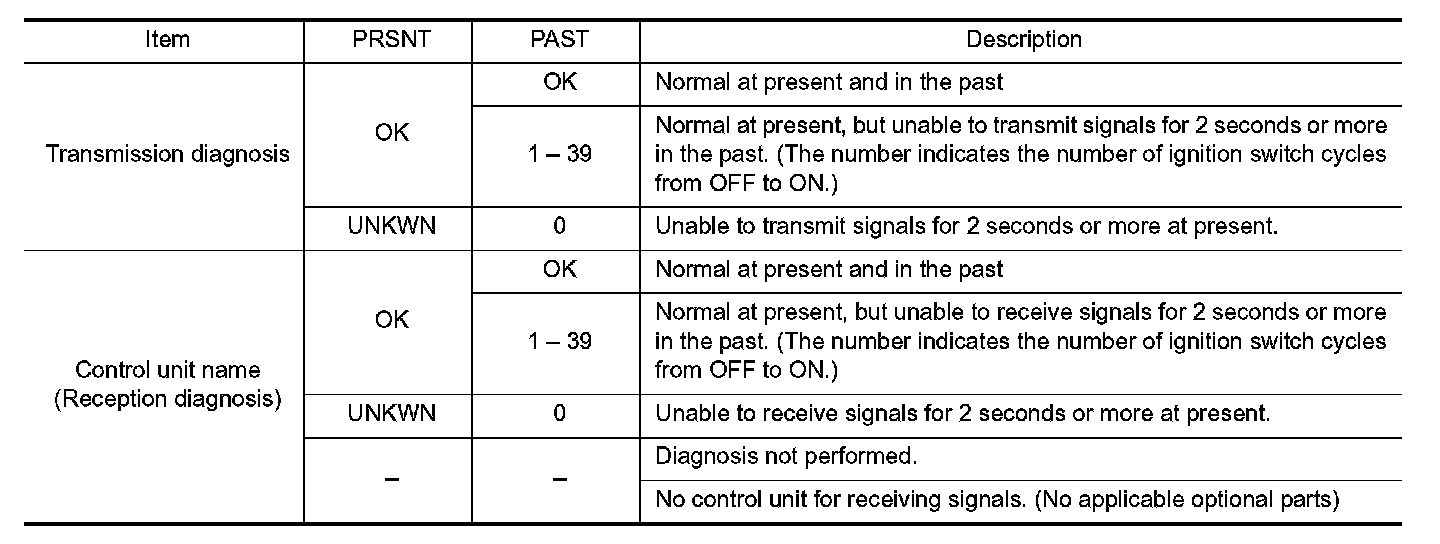

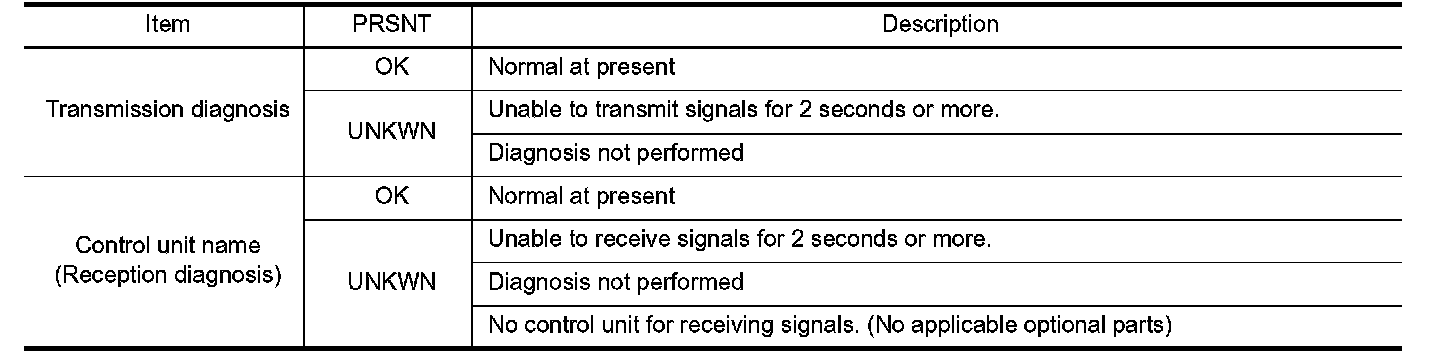

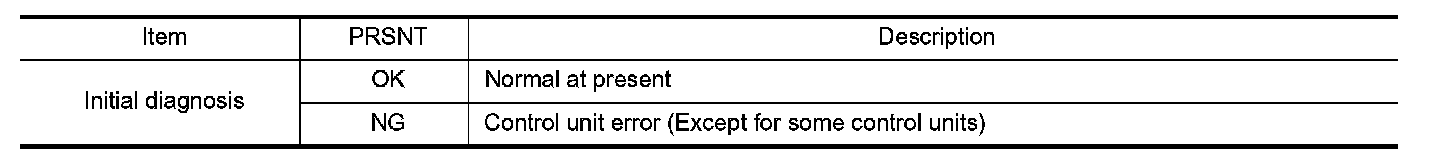

MONITOR ITEM (CONSULT-III)

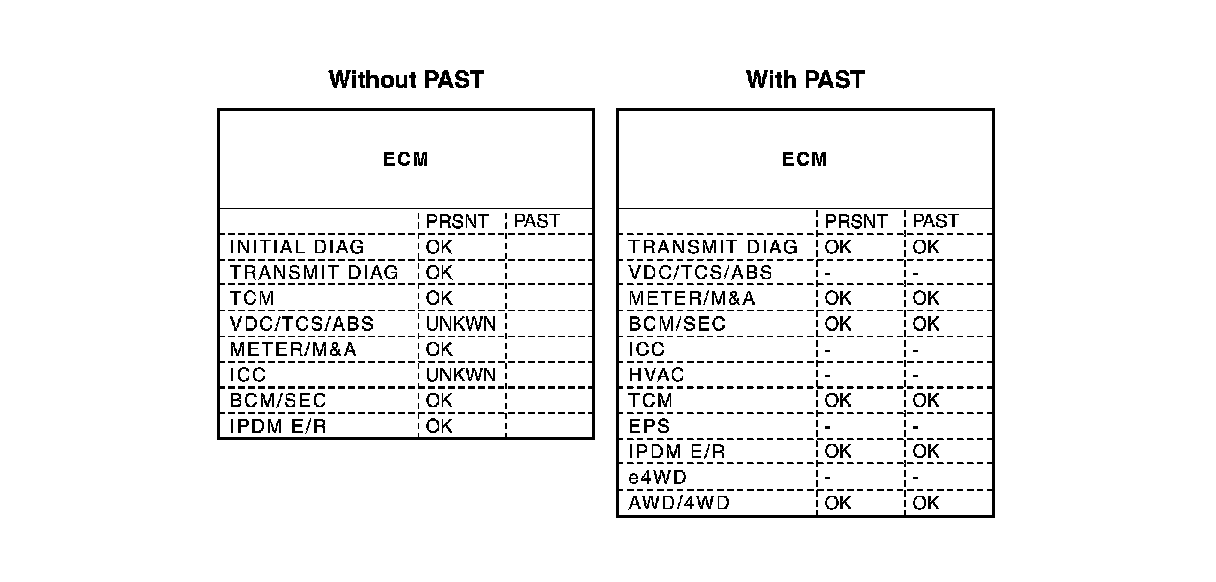

Example: CAN DIAG SUPPORT MNTR indication






Without PAST











With PAST
