Air Conditioning Cut Control
>>
System Diagram
System Diagram
SYSTEM

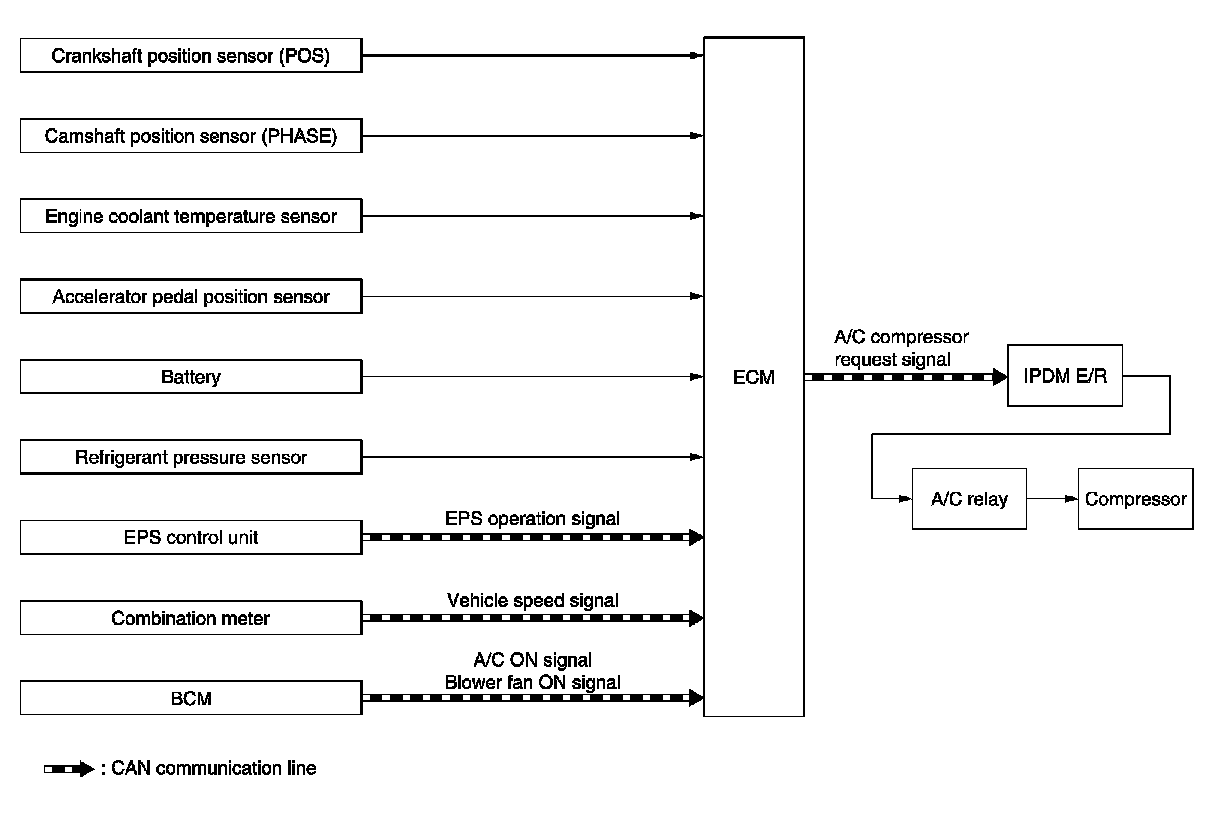

AIR CONDITIONING CUT CONTROL : System Diagram
