Engine Controls - MIL ON/DTC's P0101/P0171/P0172

Classification: EC11-010

Reference: NTB11-020

Date: February 28, 2011

2011 JUKE;
MIL "ON" WITH DTC P0101/P0171/P0172 STORED

APPLIED VEHICLES: 2011 Juke (F15)

APPLIED VINS:
2WD vehicles built before JN8AF(*)MR(*)BT 007902
AWD vehicles built before JN8AF(*)MV(*)BT 011496

APPLIED DATES: Vehicles built before November 12, 2010

SERVICE INFORMATION

If an Applied Vehicle has the MIL "ON" with one or more of the following DTCs stored:

^ P0101

^ P0171

^ P0172

AND

^ there are no drivability issues

Confirm that the correct air cleaner cover and air flow sensor are installed. See below for details and photos.

NOTE:
If you confirm the correct air cleaner cover and air flow sensor are installed, refer to ASIST for further diagnostic information.

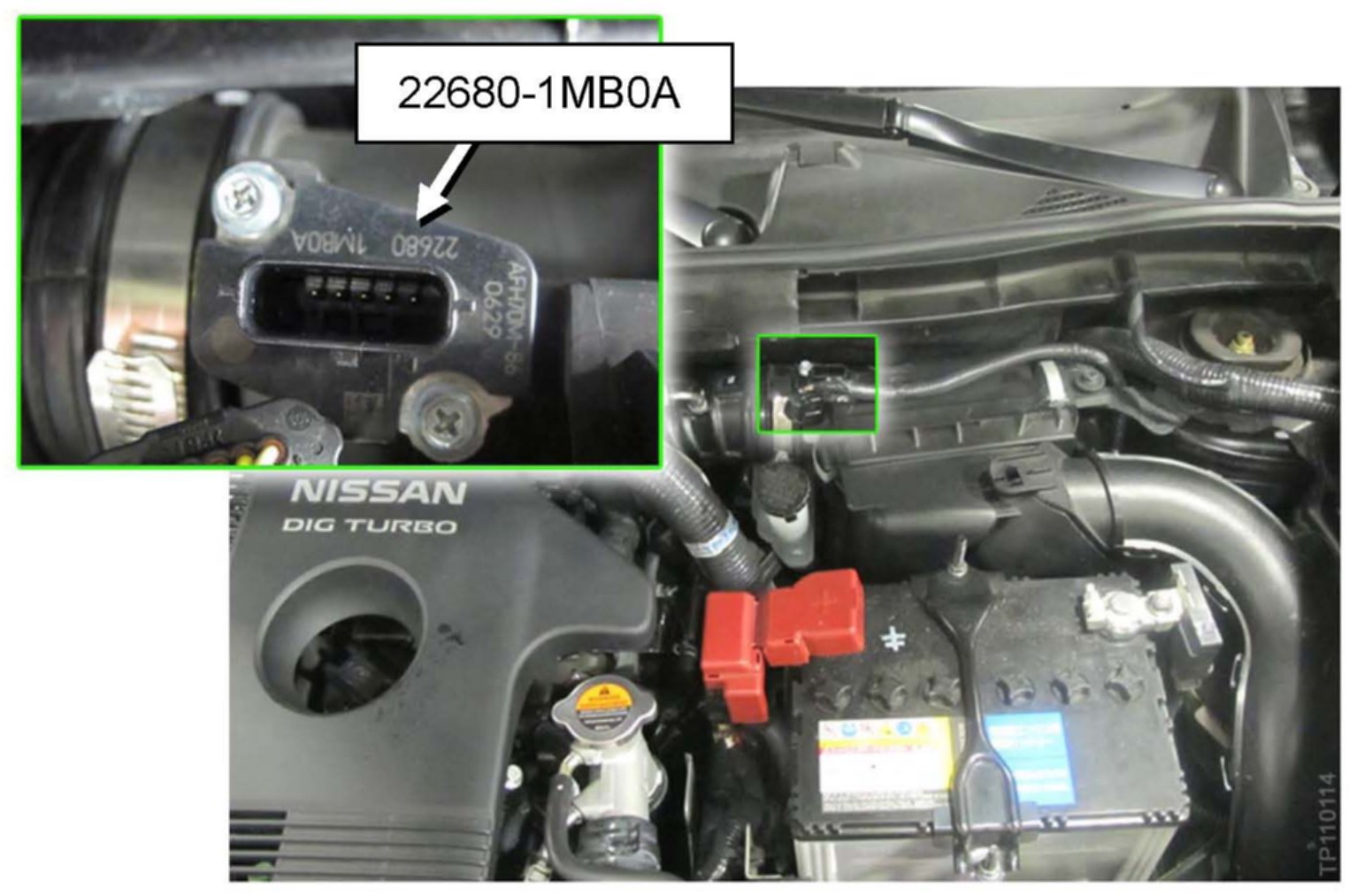

Correct Air Flow Sensor
Part number: 22680-1MB0A





^ The part number is printed on top of the air flow sensor, near the connector.

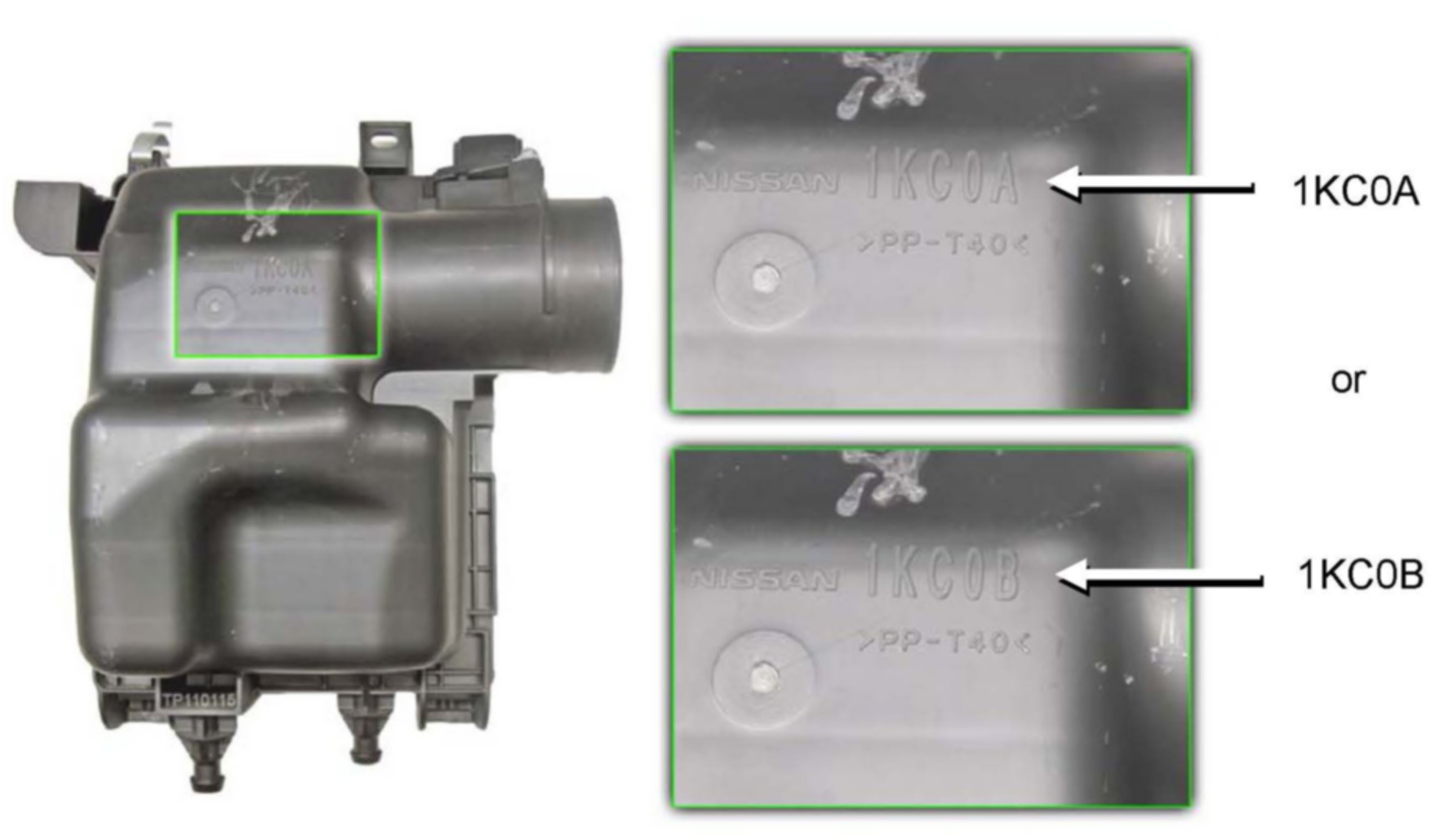

Correct Air Cleaner Cover
Part number: 16526-1KC0A or 16526-1KC0B





^ The air cleaner cover must be removed from the vehicle to view the part number. The last five digits of the part number are molded into the part.
