Interior Lighting System Symptoms





INTERIOR LIGHTING SYSTEM SYMPTOMS

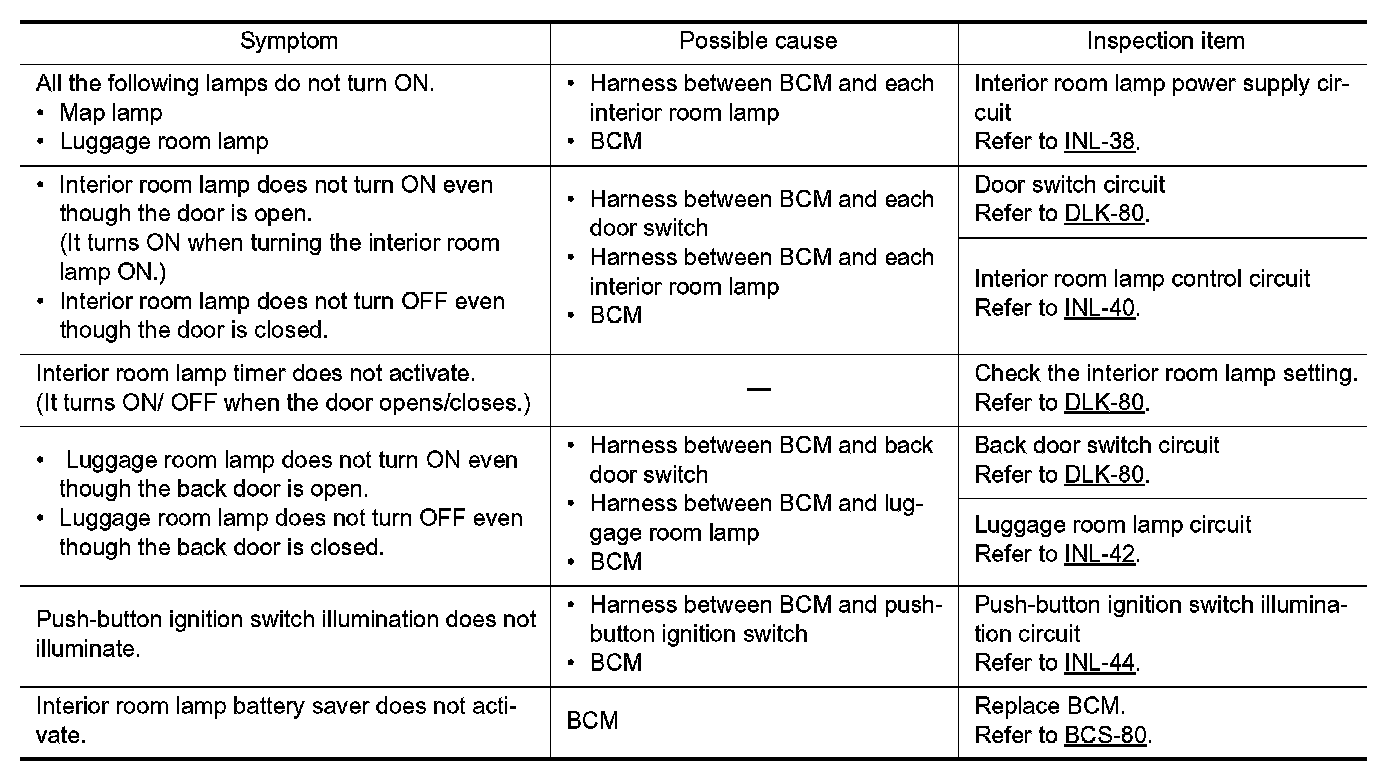

Symptom Table


CAUTION:
Perform the self-diagnosis with CONSULT-III before the symptom diagnosis. Perform the trouble diagnosis if any DTC is detected.
