INT Lamp Without Intelligent Key System





DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)


INT LAMP : CONSULT-III Function (BCM - INT LAMP)

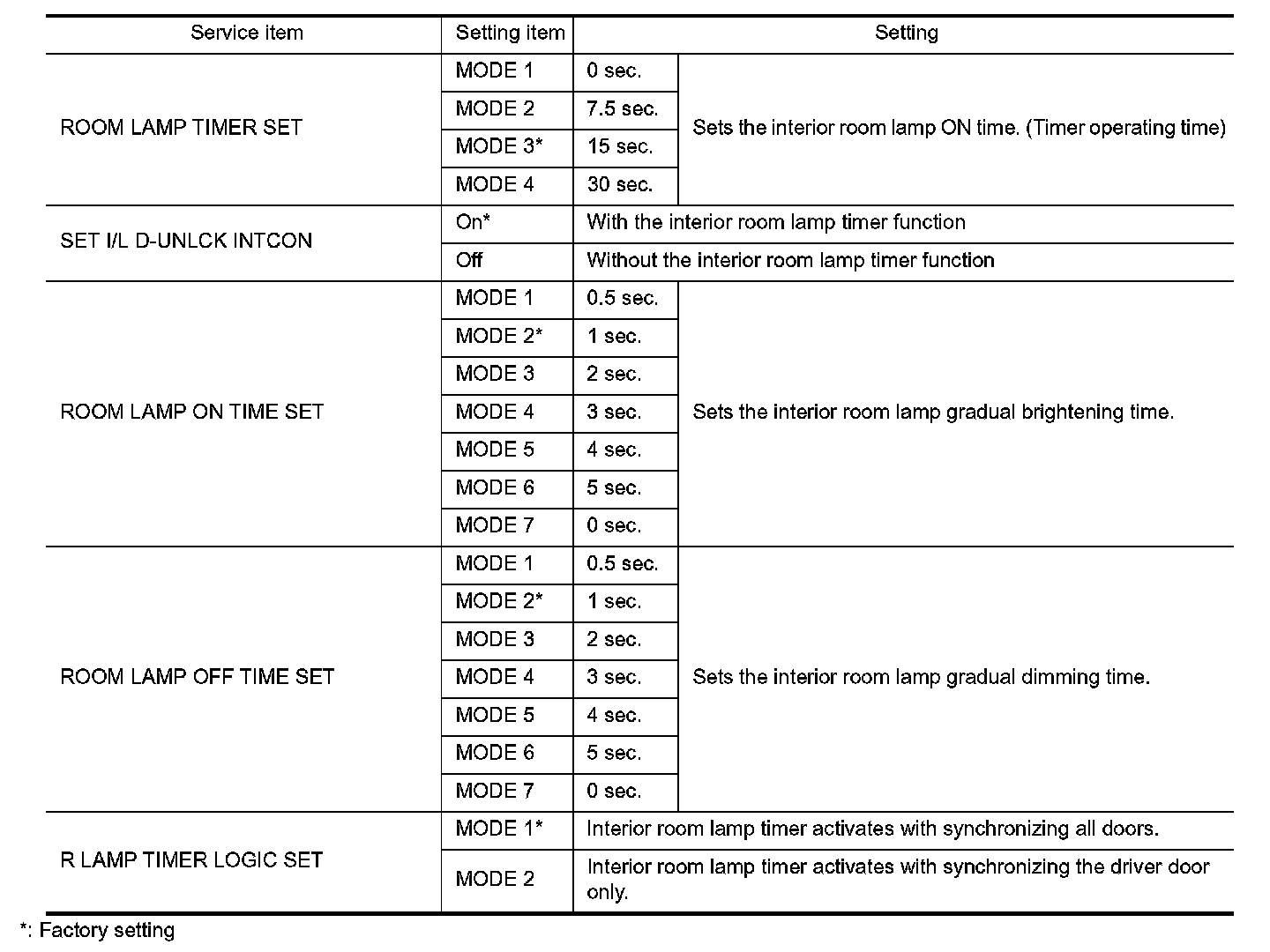

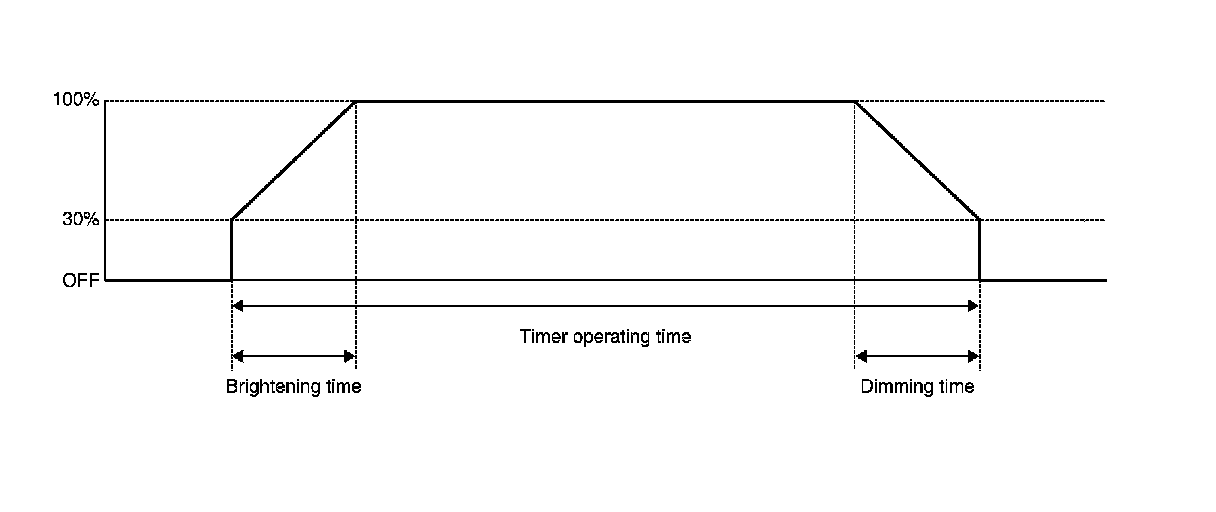

WORK SUPPORT

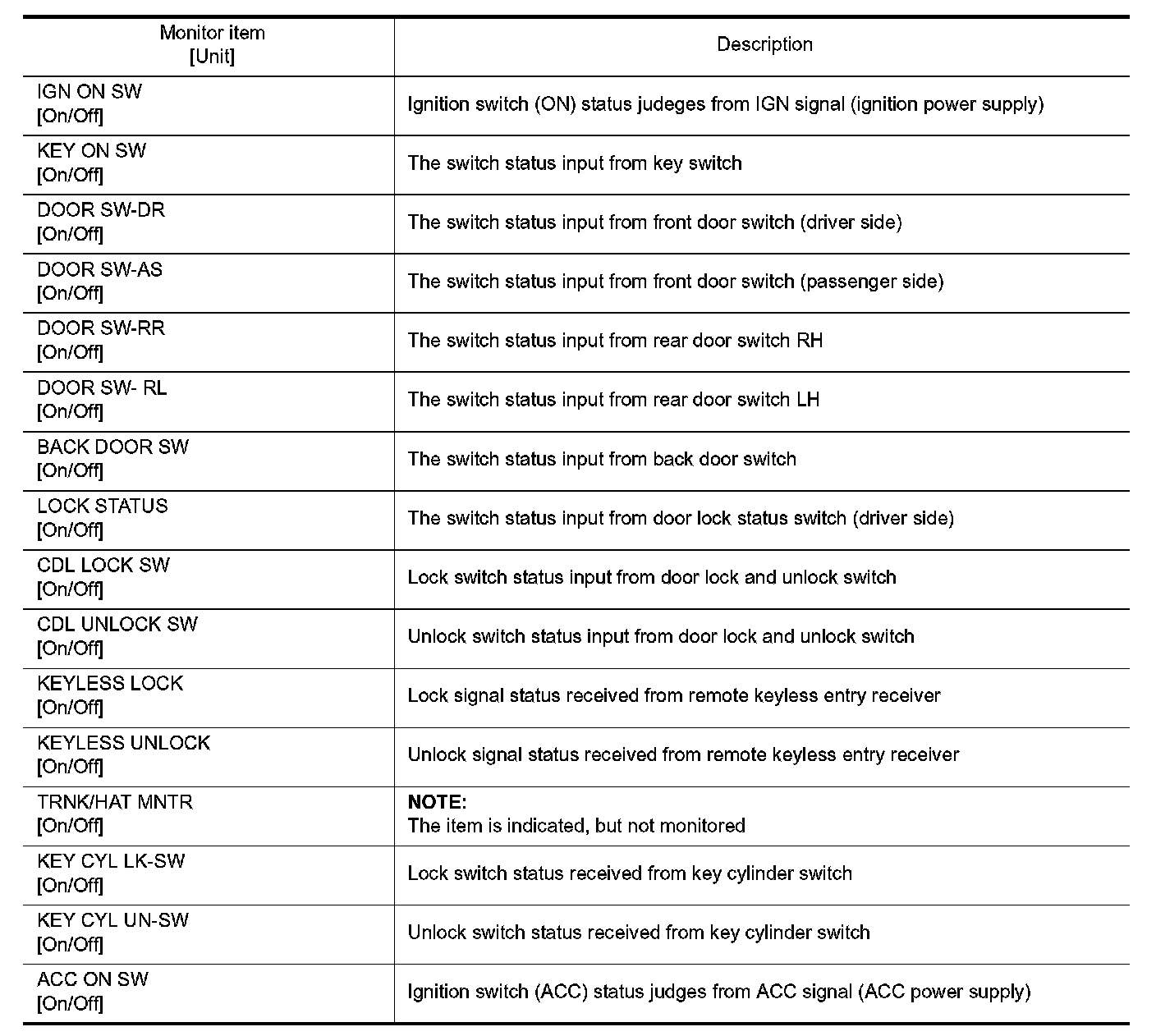

DATA MONITOR

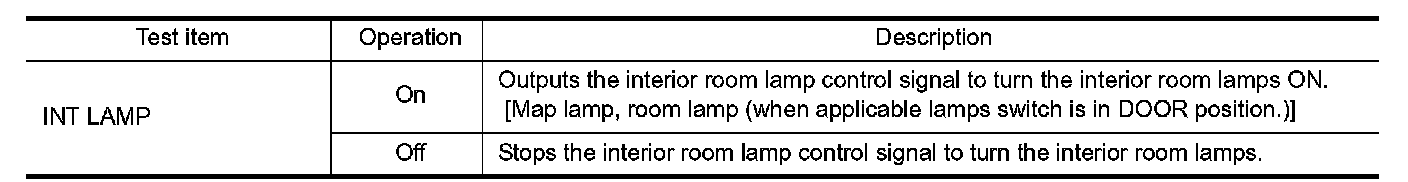

ACTIVE TEST
