Home >> Nissan-Datsun >> 2011 >> Juke FWD L4-1.6L Turbo (MR16DDT) >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Scan Tool Testing and Procedures >> CONSULT-III Function >> Battery Saver Without Intelligent Key System

Battery Saver Without Intelligent Key System





DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)


BATTERY SAVER : CONSULT-III Function (BCM - BATTERY SAVER)

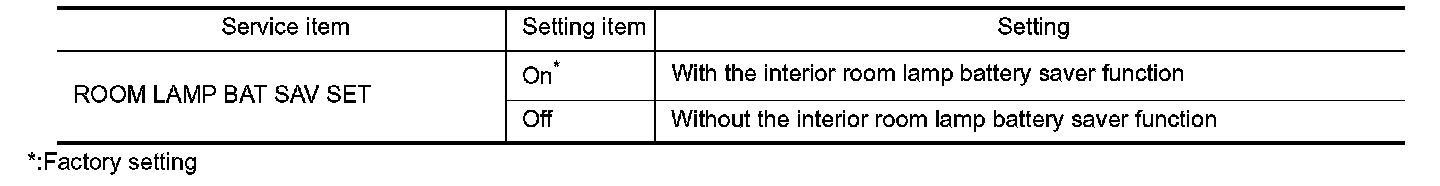

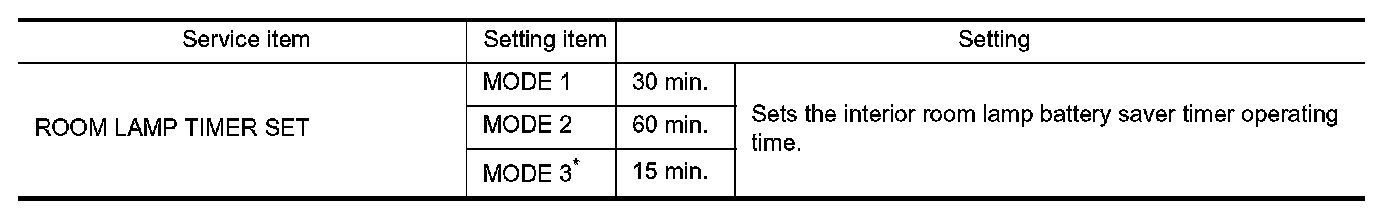

WORK SUPPORT

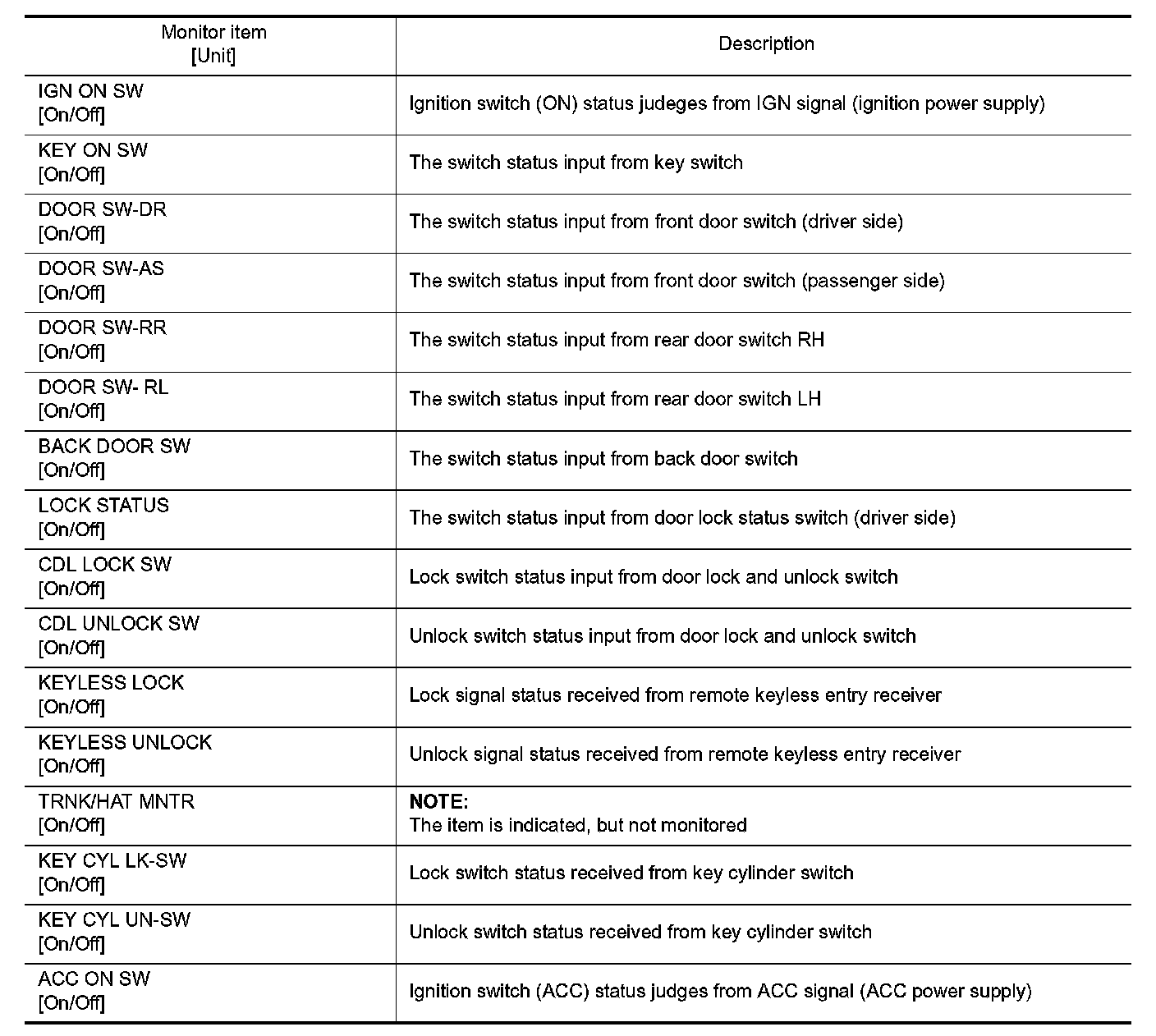

DATA MONITOR






ACTIVE TEST
