Interior Lighting System
Interior Lighting System
COMPONENT PARTS

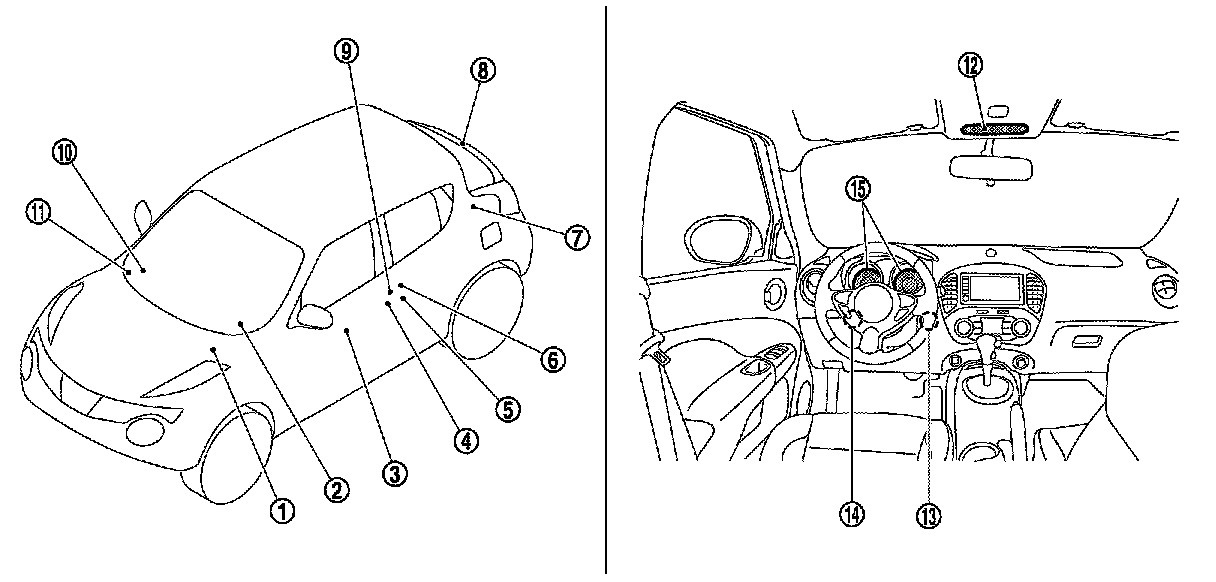

INTERIOR LIGHTING SYSTEM : Component Parts Location
