Removal And Installation

HORN


Removal and Installation


REMOVAL
1. Remove the front center grille and front side grille (LH/RH). Removal And Installation.
2. Disconnect the horn (high and low) connectors.

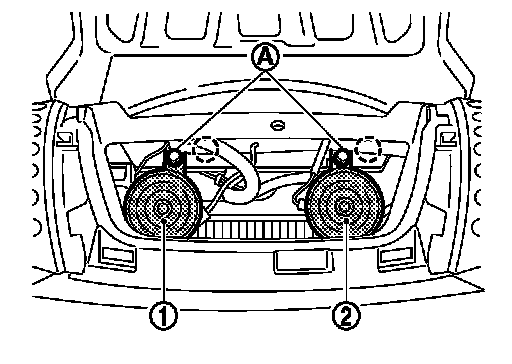

3. Remove the horn mounting bolts (A). Remove the horn high (1) and horn low (2).
4. Remove harness fixing clip from horn bracket.

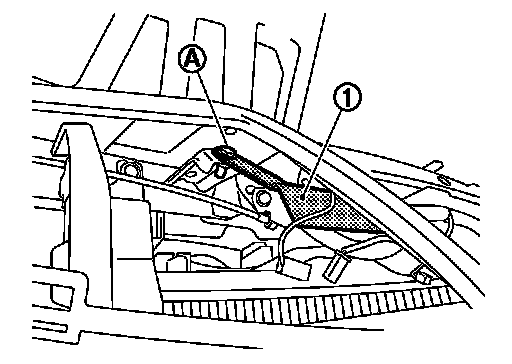

5. Remove horn bracket mounting bolts (LH/RH). Remove horn bracket (1) from radiator core support upper.

INSTALLATION
Install in the reverse order of removal.
