CONSULT-III Function (BCM) With Intelligent Key System

DIAGNOSIS SYSTEM (BCM) (WITH INTELLIGENT KEY SYSTEM)


AIR PRESSURE MONITOR : CONSULT-III Function (BCM - AIR PRESSURE MONITOR)

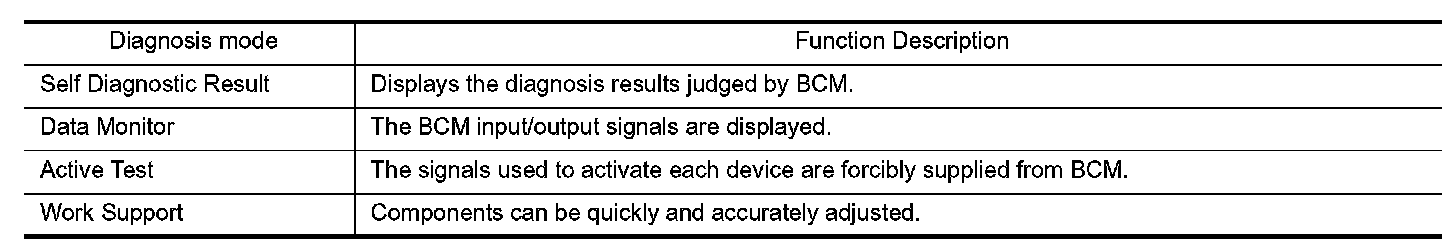

APPLICATION ITEM
CONSULT-III performs the following functions via CAN communication with BCM.






SELF DIAGNOSTIC RESULT
Testing and Inspection.

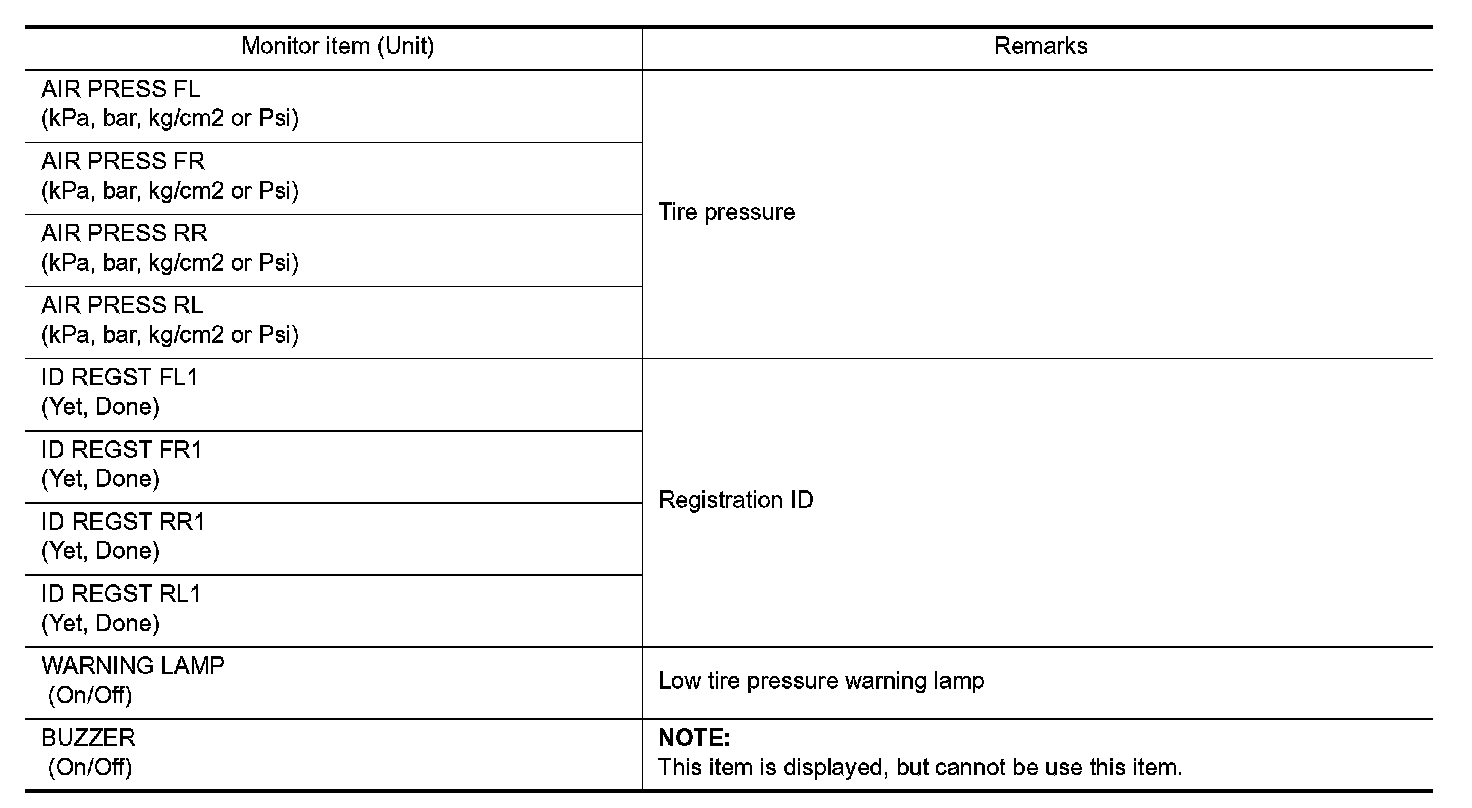

DATA MONITOR MODE

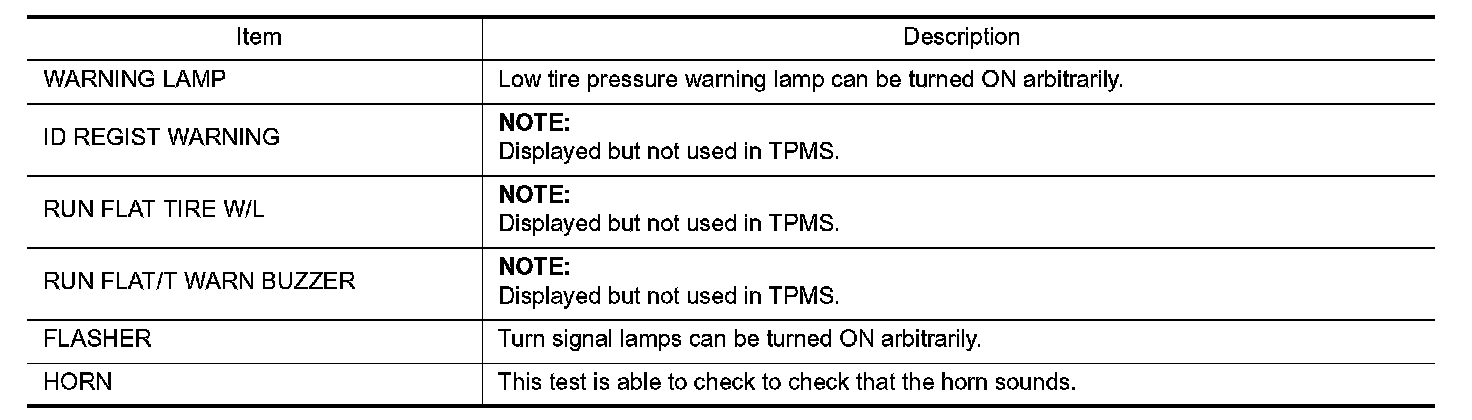

ACTIVE TEST MODE

NOTE:
After completing the work below, perform an active test.
1. Check ID registration state and perform self-diagnosis.
2. Erase the self-diagnosis result history.

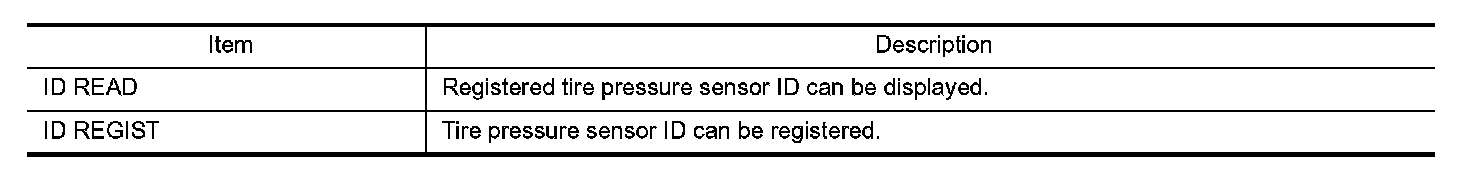

WORK SUPPORT
