System Description

SYSTEM


PARKING BRAKE RELEASE WARNING CHIME : System Description

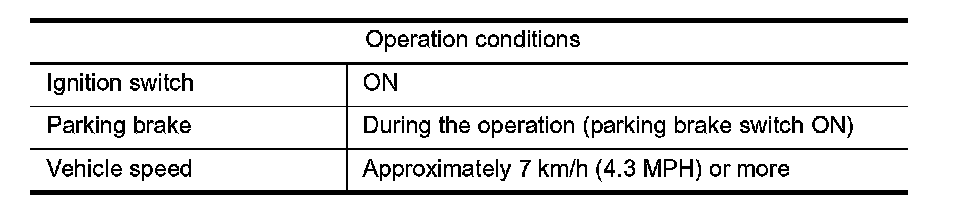

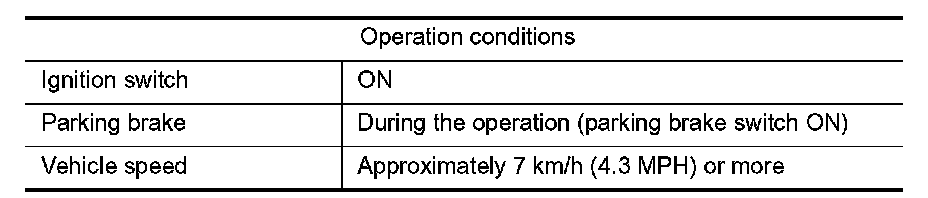

WARNING OPERATION CONDITIONS
If all of the following conditions are fulfilled.

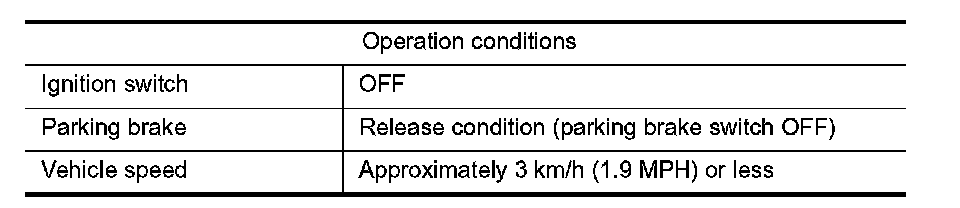

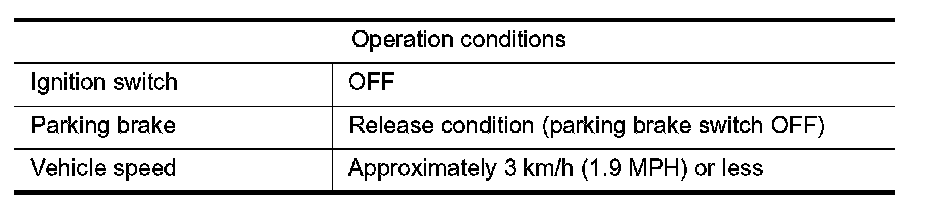

WARNING CANCEL CONDITIONS
Warning is canceled if any of the following conditions are fulfilled.

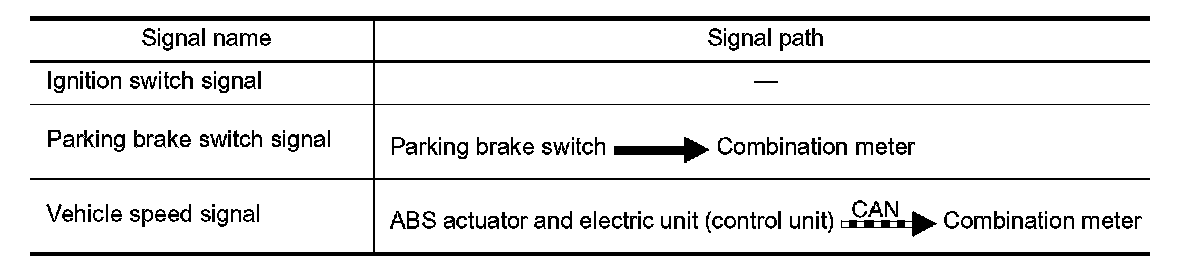

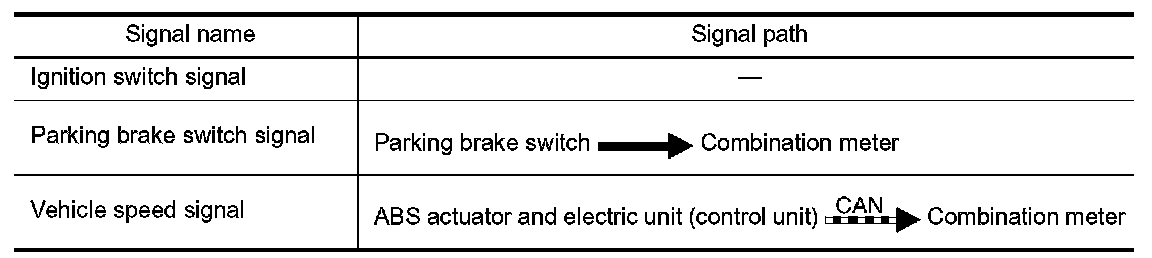

SIGNAL PATH
Combination meter sounds integrated buzzer when it judges that parking brake release warning chime is necessary from signals below.

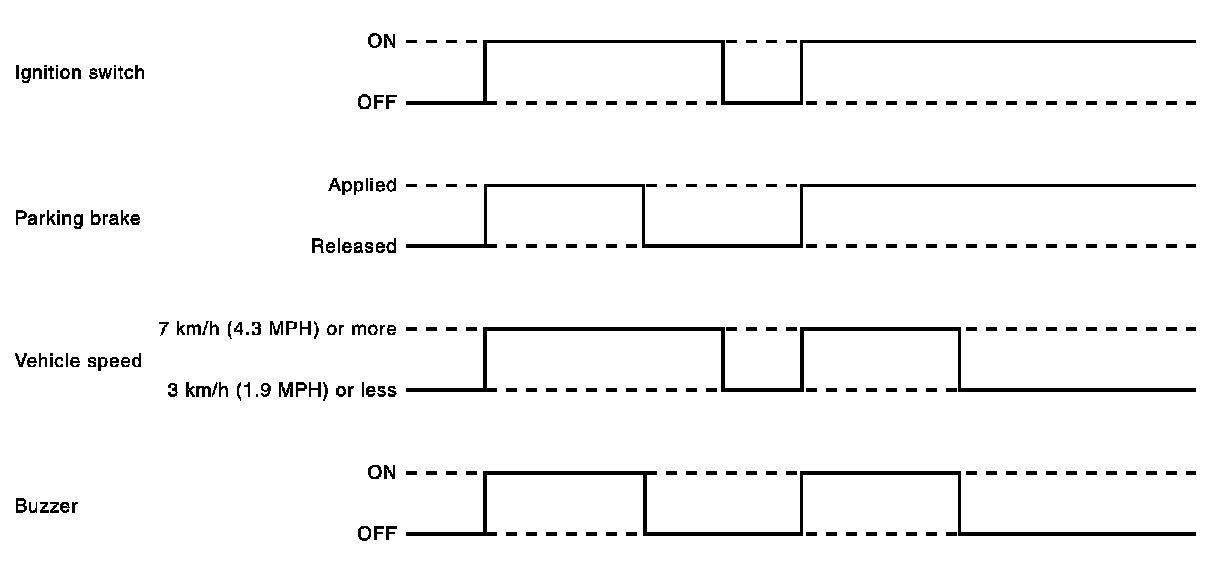

TIMING CHART

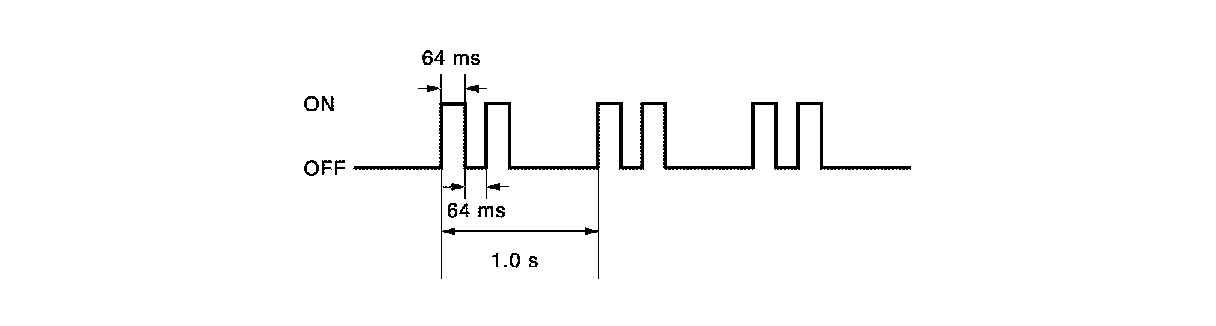

SOUND SPECIFICATION
