Fail Safe





COMBINATION METER


Fail-Safe


FAIL-SAFE

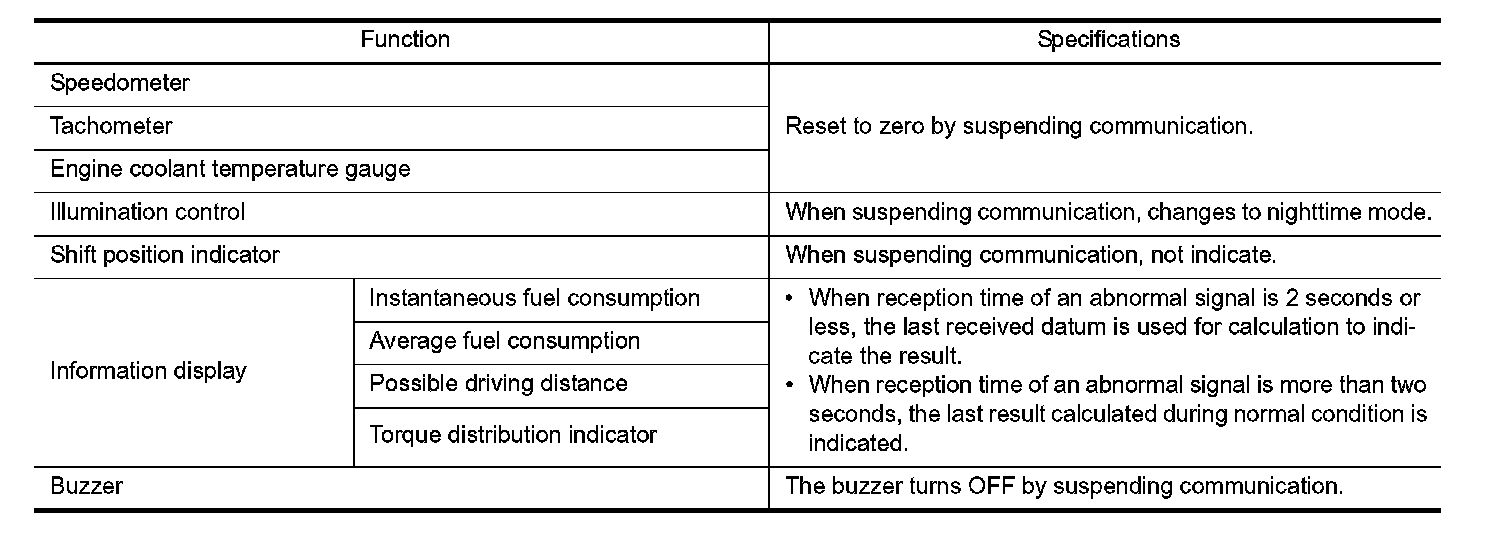

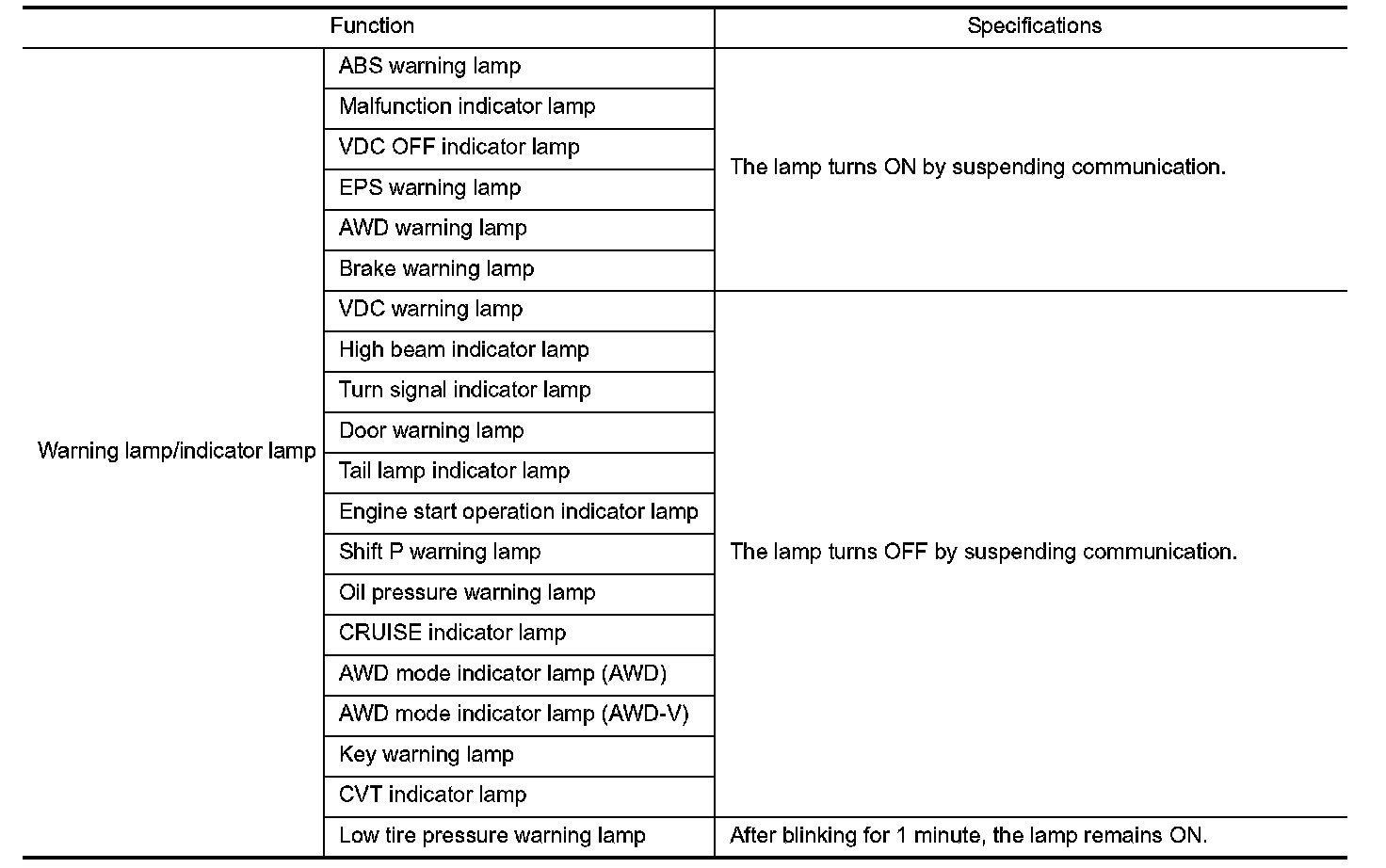

The combination meter activates the fail-safe control if CAN communication with each unit is malfunctioning.
