Manual Air Conditioning





DIAGNOSIS SYSTEM (BCM)


AIR CONDITIONER : CONSULT-III Function (BCM - AIR CONDITIONER) (Manual A/ C)

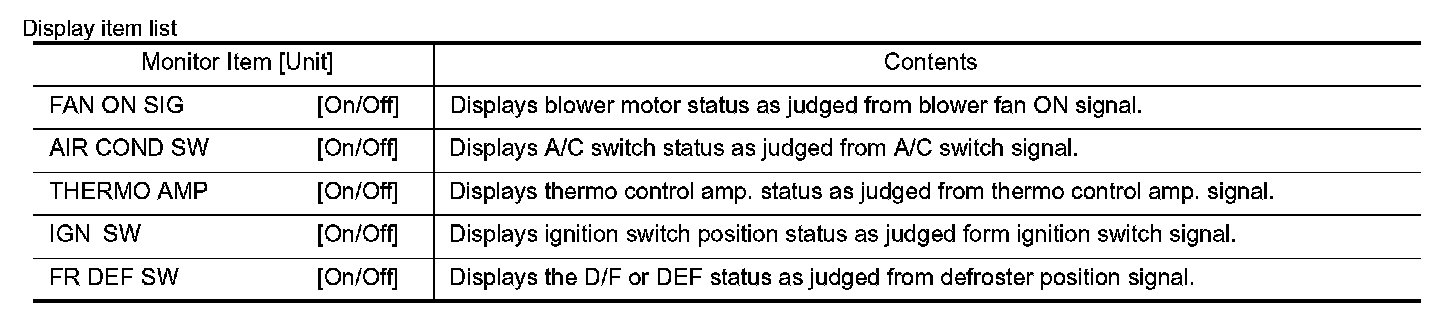

DATA MONITOR

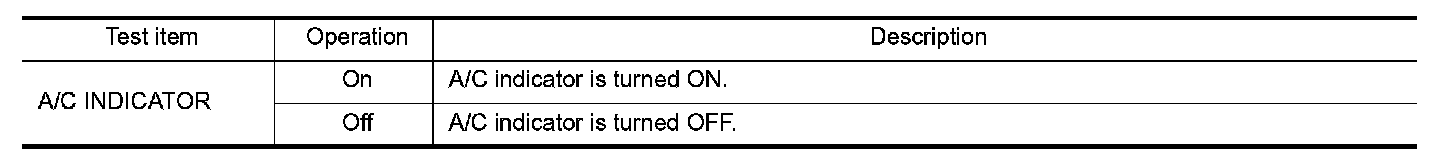

ACTIVE TEST
