Reference Value





A/C AUTO AMP.


Reference Value

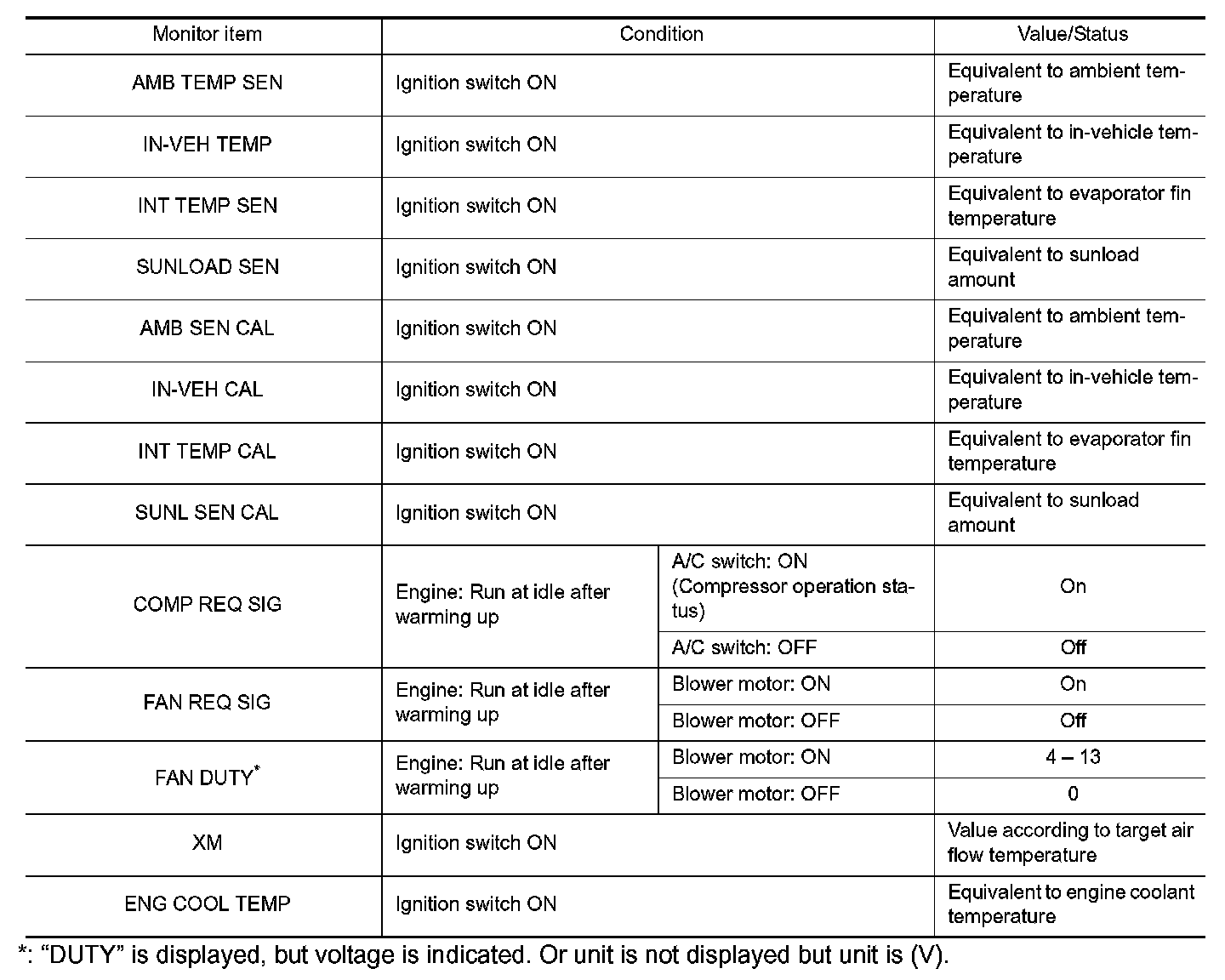

CONSULT-III DATA MONITOR REFERENCE VALUES

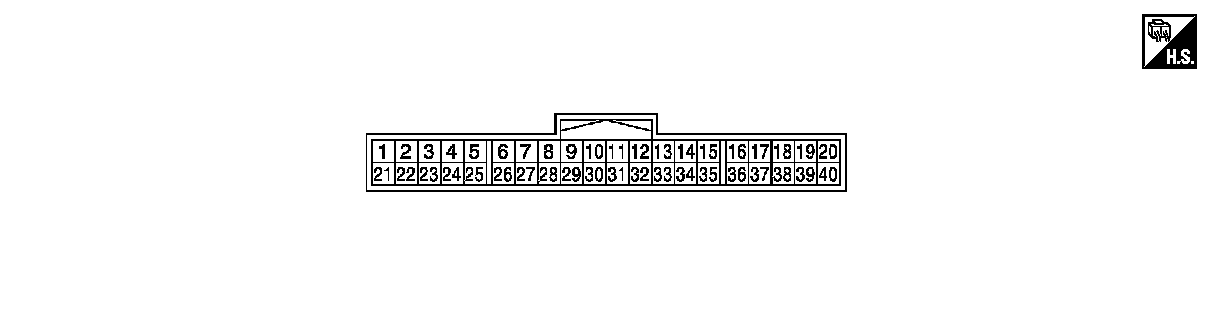

TERMINAL LAYOUT

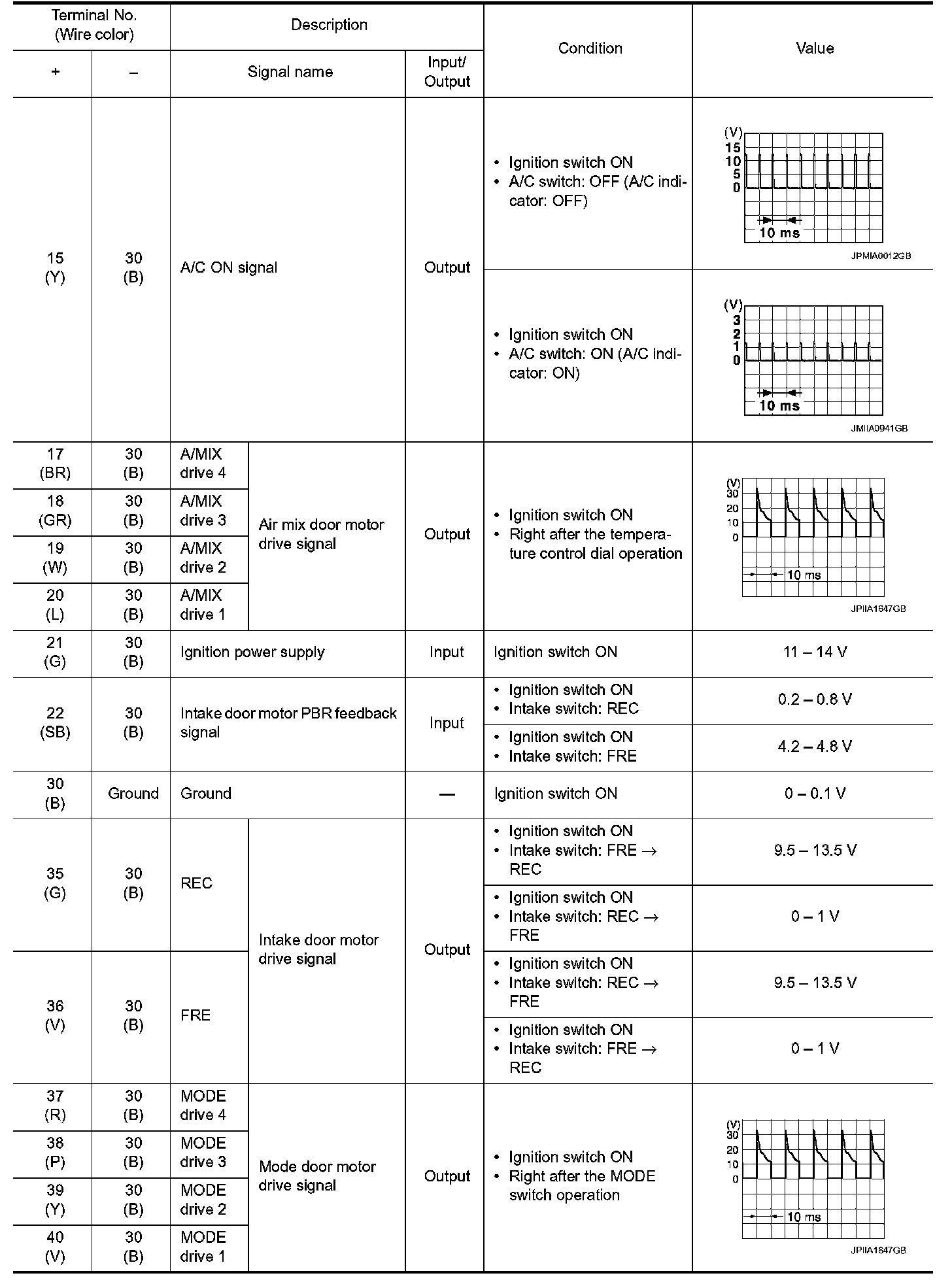

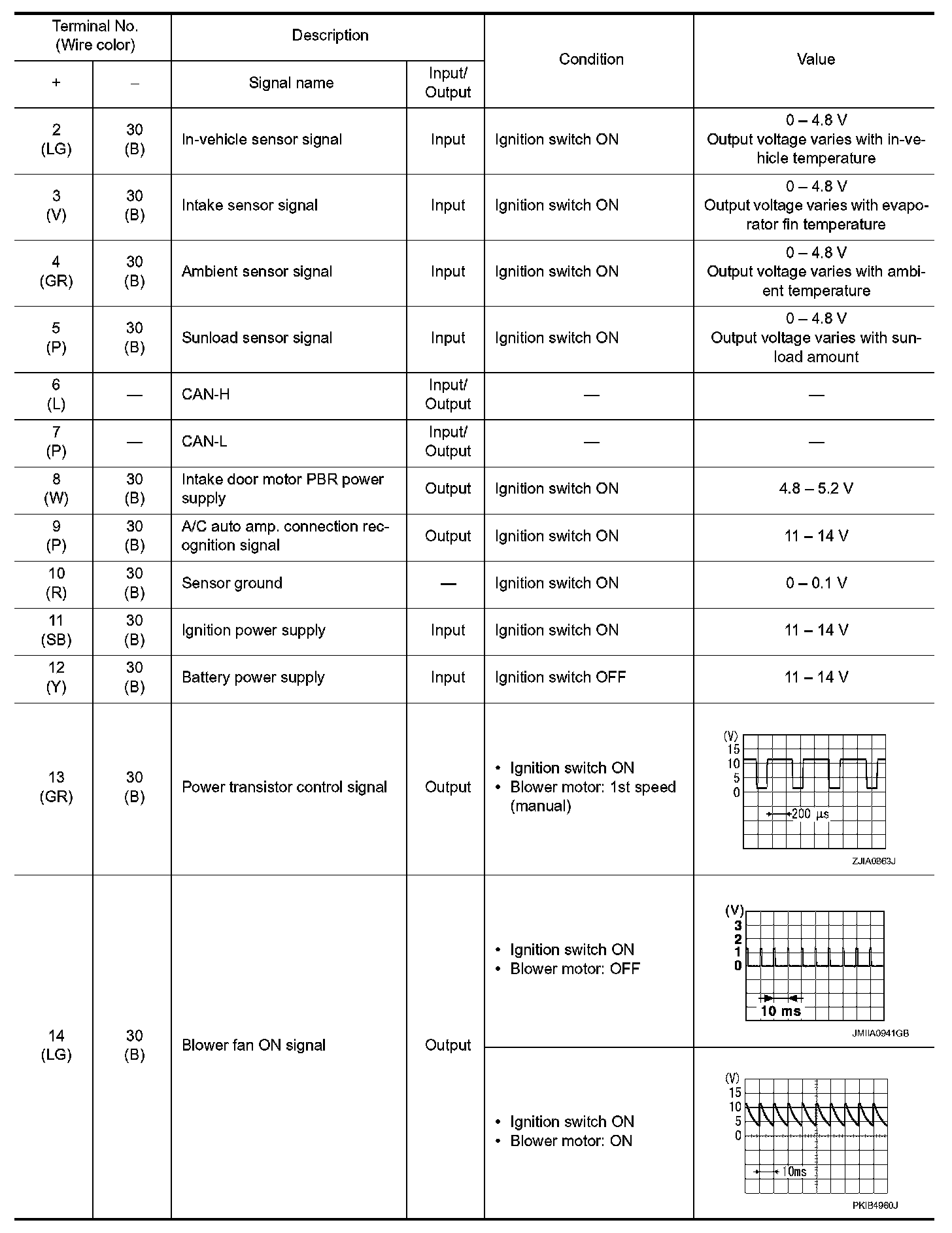

PHYSICAL VALUES
