Ambient Temperature Sensor / Switch HVAC: Service and Repair

AMBIENT SENSOR


Removal and Installation


REMOVAL
1. Remove bumper fascia assembly. Removal And Installation.

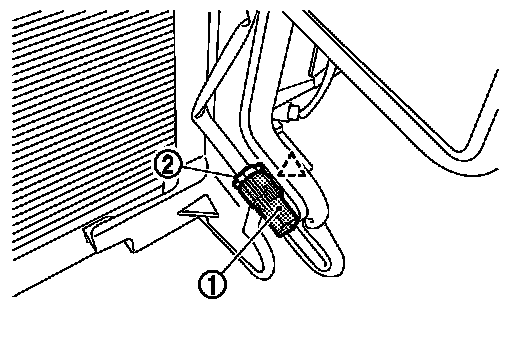

Broken Triangle : Pawl

2. Disengage fixing pawl, and then remove ambient sensor (1) from air guide RH.

3. Disconnect ambient sensor connector (2), and then remove ambient sensor.

INSTALLATION
Install in the reverse order of removal.
