Automatic Air Conditioner System
Automatic Air Conditioner System

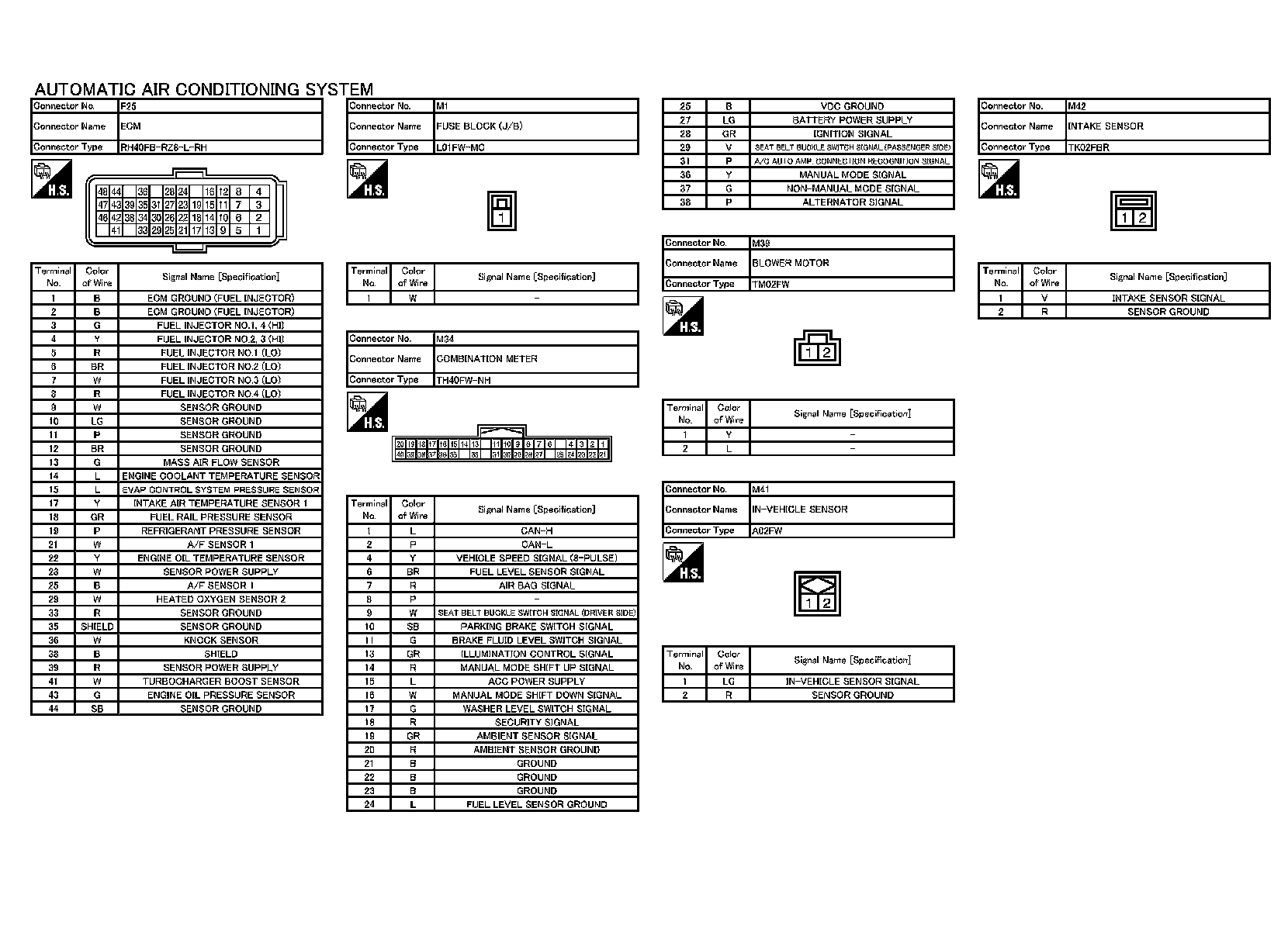

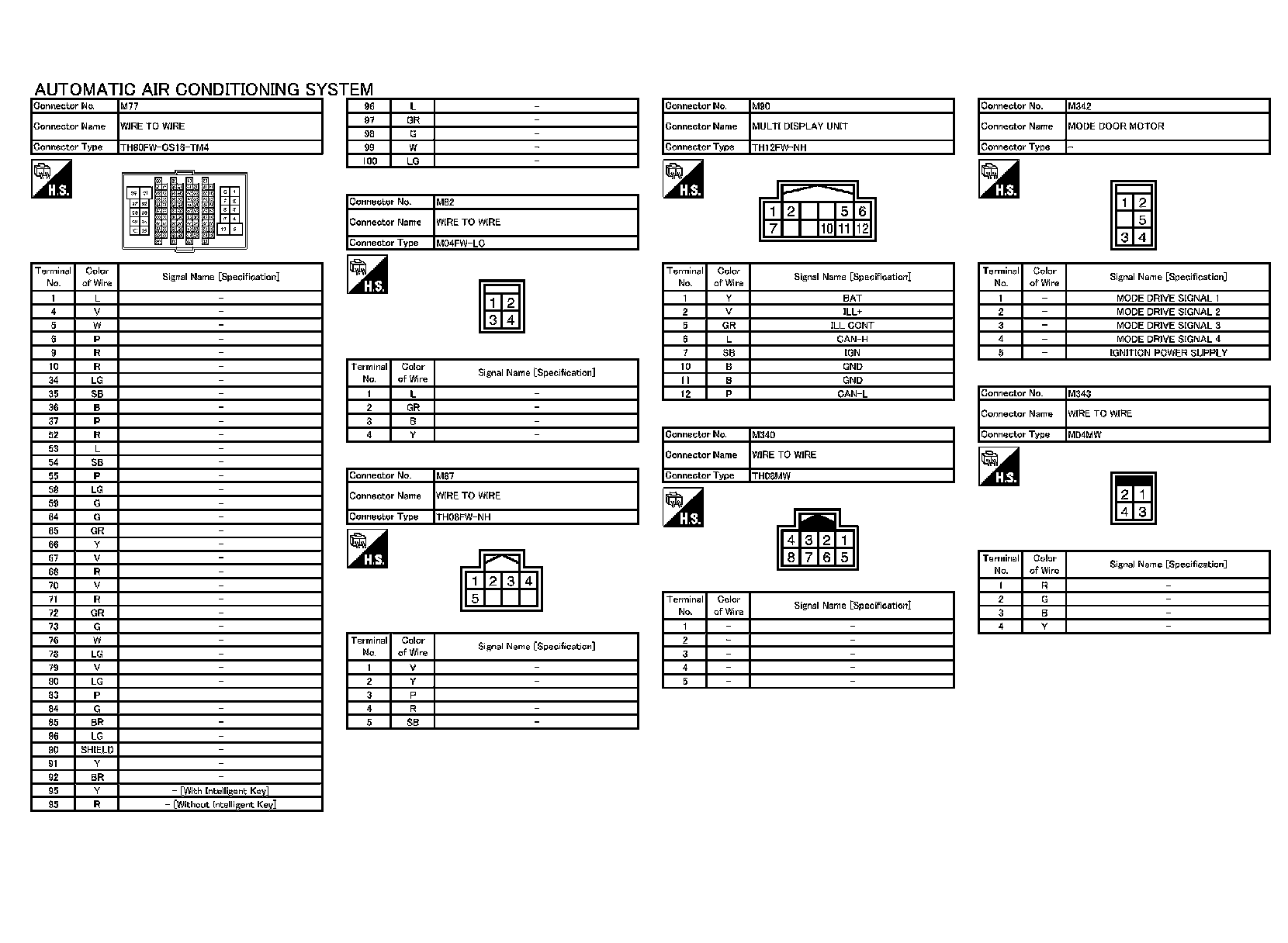

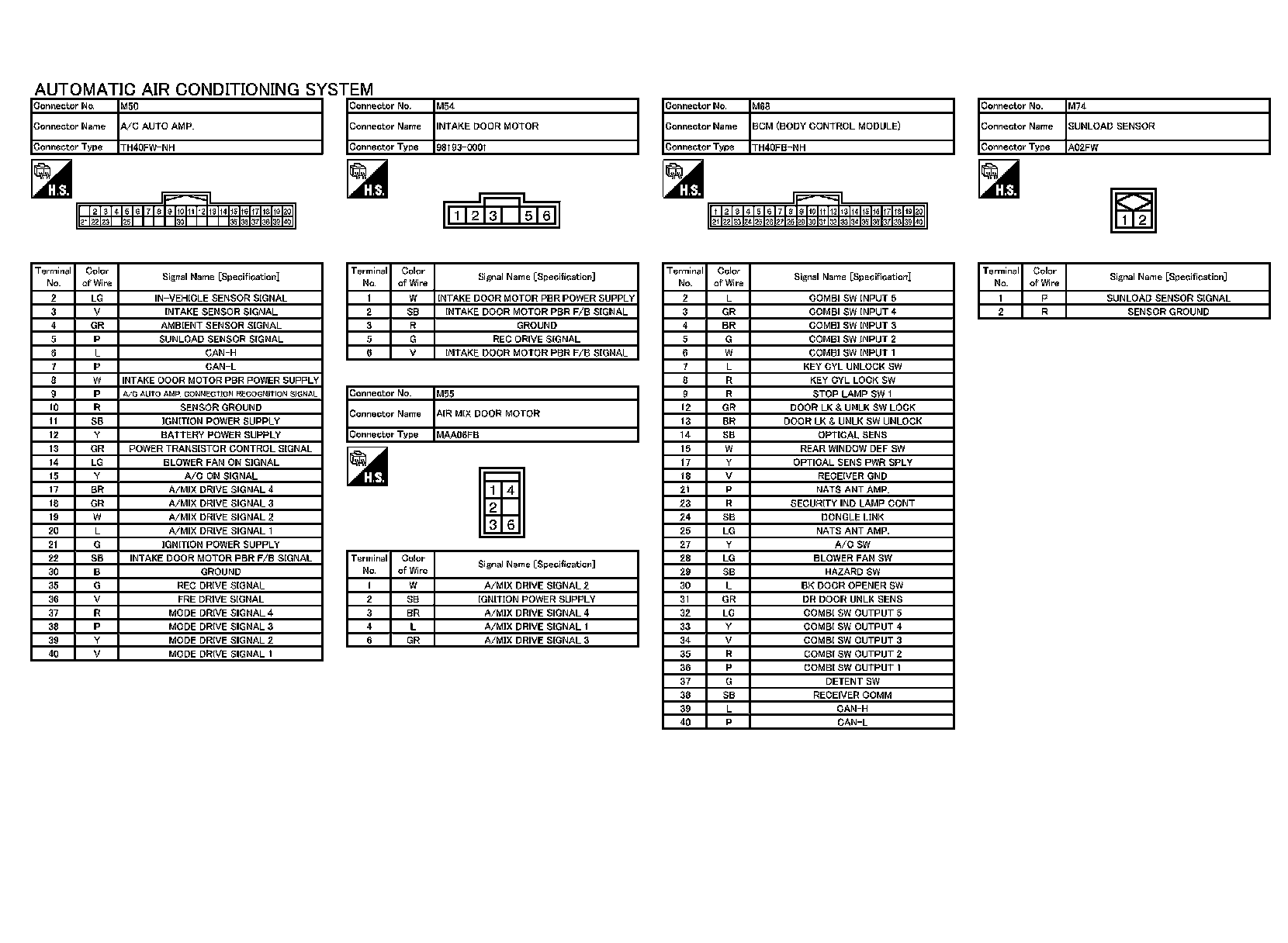

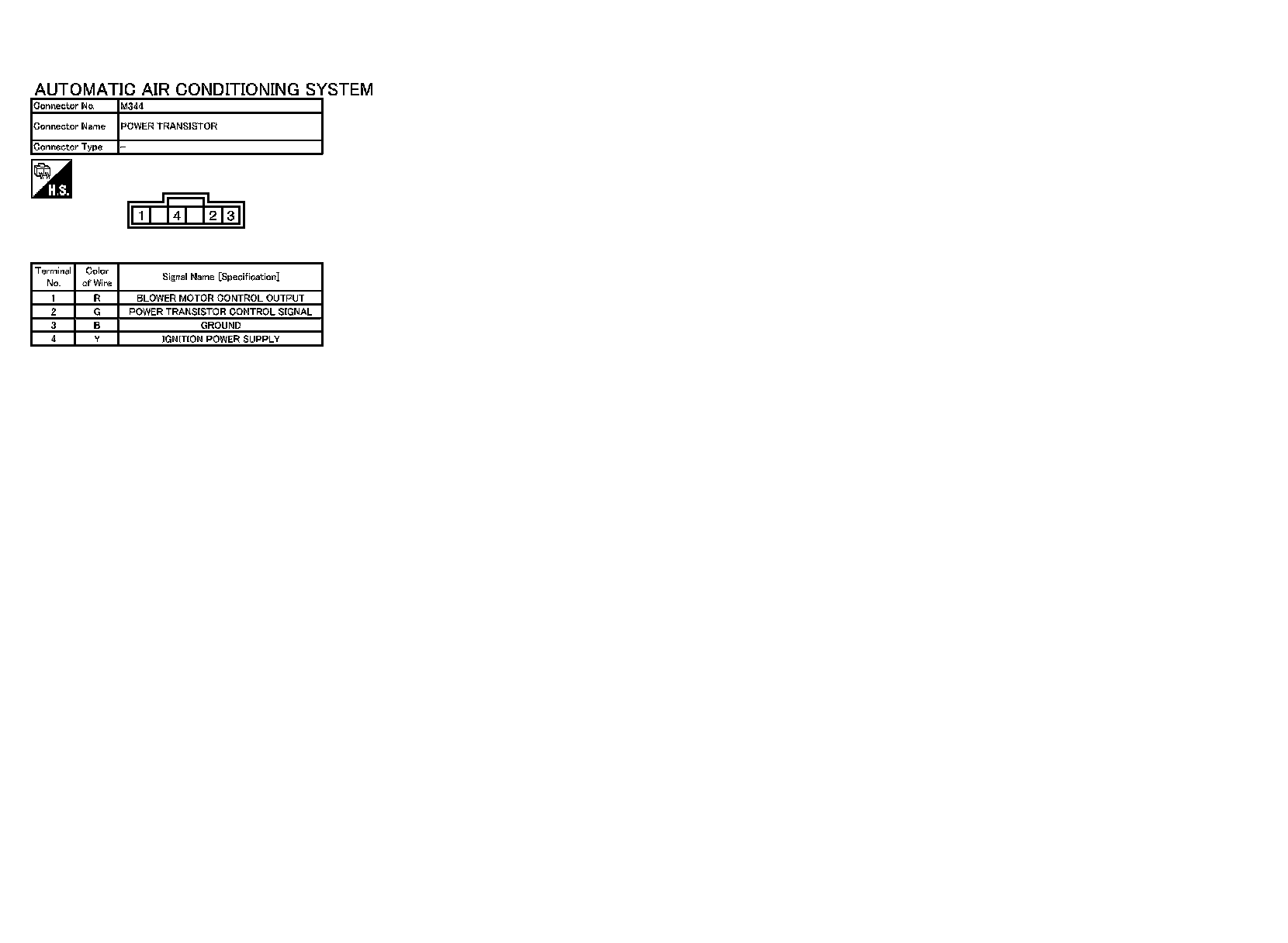

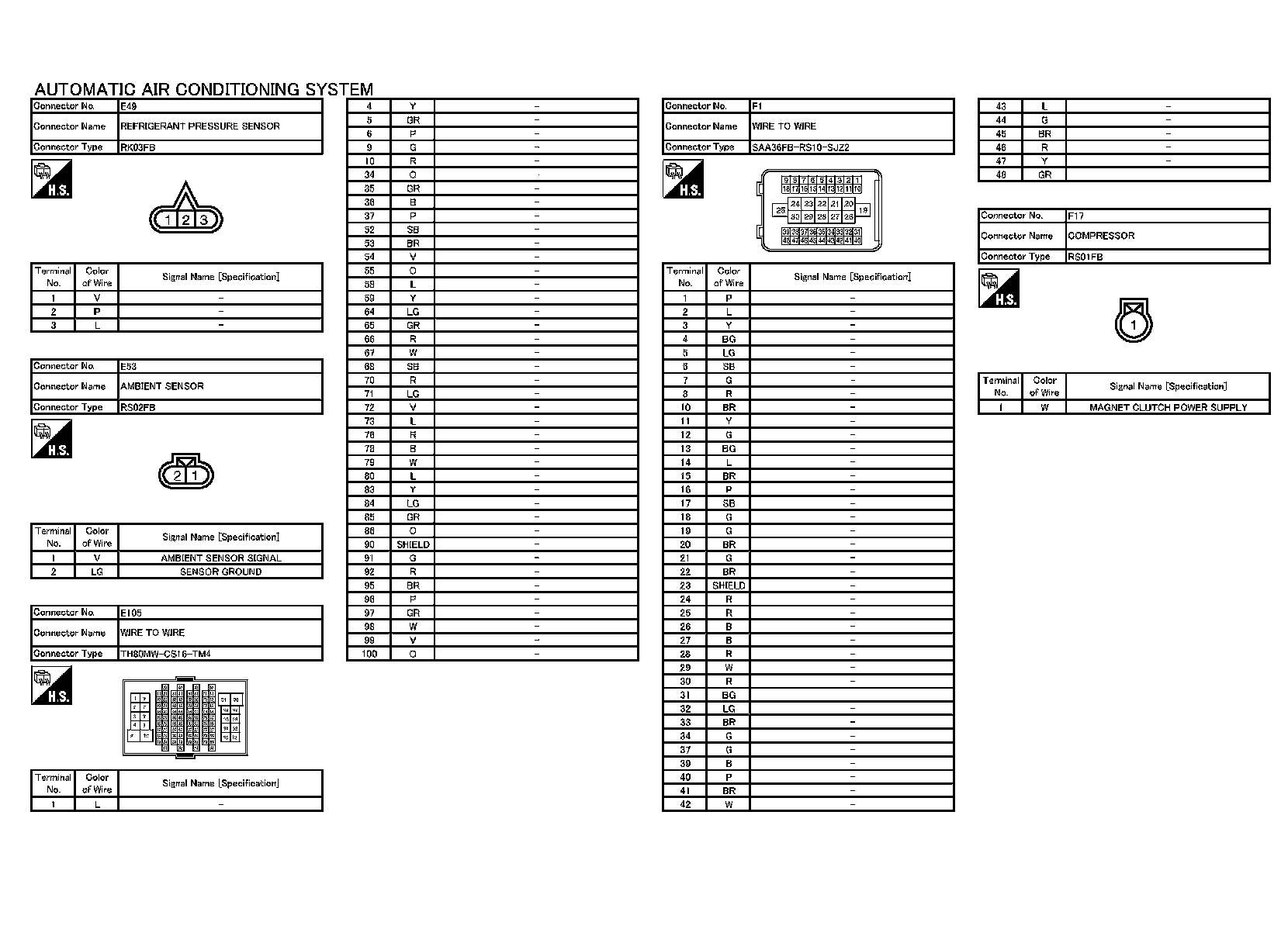

AUTOMATIC AIR CONDITIONING SYSTEM

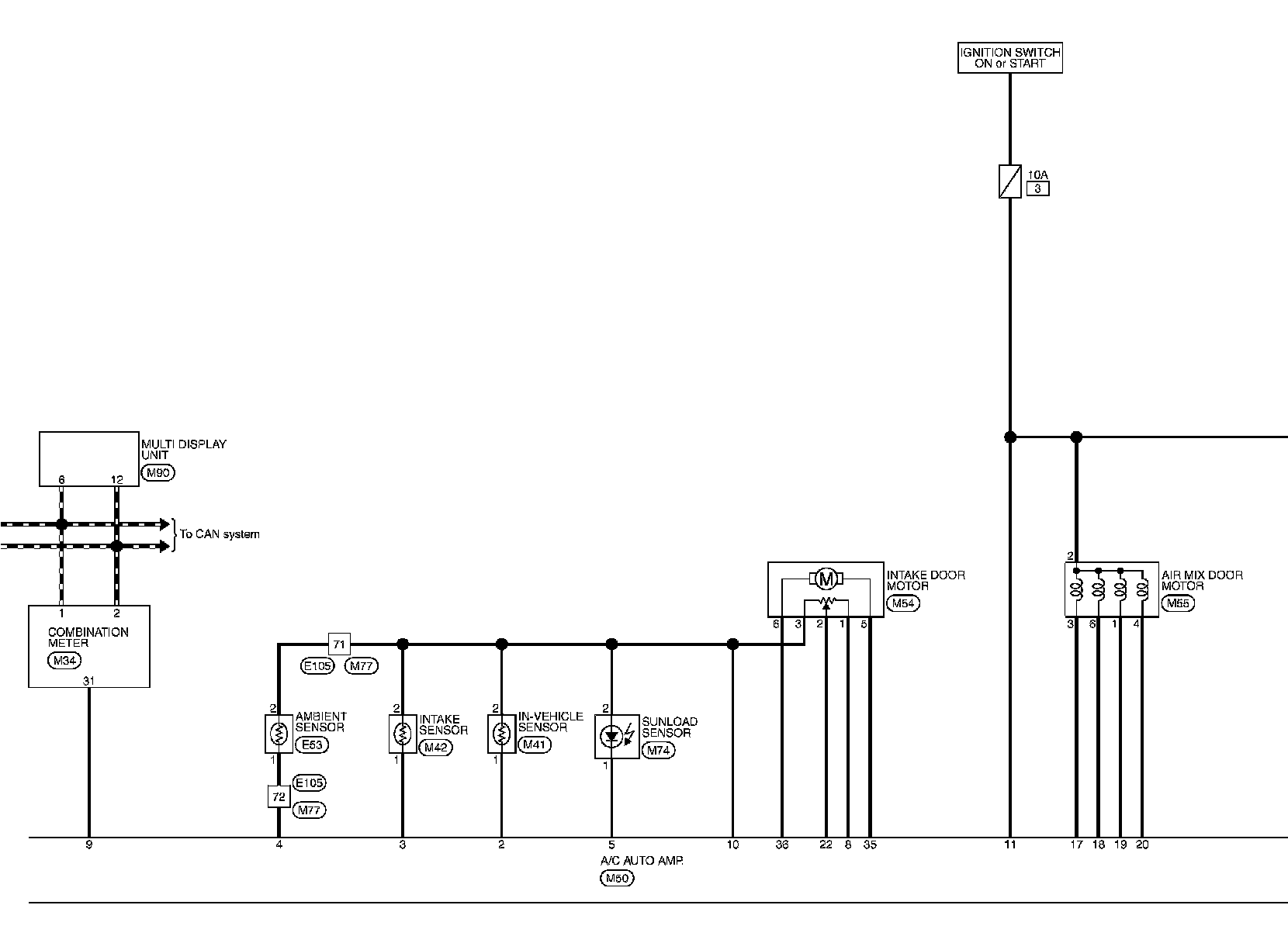

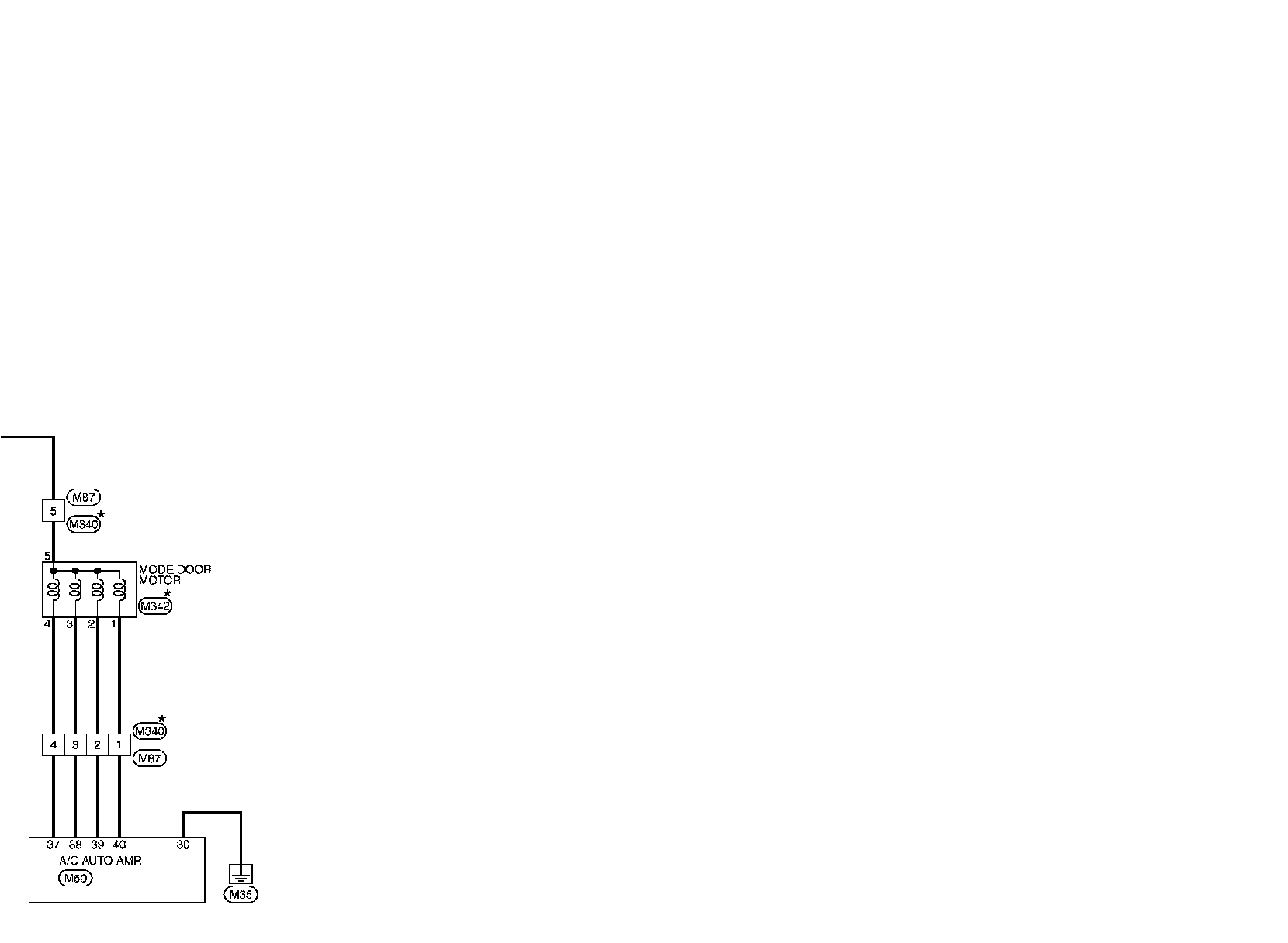

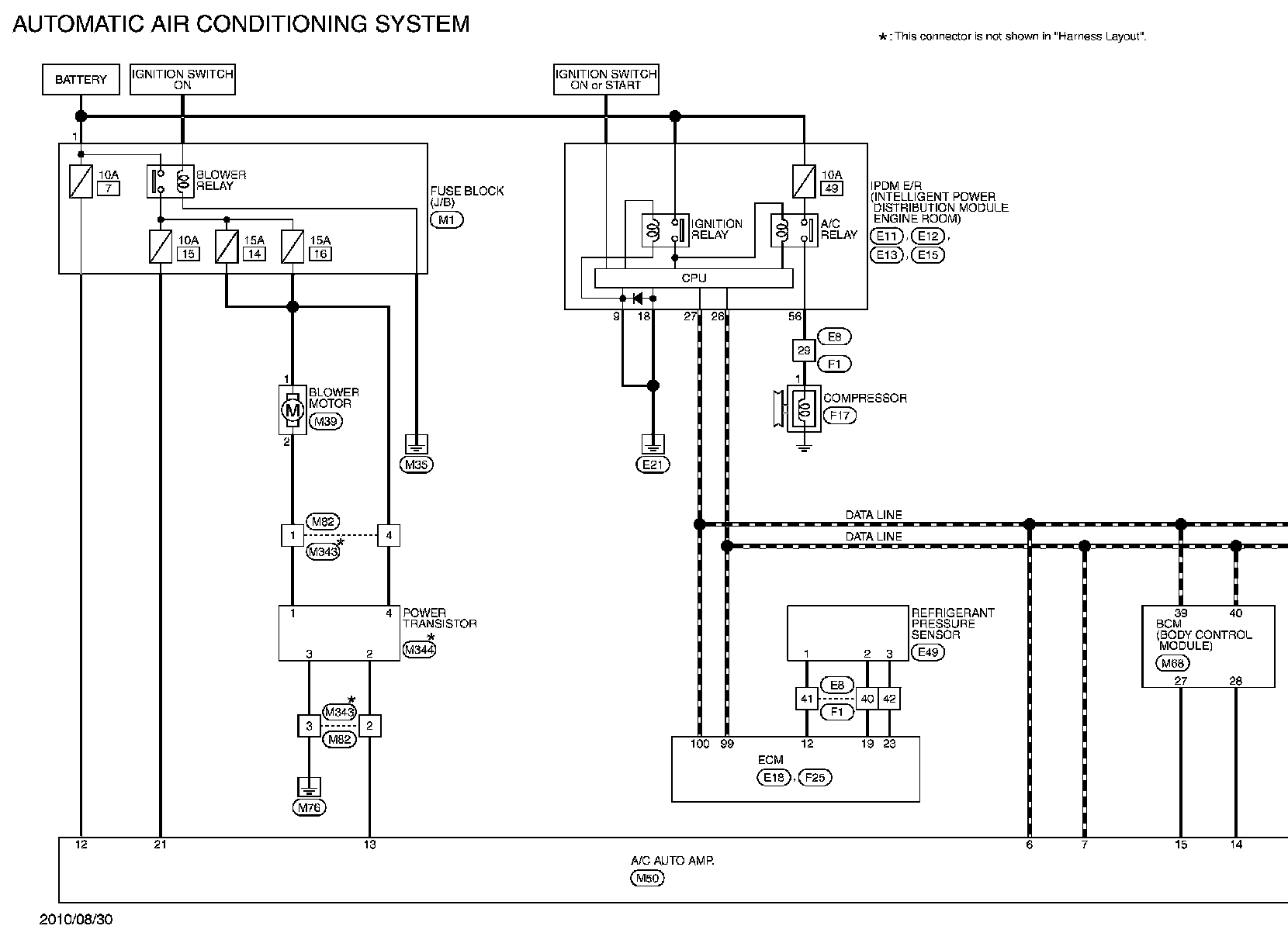

Wiring Diagram
