Fail Safe
Fail Safe
SYSTEM
Fail-safe
FAIL-SAFE FUNCTION

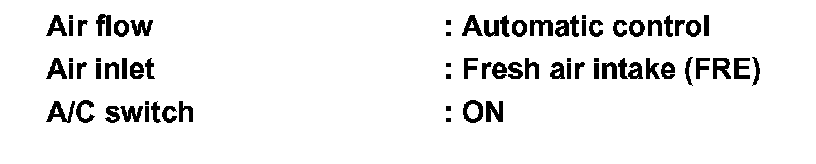

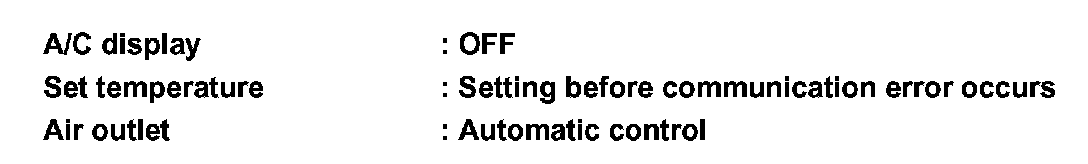

If a communication error exists between the A/C auto amp. and multi display unit for 2 seconds or longer, air conditioning is controlled under the following conditions:
