Side Ventilator Duct





DUCT AND GRILLE


SIDE VENTILATOR DUCT : Removal and Installation


REMOVAL
1. Remove instrument panel assembly. Removal And Installation.

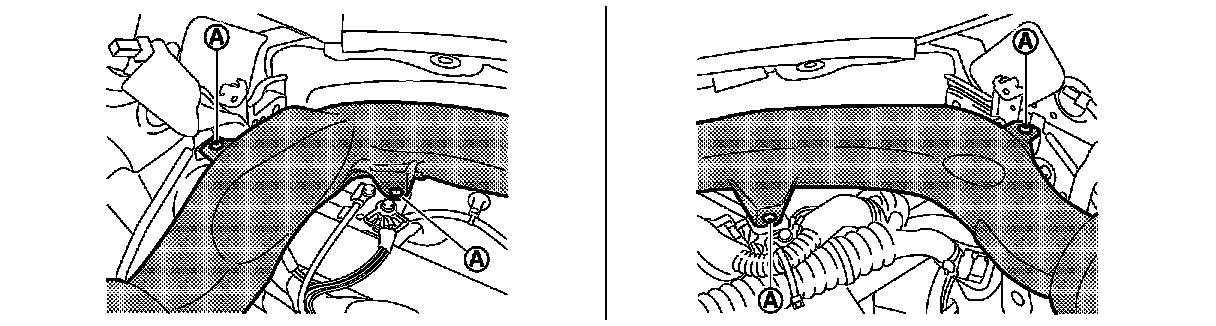

2. Remove fixing screws (A), and then remove side ventilator duct (LH and RH) from the vehicle.






INSTALLATION
Install in the reverse order of removal.
