Rear Heater Duct 2

DUCT AND GRILLE


REAR HEATER DUCT 2 REAR HEATER DUCT 2 : Removal and Installation


REMOVAL
1. Remove center console assembly. Removal And Installation.
2. Remove front seat assembly. Removal and Installation.
3. Remove front kicking plate inner and rear kicking plate inner. Service and Repair.
4. Remove center pillar lower garnish. Dash Side Finisher Body Side Welt Center Pillar Lower Garnish, "CENTER PILLAR LOWER GARNISH : Removal
and Installation".
5. Remove dash side finisher. Dash Side Finisher.

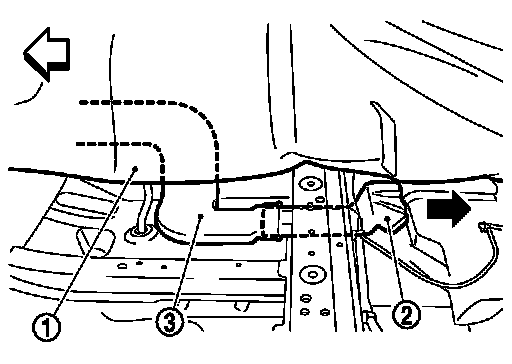

Arrow Indicates : Vehicle front

6. Remove rear heater duct 2. (Models for Canada only)
- Peel off floor carpet (1).
- Remove rear heater duct 3 (2) from rear heater duct 2 (3).

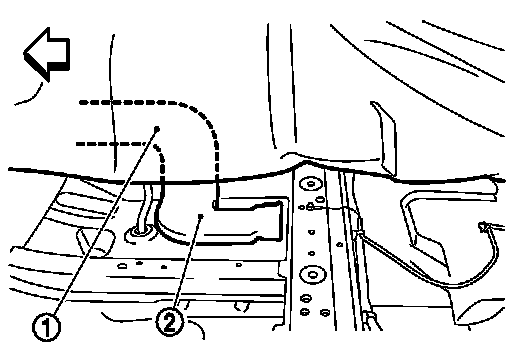

Arrow Indicates : Vehicle front

- Remove front floor spacer, and then remove rear heater duct 2
(2) from rear heater duct 1 (1).

INSTALLATION
Install in the reverse order of removal.
