Rear Heater Duct 1

DUCT AND GRILLE


REAR HEATER DUCT 1 REAR HEATER DUCT 1 : Removal and Installation


REMOVAL
1. Remove center console assembly. Removal And Installation.

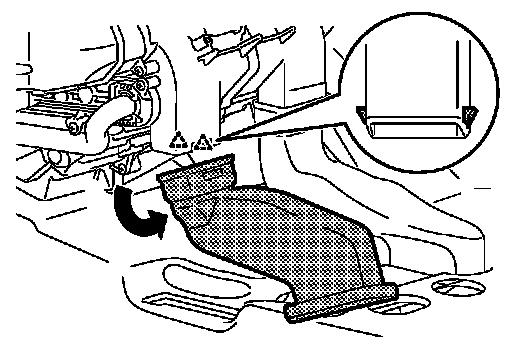

Broken Triangle : Pawl

2. Disengage fixing pawls, and then remove rear heater duct 1 (LH and RH) from A/C unit assembly. (Models for Canada only)

INSTALLATION
Install in the reverse order of removal.
