Front Defroster Nozzle

DUCT AND GRILLE


FRONT DEFROSTER NOZZLE : Removal and Installation


REMOVAL
1. Remove instrument panel assembly. Removal And Installation.
2. Remove side defroster nozzle. Side Defroster Nozzle.

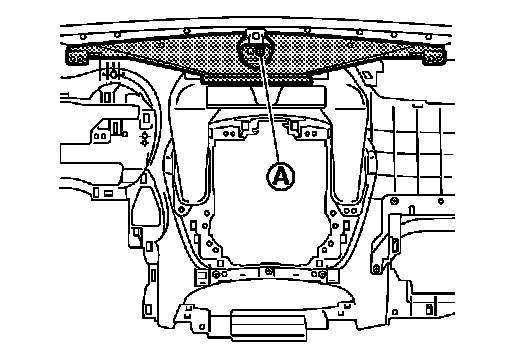

3. Remove fixing screw (A), and then remove front defroster nozzle from instrument panel assembly.

INSTALLATION
Install in the reverse order of removal.
