Center Ventilator Duct

DUCT AND GRILLE


CENTER VENTILATOR DUCT : Removal and Installation


REMOVAL
1. Remove instrument panel assembly. Removal And Installation.
2. Remove side defroster nozzle (LH and RH). Side Defroster Nozzle.
3. Remove front defroster nozzle. Front Defroster Nozzle.

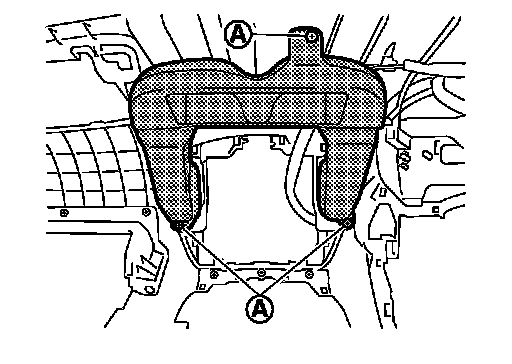

4. Remove fixing screws (A), and then remove center ventilator duct from instrument panel assembly.

INSTALLATION
Install in the reverse order of removal.
