Manual Air Conditioning

DOOR CABLE


INTAKE DOOR CABLE : Removal and Installation


REMOVAL
1. Disconnect intake door cable from A/C control. Exploded View.
2. Remove instrument lower panel LH. Removal And Installation.

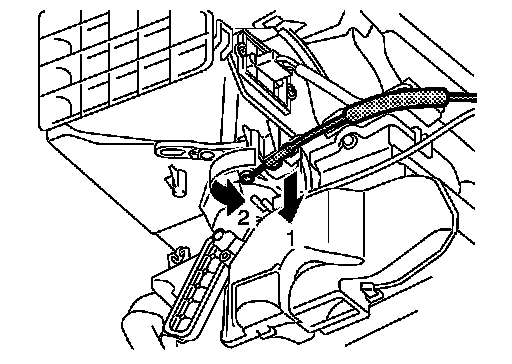

3. Disconnect intake door cable from A/C unit assembly as shown by the arrow in the figure, and then remove intake door cable.

INSTALLATION
Install in the reverse order of removal.
