Mode Door Cable Removal And Installation

DOOR CABLE


MODE DOOR CABLE : Removal and Installation


REMOVAL
1. Disconnect mode door cable from A/C control. Exploded View.
2. Remove glove box assembly. Removal And Installation.

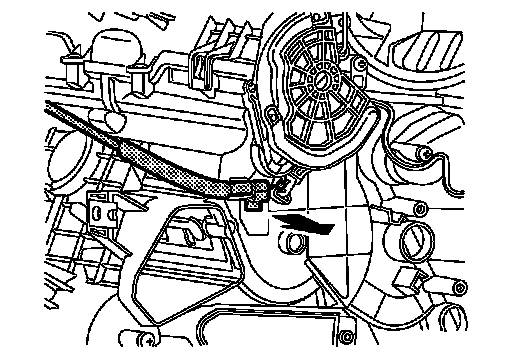

3. Disconnect mode door cable from A/C unit assembly as shown by the arrow in the figure, and then remove mode door cable.

INSTALLATION
Install in the reverse order of removal.
