Air Mix Door Cable Removal And Installation

DOOR CABLE


AIR MIX DOOR CABLE : Removal and Installation


REMOVAL
1. Disconnect air mix door cable from A/C control. Exploded View.
2. Remove instrument panel LH. Removal And Installation.

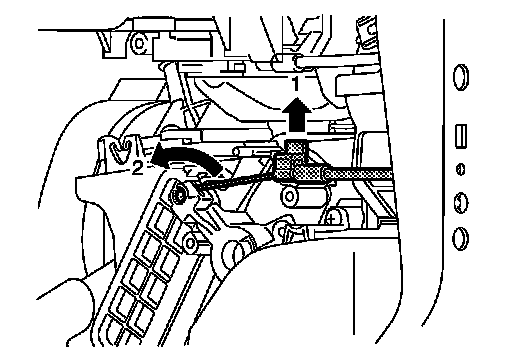

3. Disconnect air mix door cable from A/C unit assembly as shown by the arrow in the figure, and then remove air mix door cable.

INSTALLATION
Install in the reverse order of removal.
