Removal And Installation

EXHAUST MANIFOLD


Removal and Installation


REMOVAL
1. Drain engine coolant. Draining Engine Coolant.
2. Remove front tube. Exploded View.
3. Remove turbocharger. Exploded View.
4. Remove exhaust manifold cover.
5. Remove exhaust manifold.




Arrow Indicates : Engine front

- Loosen nuts in reverse order as shown in the figure.

NOTE:
Disregard the numerical order No. 9 to 12 in removal.
6. Remove gasket.

CAUTION:
Cover engine openings to avoid entry of foreign materials.

INSTALLATION




Arrow Indicates : Engine front

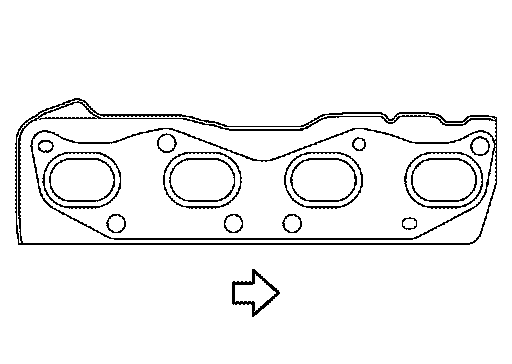

1. Install gasket to cylinder head as shown in the figure.

2. Install exhaust manifold with the following procedure:




Arrow Indicates : Engine front

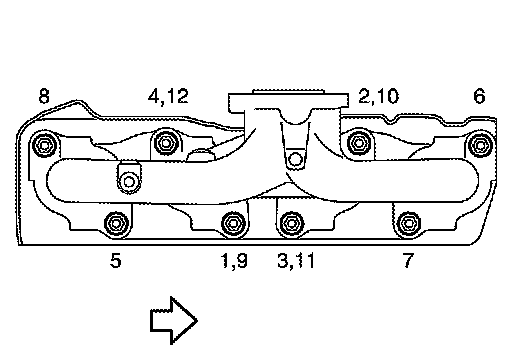

a. Tighten nuts in numerical order as shown in the figure.

NOTE:
- Tighten nuts the No.1 to No.4 in two steps.
- The numerical order No.9 to No.12 shows the second step.
3. Install remaining parts in the reverse order of removal.
