Inspection





SPARK PLUG


Inspection


INSPECTION AFTER REMOVAL
Use the standard type spark plug for normal condition.






CAUTION:





- Never drop or shock spark plug.

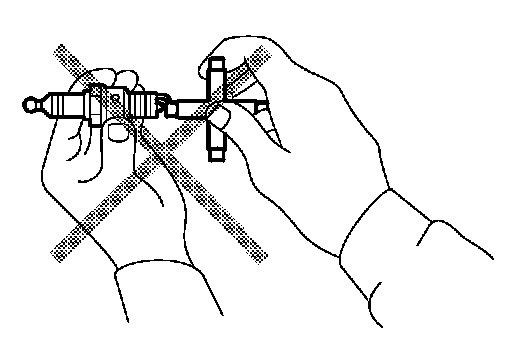

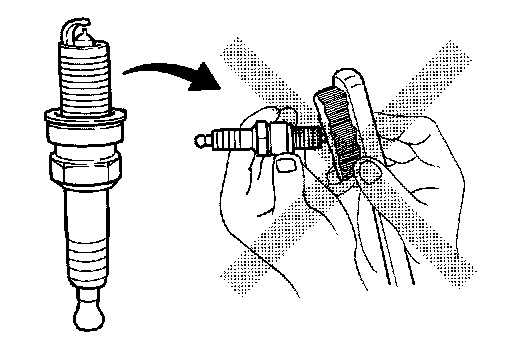

- Never use a wire brush for cleaning.

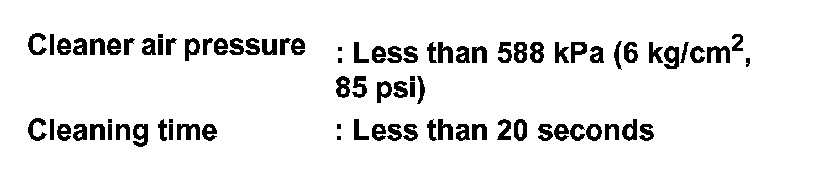

- If plug tip is covered with carbon, spark plug cleaner may be used.










- Spark plug gap adjustment is not required between replacement intervals.
- Measure spark plug gap. when it exceeds the limit, replace spark plug even if it is with in the specified replacement mileage. Spark Plug.
