Door Harness





HARNESS LAYOUT


Door Harness

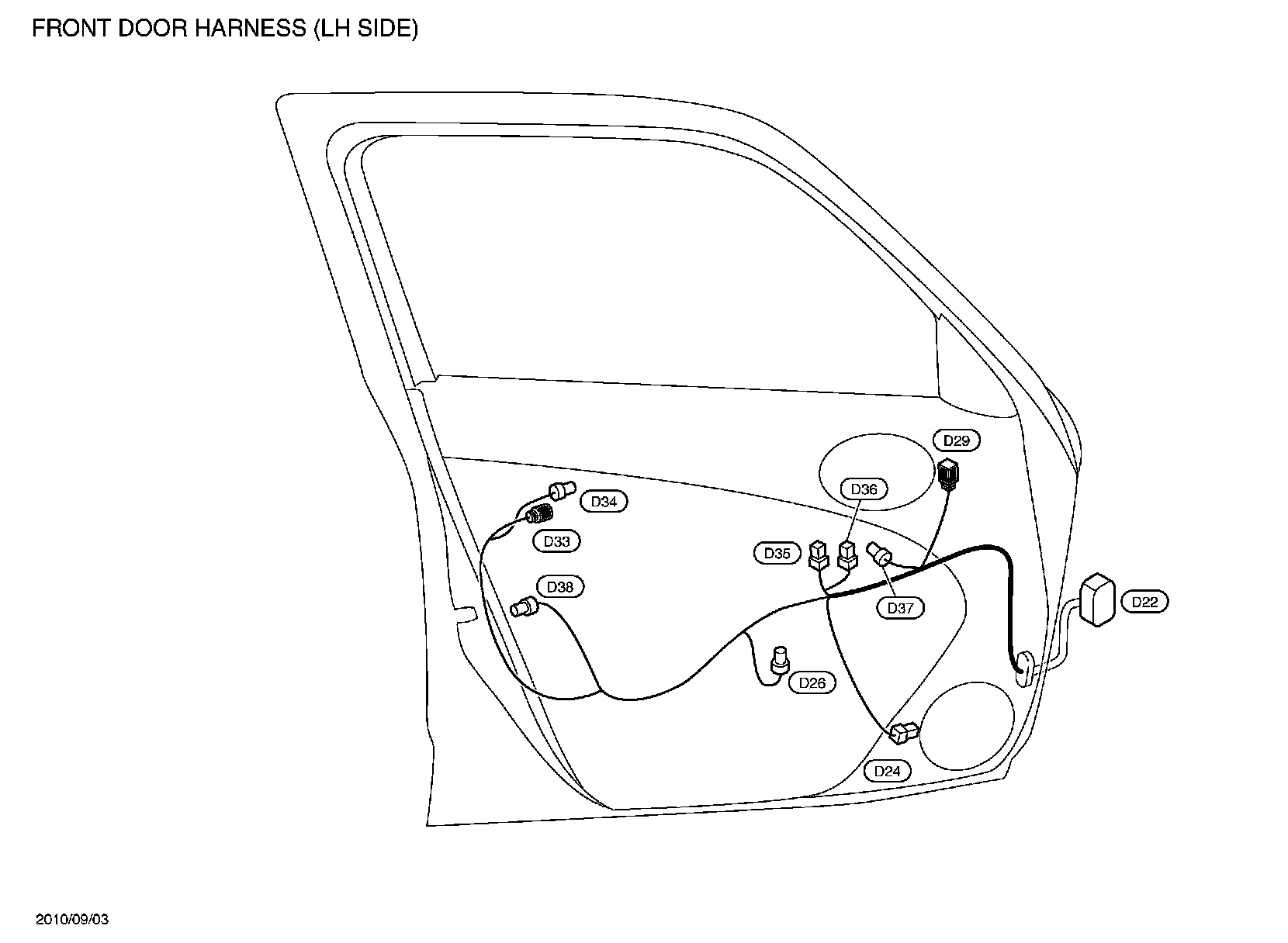

FRONT DOOR HARNESS (LH SIDE)

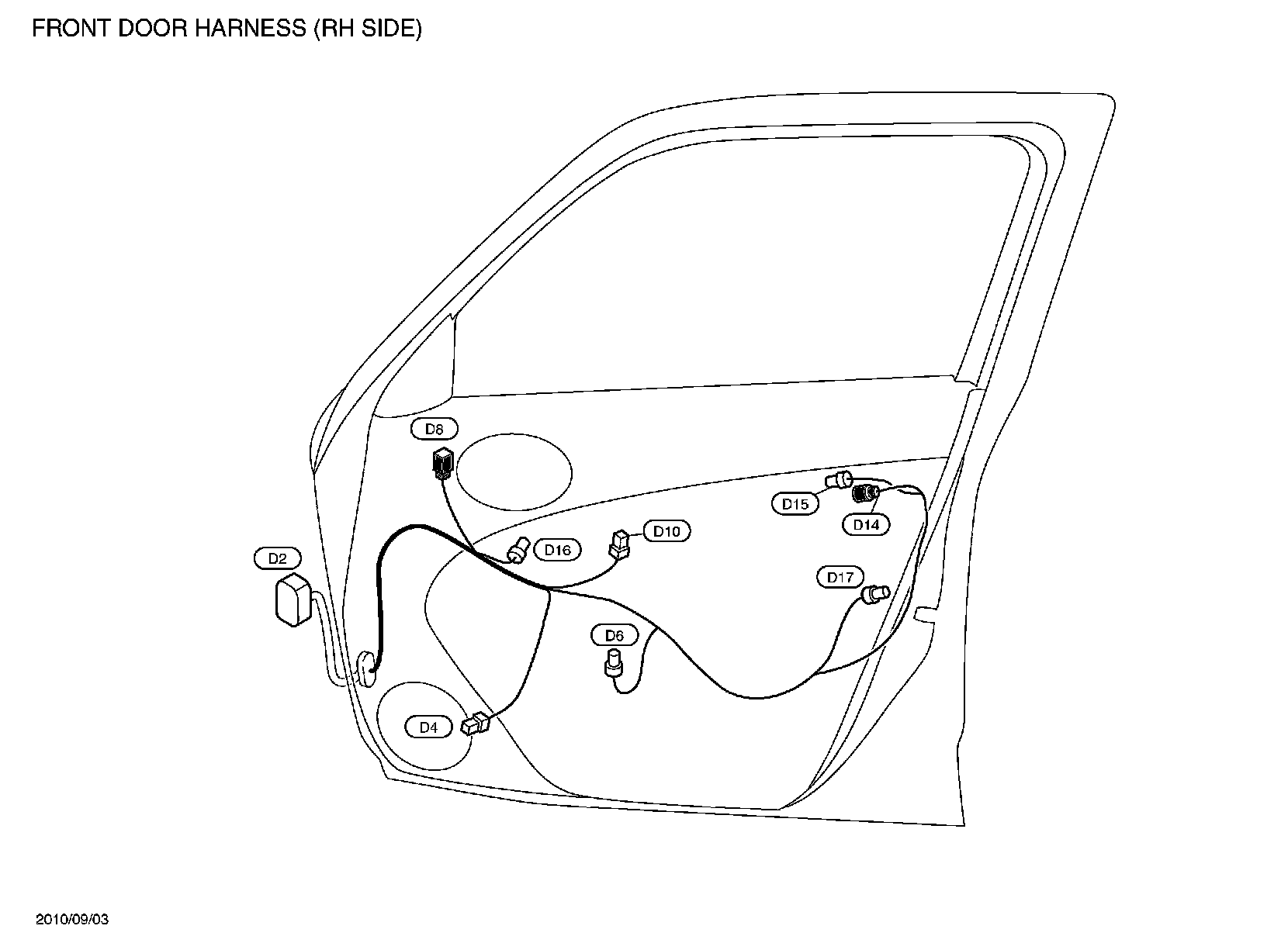

FRONT DOOR HARNESS (RH SIDE)

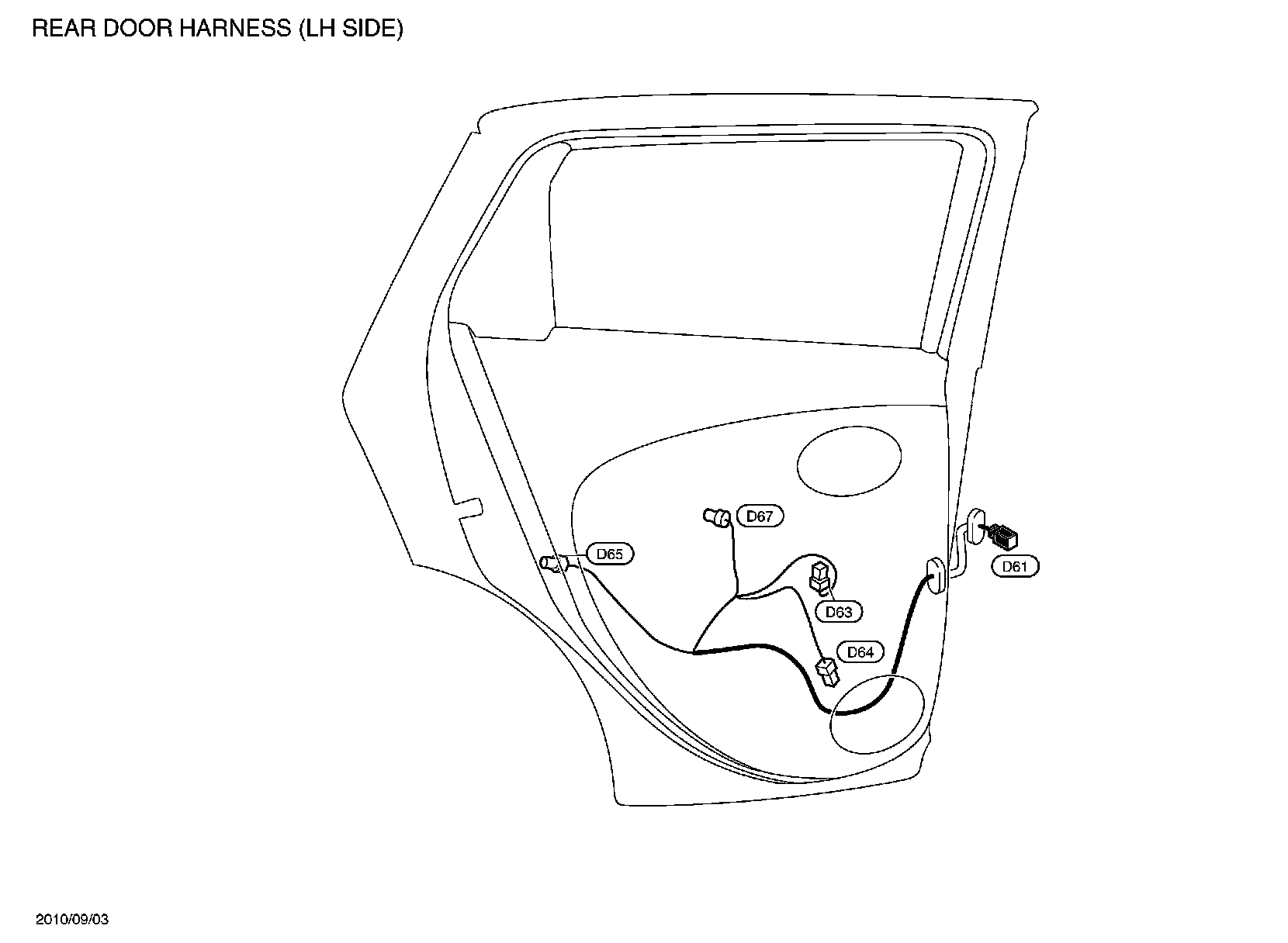

REAR DOOR HARNESS (LH SIDE)

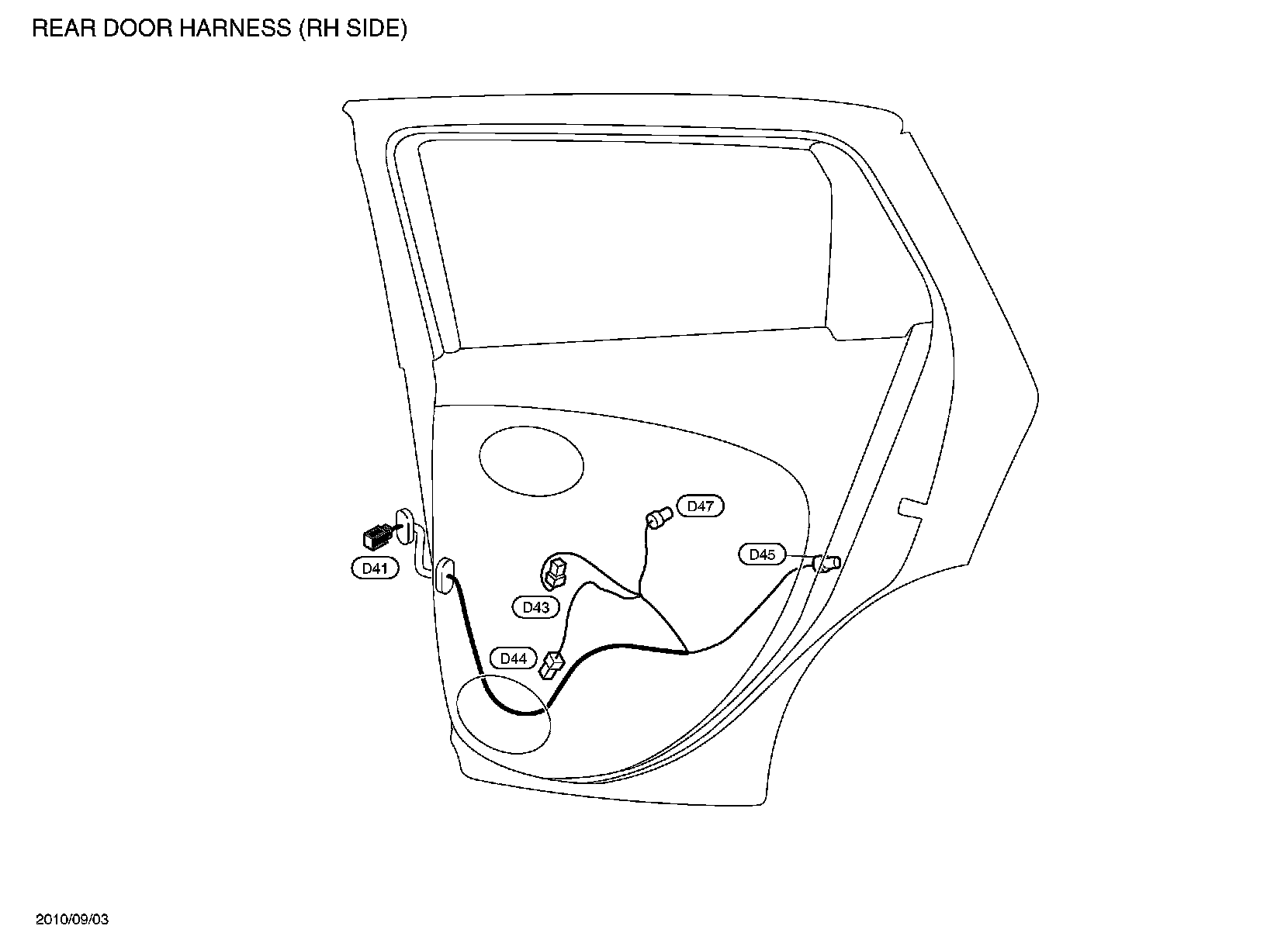

REAR DOOR HARNESS (RH SIDE)

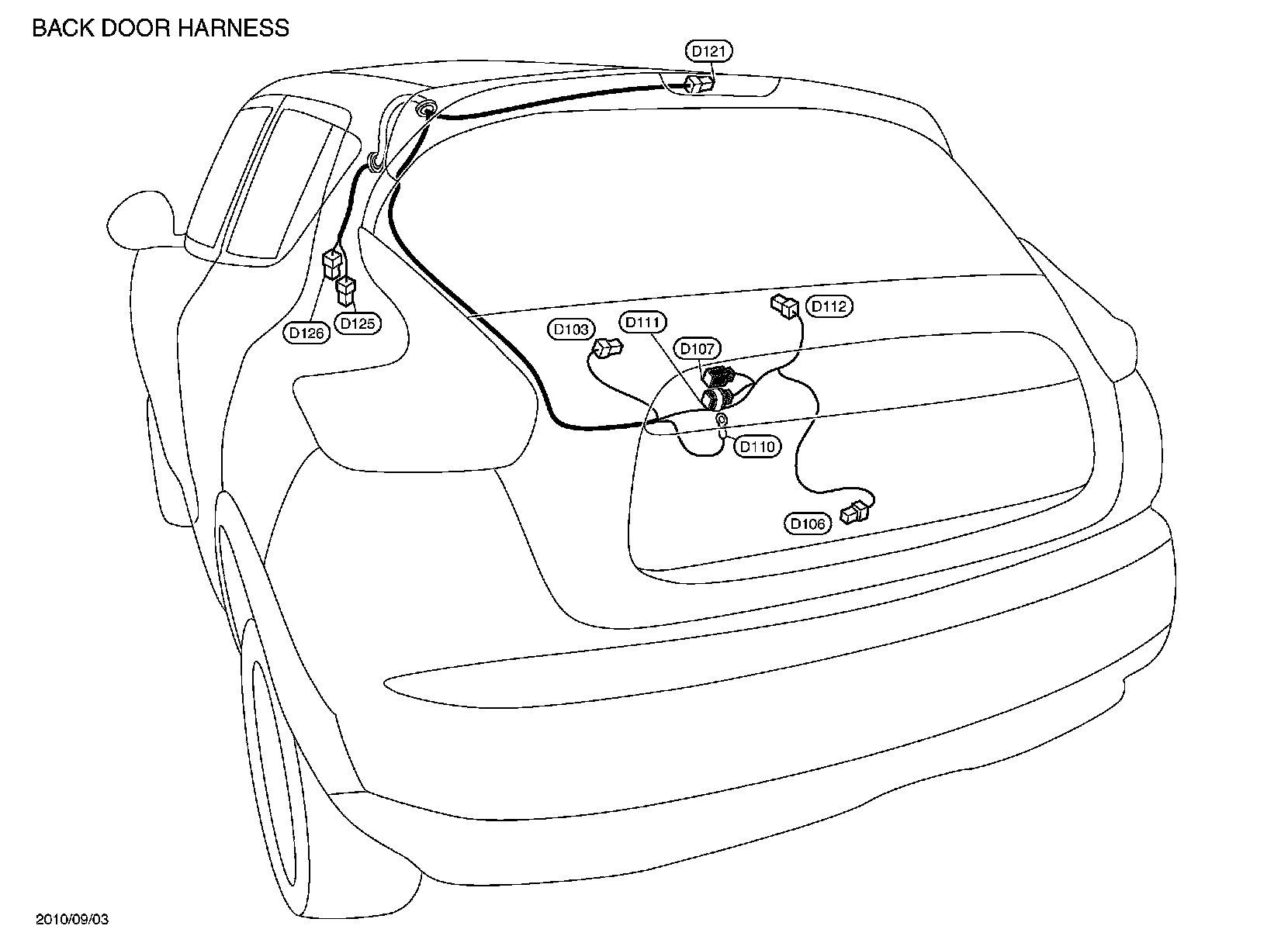

BACK DOOR HARNESS
