Home >> Nissan-Datsun >> 2011 >> Juke FWD L4-1.6L Turbo (MR16DDT) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting System >> Starting System (With Intelligent Key) >> CVT

CVT





STARTING SYSTEM (WITH INTELLIGENT KEY)

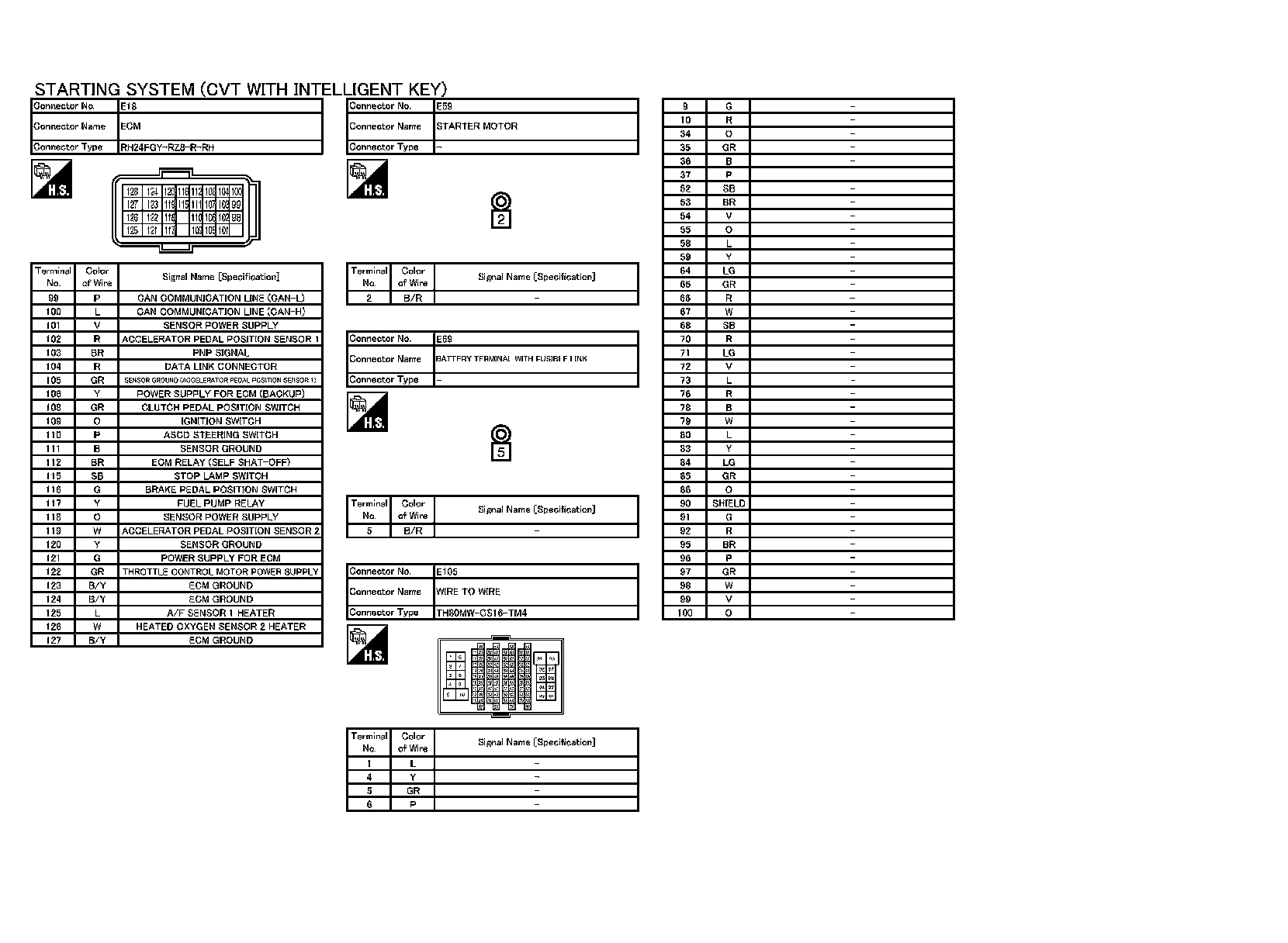

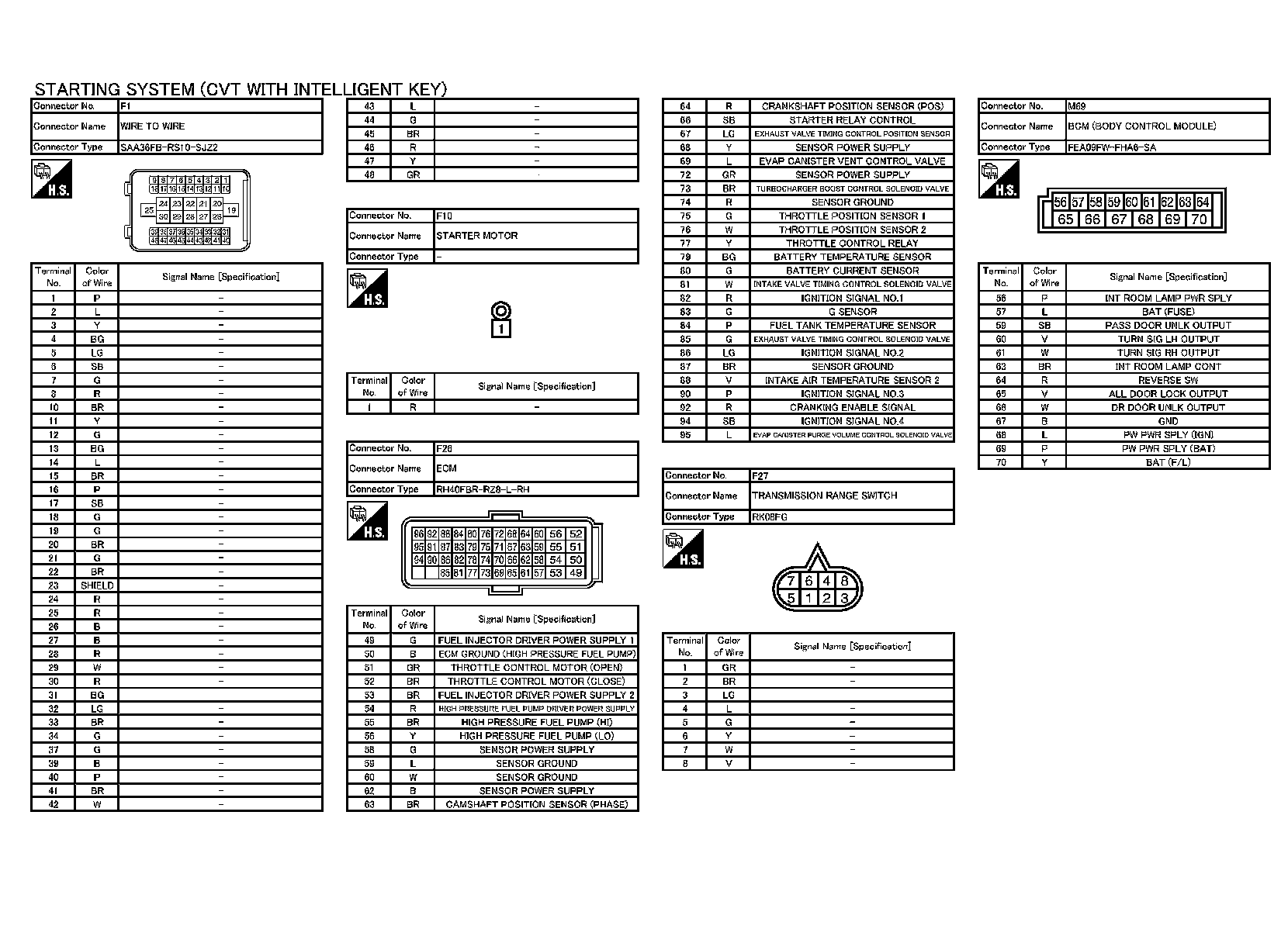

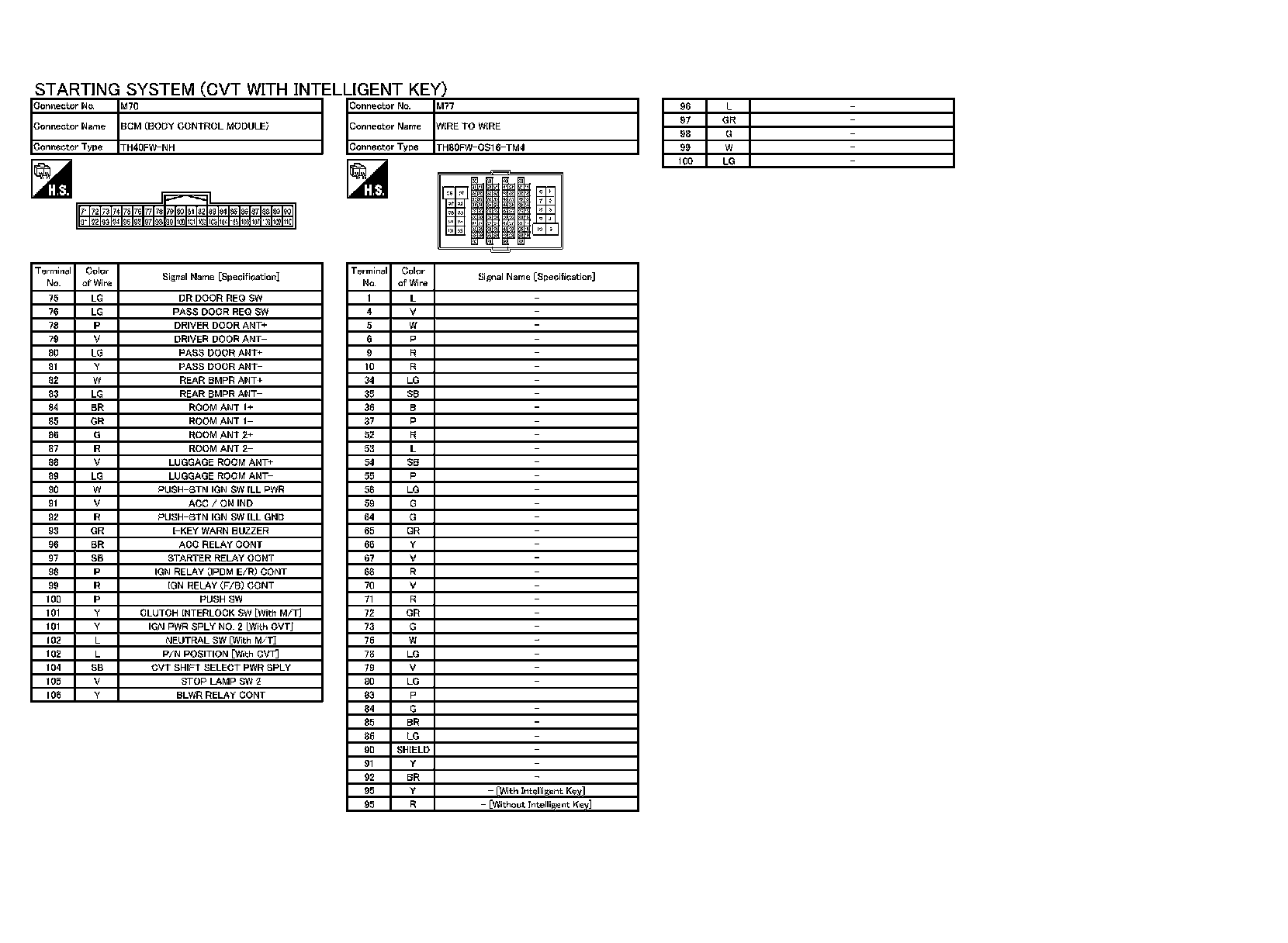

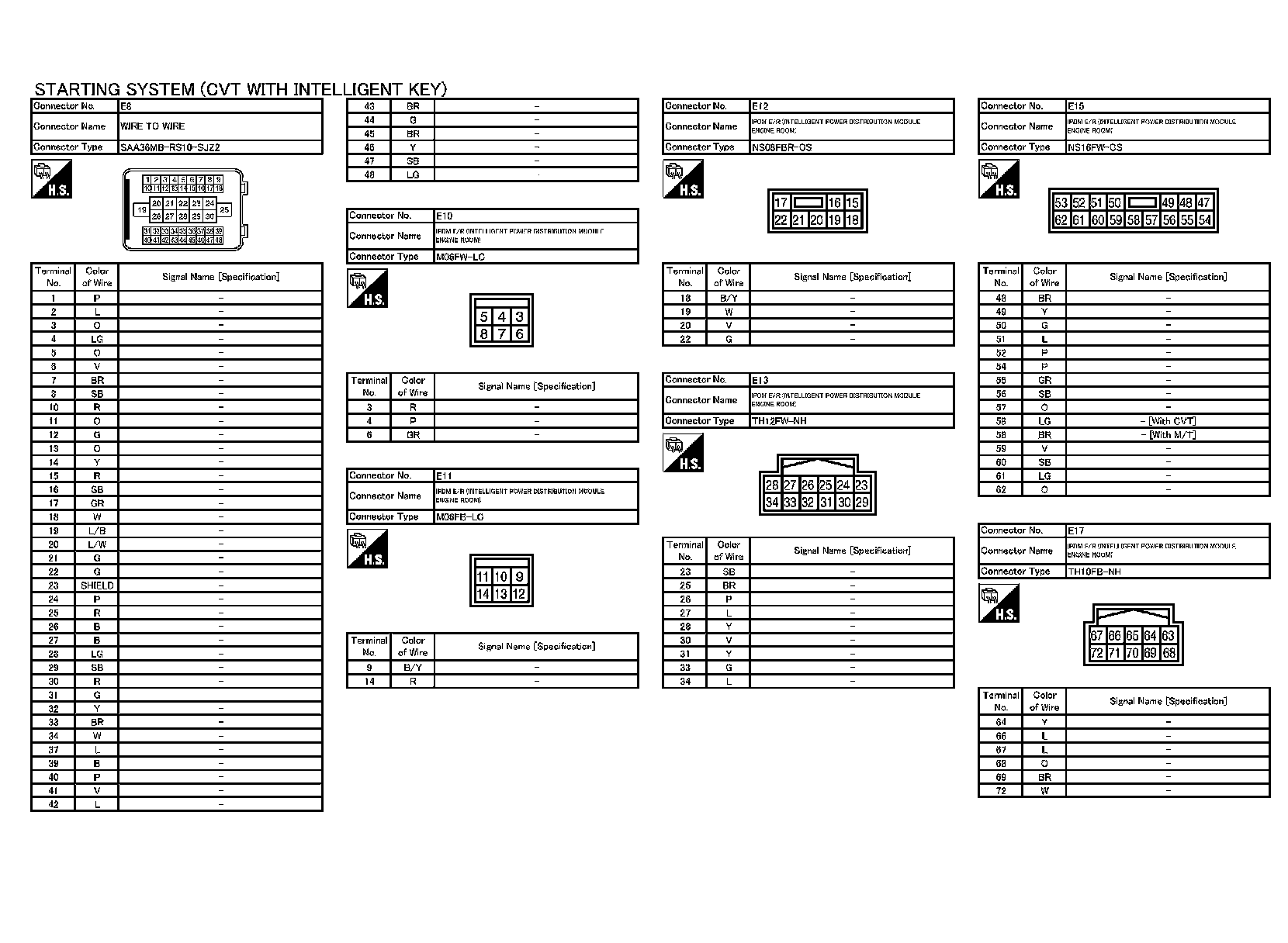

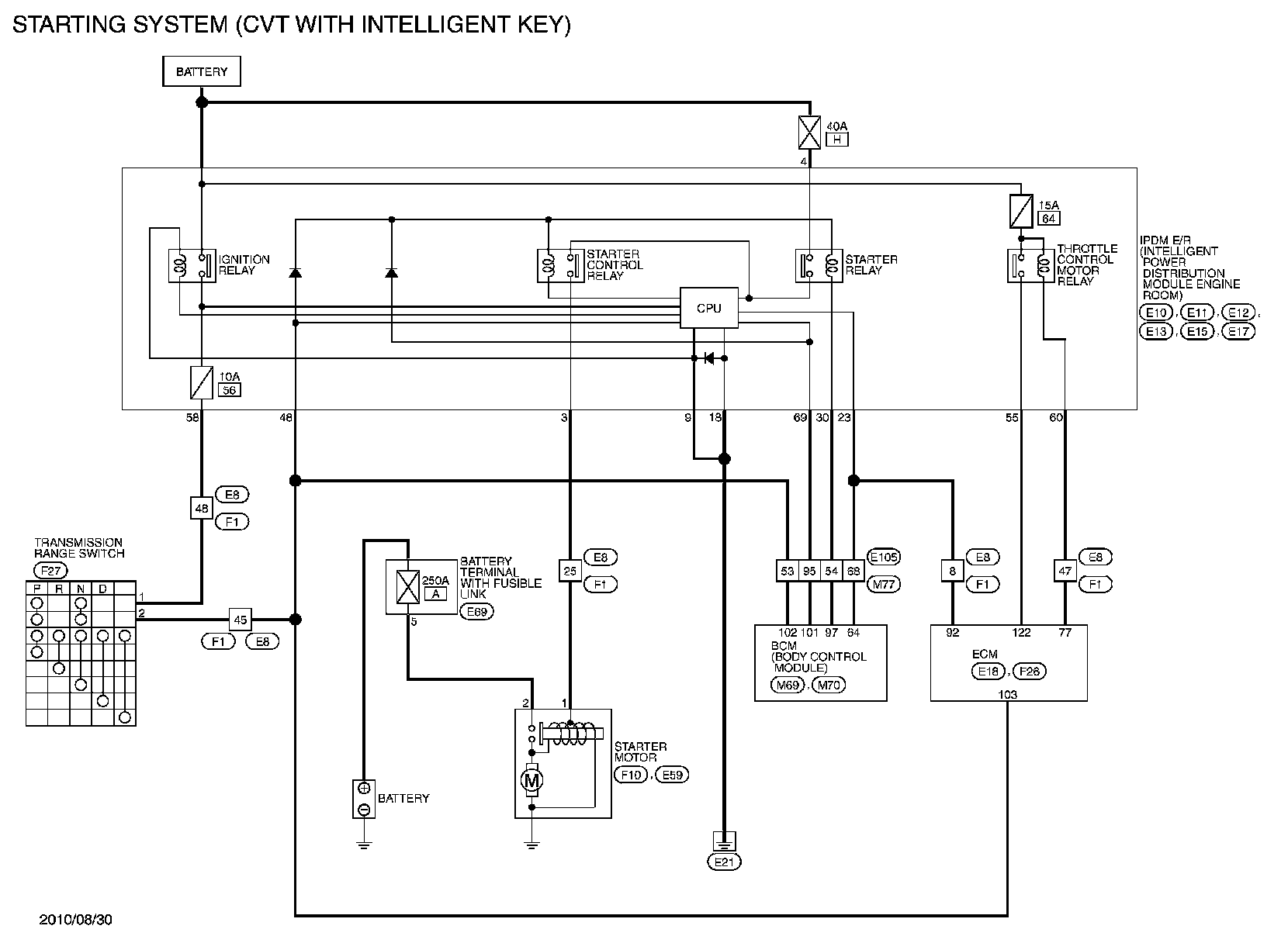

CVT : Wiring Diagram
