Removal And Installation

VACUUM LINES


Removal and Installation


REMOVAL
1. Remove air duct and air cleaner case. Removal And Installation.
2. Remove the vacuum hose and vacuum piping.
3. Perform inspection after removal. Inspection.

INSTALLATION
Note the following, install the vacuum hose.

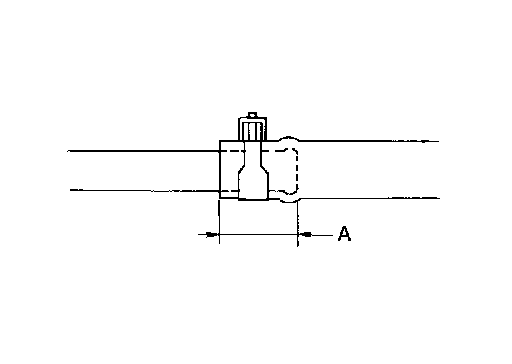

- When installing vacuum hose, insert it until its tip reaches the back-end of length (A) or further as shown in the figure.

CAUTION:
Never use lubricating oil during assembly.






- Face the paint mark of vacuum hose A (engine side) upward to assemble.
- Face the other paint marks to vehicle front side to assemble.
- For clamp mounting direction (the orientation of pawl), Exploded View.
