Inspection After Removal

BRAKE PEDAL


Inspection and Adjustment


INSPECTION AFTER REMOVAL
- Check for the following items and replace the brake pedal assembly if necessary.

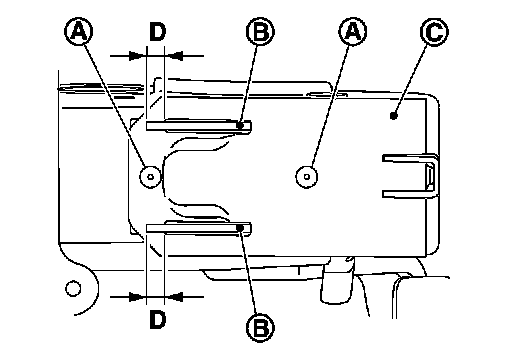

- Check the brake pedal upper rivet (made by aluminum) (A) for deformation.
- Check the brake pedal for bend, damage, and cracks on the welded parts.
- Check the lapping length (D) of sub-bracket (B) and slide plate (C).

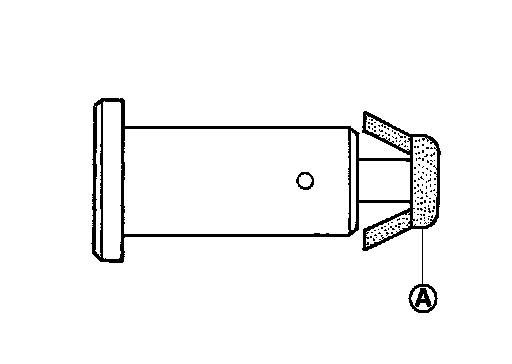

- Check clevis pin and plastic stopper (A) for damage and deformation. If any is found, replace clevis pin.

ADJUSTMENT AFTER INSTALLATION
- Adjust each item of brake pedal after installing the brake pedal assembly to the vehicle. Inspection and Adjustment.
- Perform the release position learning of the accelerator pedal. Work Procedure.
