Removal And Installation

WHEEL SENSOR


REAR WHEEL SENSOR : Removal and Installation


REMOVAL
1. Remove rear wheel sensor from wheel hub and bearing assembly (2WD).

CAUTION:
Never rotate or pull rear wheel sensor as much as possible, when pulling out.
2. Remove rear wheel sensor from axle housing (AWD).

CAUTION:
Never rotate or pull rear wheel sensor as much as possible, when pulling out.
3. Remove rear wheel sensor harness from the vehicle.

CAUTION:
Never twist and never pull rear wheel sensor harness, when removing.

INSTALLATION
Note the following, and install in the reverse order of the removal.
- Check that there is no foreign material like iron powder or damage on inner surface of rear wheel sensor mounting hole of wheel hub and bearing assembly and sensor rotor. Install after cleaning when there are foreign material like iron powder, or replace when there is a malfunction.





- Never twist rear wheel sensor harness when installing rear wheel sensor. Check that grommet (2) is fully inserted to bracket (1).
Check that rear wheel sensor harness is not twisted after installation.

CAUTION:

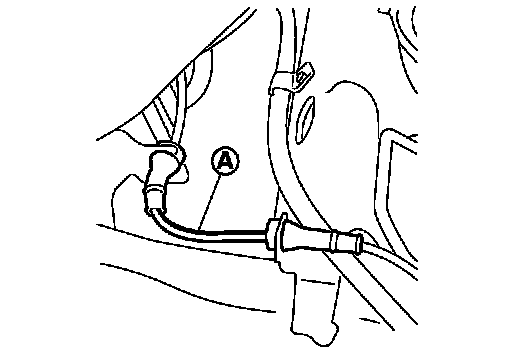

Check that the identification line (A) of the rear wheel sensor is faced upward.
