Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters
ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)
Reference Value

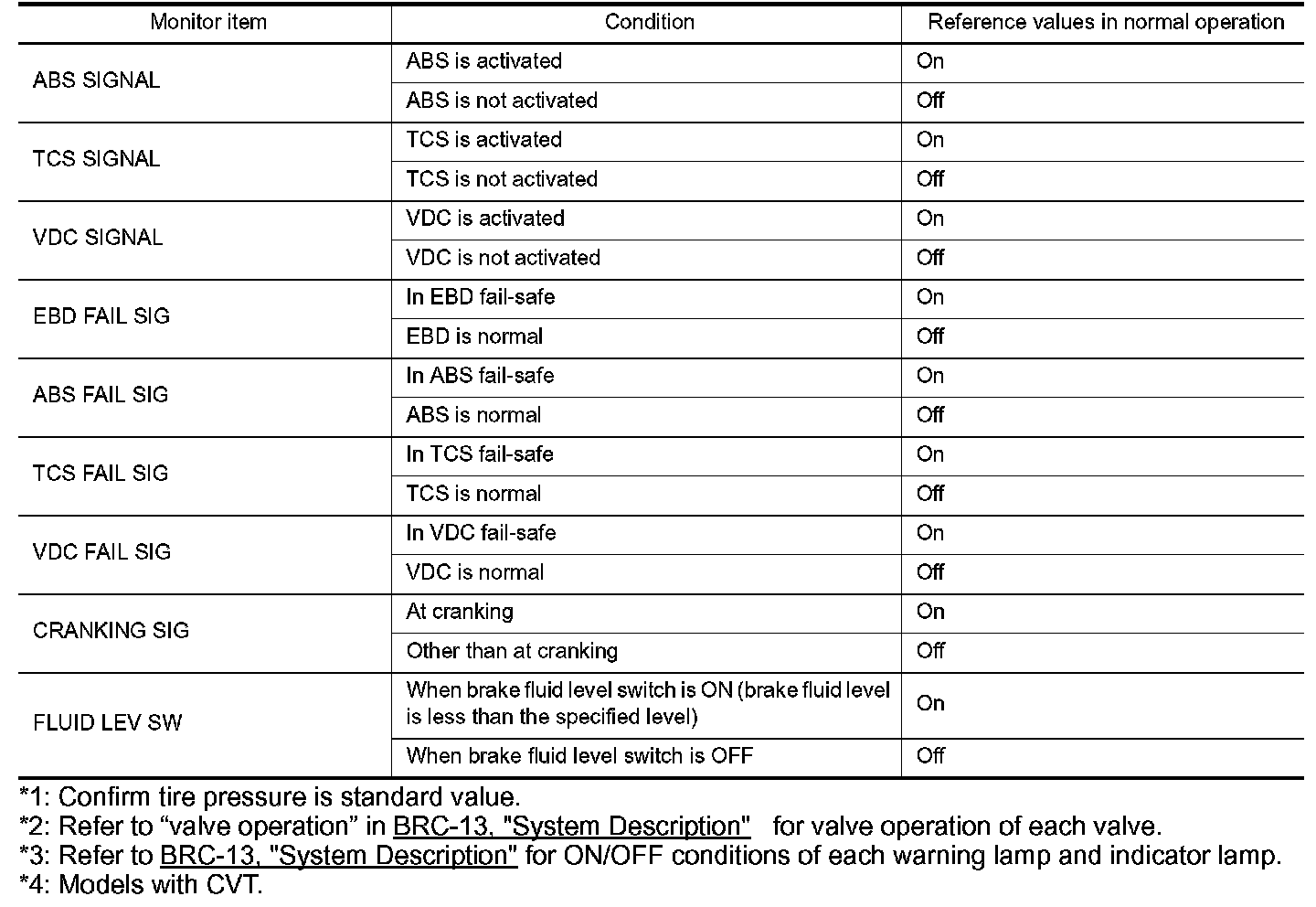

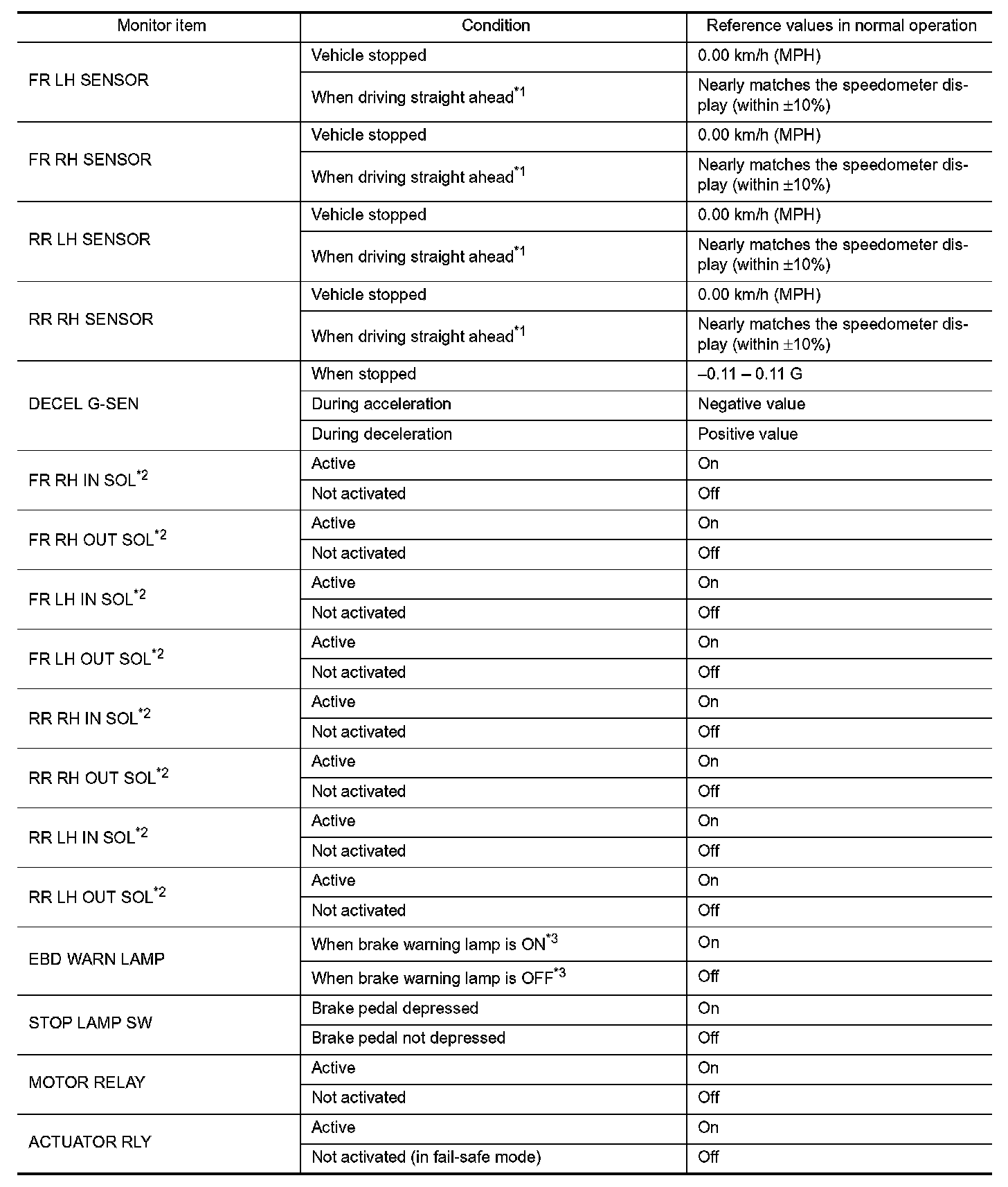

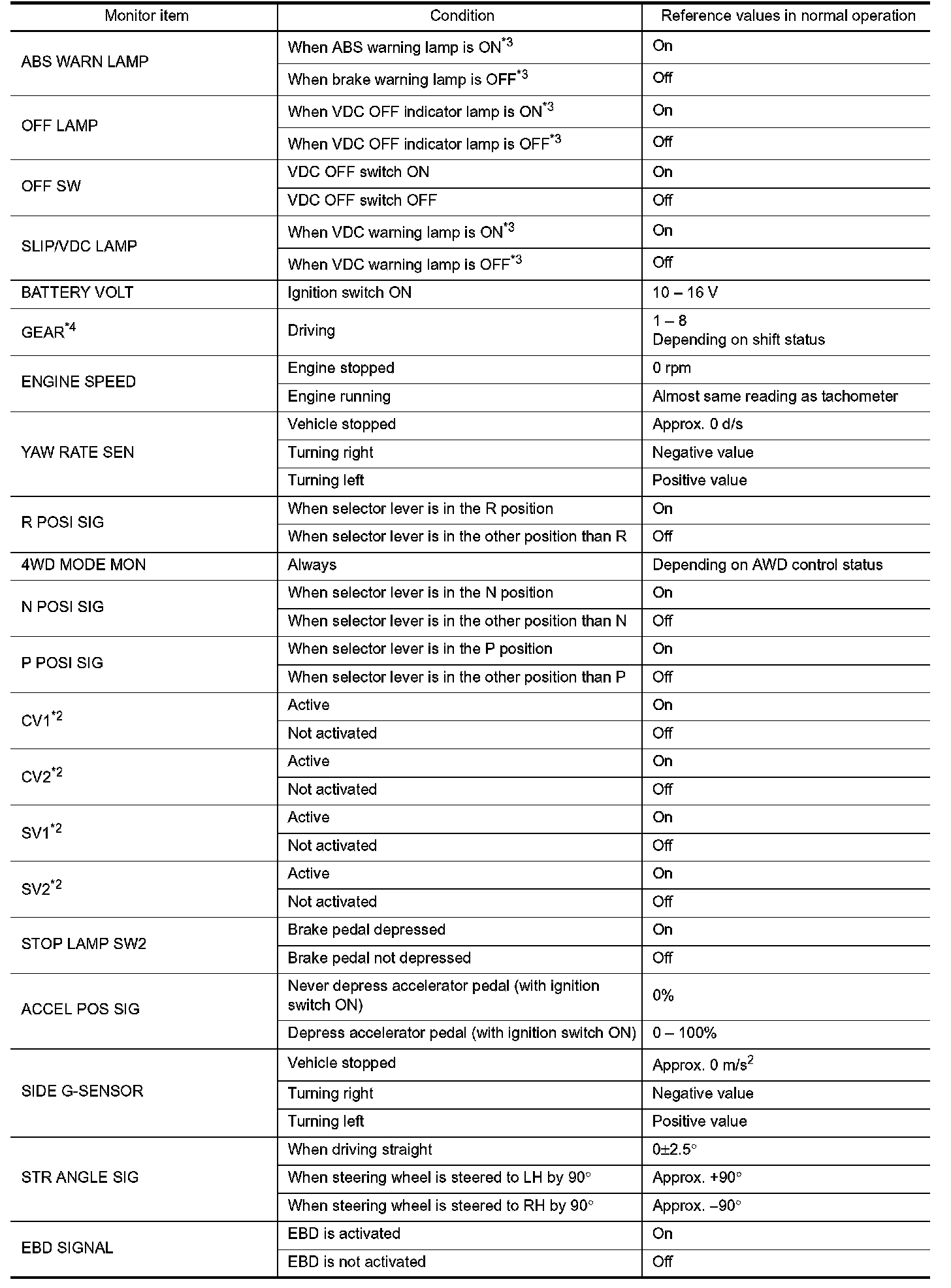

CONSULT-III DATA MONITOR STANDARD VALUE
