Removal And Installation

OUTSIDE MIRROR


DOOR MIRROR ASSEMBLY : Removal and Installation


CAUTION:
When removing, always use a remover tool that is made of plastic.

REMOVAL

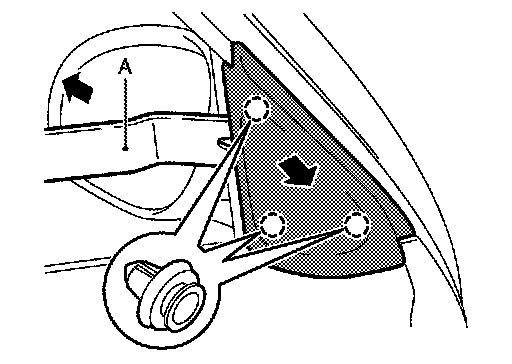

Broken Circle : Clip

1. Disengage door mirror corner cover fixing clips with a remover tool (A) and then remove door mirror corner cover.
2. Remove front door finisher. Removal And Installation.
3. Disconnect door mirror harness connector.
4. Remove door mirror mounting nuts, and then remove door mirror assembly.

INSTALLATION
Install in the reverse order of removal.
