Without Intelligent Key System

DOOR LOCK ACTUATOR:_:DRIVER SIDE





Component Function Check
1.CHECK FUNCTION
1. Select "DOOR LOCK" of "BCM" using CONSULT-III.
2. Select "DOOR LOCK" in "ACTIVE TEST" mode.

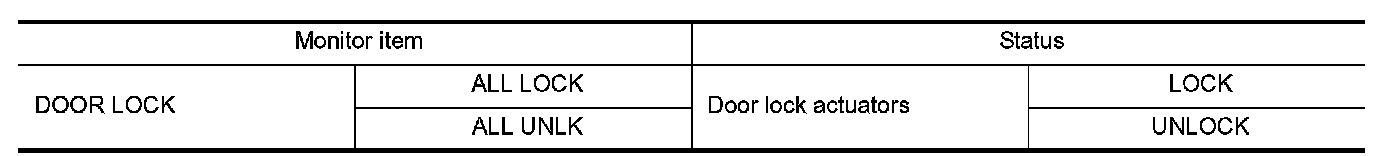

3. Check that the function operates normally according to the following conditions.





Is the inspection result normal?
YES - Door lock actuator is OK.
NO - SEE Diagnosis Procedure.




Diagnosis Procedure
1.CHECK DOOR LOCK ACTUATOR INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect front door lock assembly (driver side) connector.

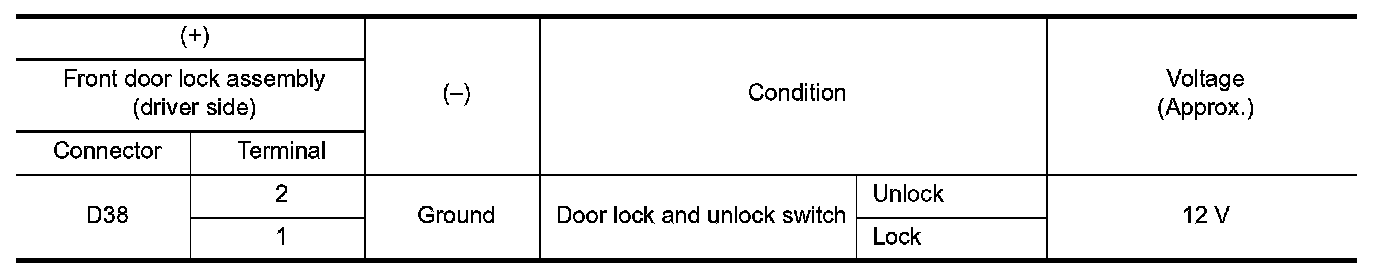

3. Check voltage between front door lock assembly (driver side) harness connector and ground.





Is the inspection result normal?
YES - Replace front door lock assembly (driver side).
NO - GO TO 2.
2.CHECK DOOR LOCK ACTUATOR CIRCUIT
1. Disconnect BCM connector and all door lock assembly connector.

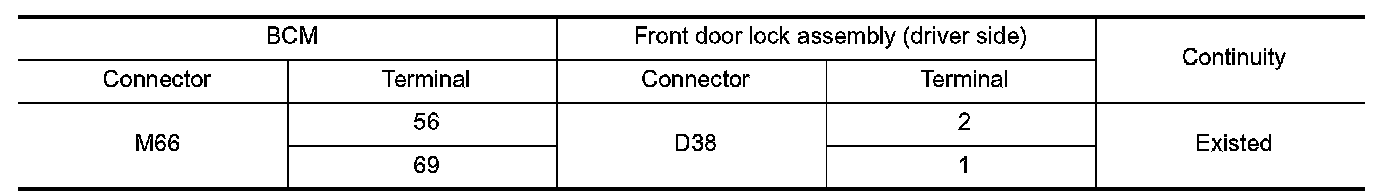

2. Check continuity between BCM harness connector and front door lock assembly (driver side) harness connector.

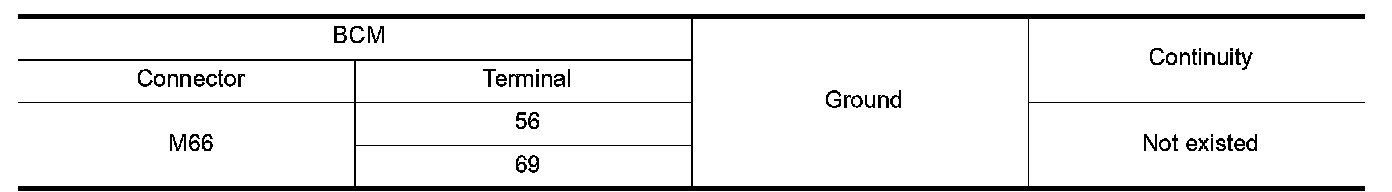

3. Check continuity between BCM harness connector and ground.





Is the inspection result normal?
YES - GO TO 3.
NO - Repair or replace harness.
3.CHECK BCM OUTPUT SIGNAL
1. Connect BCM connector.

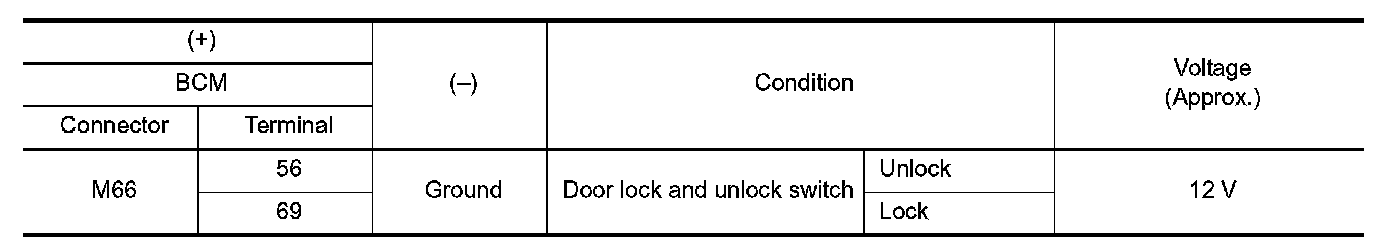

2. Check voltage between BCM harness connector and ground.





Is the inspection result normal?
YES - Check for internal short of each door lock actuator.
NO - Replace BCM. Removal And Installation.
