FRONT DOOR LOCK


DOOR LOCK : Removal and Installation


REMOVAL
1. Remove front door glass and front door lower sash (rear). Removal And Installation.
2. Remove inside handle. Removal and Installation Without Intelligent Key System.
3. Disengage inside handle cable and lock knob cable from cable clip.
4. Remove outside handle bracket. Removal and Installation Without Intelligent Key System.
5. Remove door lock assembly TORX bolts.
6. Disconnect door lock actuator connector, and then remove door lock assembly.

INSTALLATION
Note the following items, and install in the reverse order of removal.

CAUTION:
- Never reuse TORX bolt. Always replace it with a new one when it is removed.
- Check door open/close, lock/unlock operation after installation.
- Check door lock cable is properly engaged with outside handle bracket.

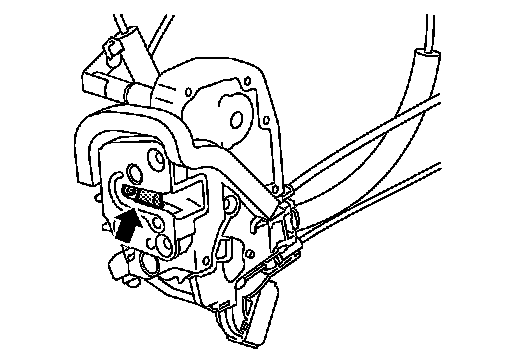

Black Arrow Indicates : Grease up point

- Check door lock assembly for poor lubrication. Apply body grease to door lock if necessary.
