Removal And Installation

CENTER CONSOLE ASSEMBLY


Removal and Installation


WARNING:
Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes or more.

REMOVAL

CAUTION:
When removing, always use a remover tool that is made of plastic.
1. Remove shift lever knob (MT models only). Removal And Installation.

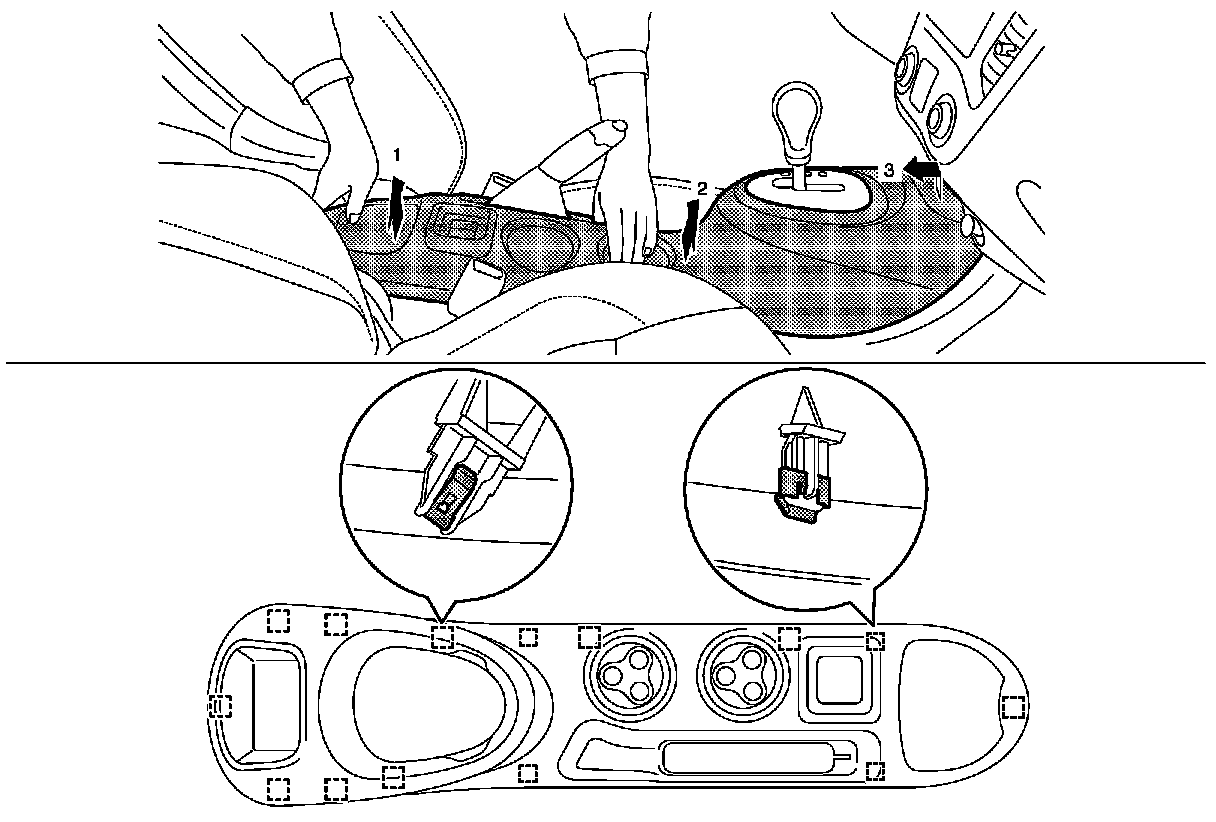

2. Remove console finisher assembly.
1. Put selector lever in "N" position.
2. Loosen the parking brake lever stroke by turning the adjusting nut with a socket wrench. Inspection.
3. Lift up console finisher assembly in numerical order shown in the figure and disengage metal clips.
4. Remove console finisher assembly while pulling it towards vehicle rear.




Broken Square : Metal Clip

CAUTION:
- Be careful not for damaging parts in surrounding area.
- Remove metal clips slowly so that they are not damaged.




Broken Triangle : Pawl
Broken Square : Metal Clip

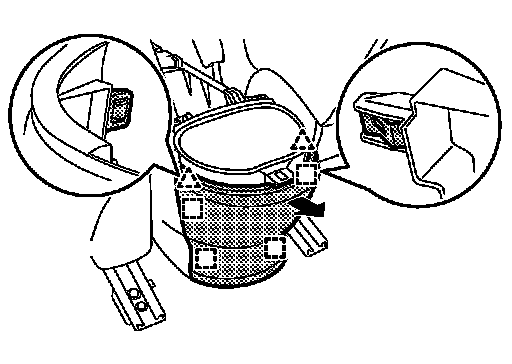

3. Remove console rear finisher.
1. Put front seat assembly (LH and RH) to frontmost position.
2. Pull back console rear finisher, and disengage the pawls and metal clips.

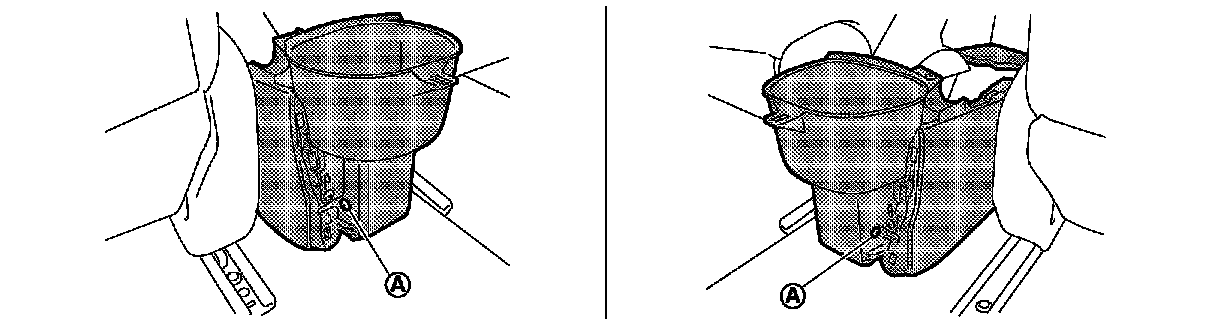

4. Remove center console assembly fixing screws (A).

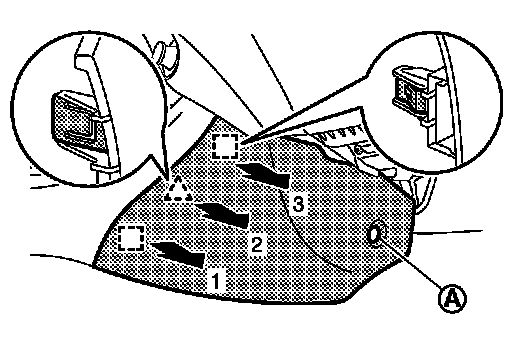

5. Remove instrument lower cover LH.
1. Put front seat assembly LH to rearmost position.




Broken Triangle : Pawl
Broken Square : Metal Clip

2. Remove fixing clip (A).
3. Pull the instrument lower cover LH crosswise, and disengage the pawl and metal clips.

CAUTION:
Remove pawl and metal clips slowly so that they are not damaged.

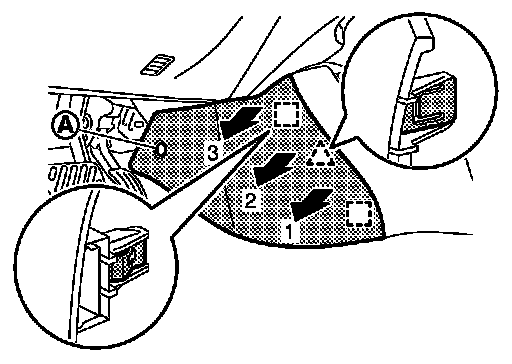

6. Remove instrument lower cover RH.
1. Put front seat assembly RH to rearmost position.




Broken Triangle : Pawl
Broken Square : Metal Clip

2. Remove fixing clip (A).
3. Pull the instrument lower cover RH crosswise, and disengage the pawl and metal clips.

CAUTION:
Remove pawl and metal clips slowly so that they are not damaged.

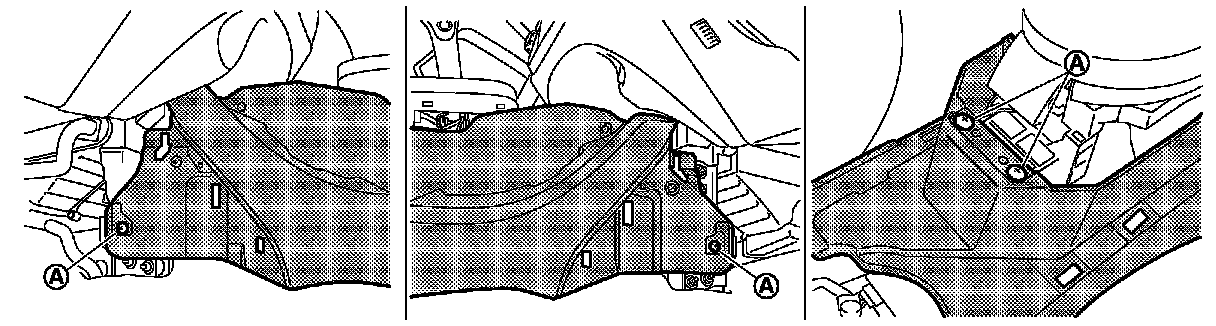

7. Remove center console assembly.





1. Remove center console fixing screws (A).
2. Lift up center console assembly back side.

CAUTION:
Be careful not for damaging parts in surrounding area.

INSTALLATION
Note the following item, and then install in the reverse order of removal.

CAUTION:
After installation, adjust the parking brake lever stroke. Inspection.
