Removal And Installation With Intelligent Key System

BACK DOOR


BACK DOOR WEATHER-STRIP BACK DOOR WEATHER-STRIP : Removal and Installation


REMOVAL
Pull up and remove engagement with body from weather-strip joint.

CAUTION:
Never pull strongly on weather-strip.

INSTALLATION
1. Working from the upper section, align weather-strip center mark with vehicle center position mark and install weather-strip onto the vehicle.

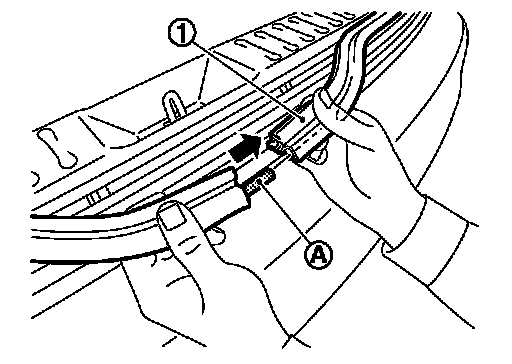

2. For the lower section, insert pad (A) into weather-strip (1), and then fix the connection point.

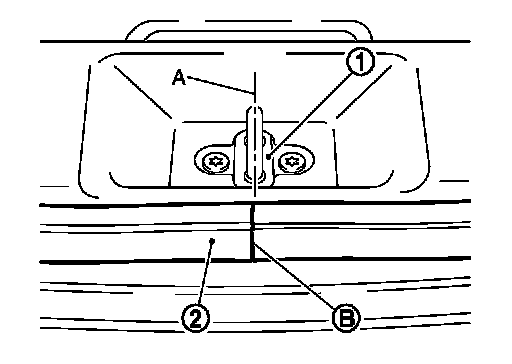

3. Align the connecting point (B) of weather-strip (2) to the center
(A) of striker (1), and then install as shown in the figure.
4. Pull weather-strip gently to ensure that there is no loose section.

NOTE:
Check that weather-strip fits tightly in each corner and luggage rear plate.
