Emergency Lid

BACK DOOR TRIM


EMERGENCY LID : Removal and Installation


REMOVAL

CAUTION:
When removing, always use a remover tool that is made of plastic.
1. Fully open back door.




Broken Triangle : Pawl

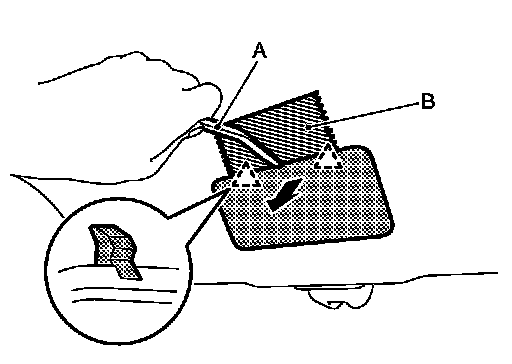

2. Disengage emergency lid fixing pawls with a remover tool (A), and then remove emergency lid.

CAUTION:
Apply protective tape (B) on the parts to protect it from damage.

INSTALLATION
Install in the reverse order of removal.
