Back Door Pull Handle

BACK DOOR TRIM


BACK DOOR PULL HANDLE : Removal and Installation


REMOVAL

CAUTION:
- When removing, always use a remover tool that is made of plastic.
- Never damage the back door panel.
1. Fully open back door.

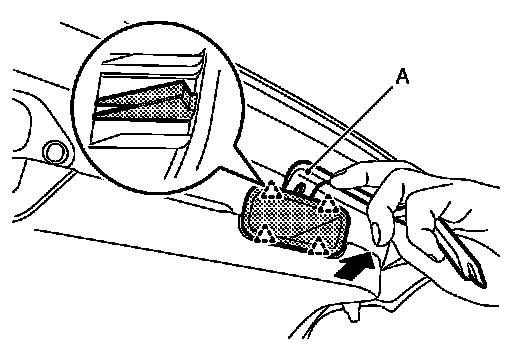

Broken Triangle : Pawl

2. Disengage back door pull handle fixing pawls with a remover tool (A), and then remove back door pull handle.

INSTALLATION
Install in the reverse order of removal.
