Exploded View With Intelligent Key System
Exploded View With Intelligent Key System

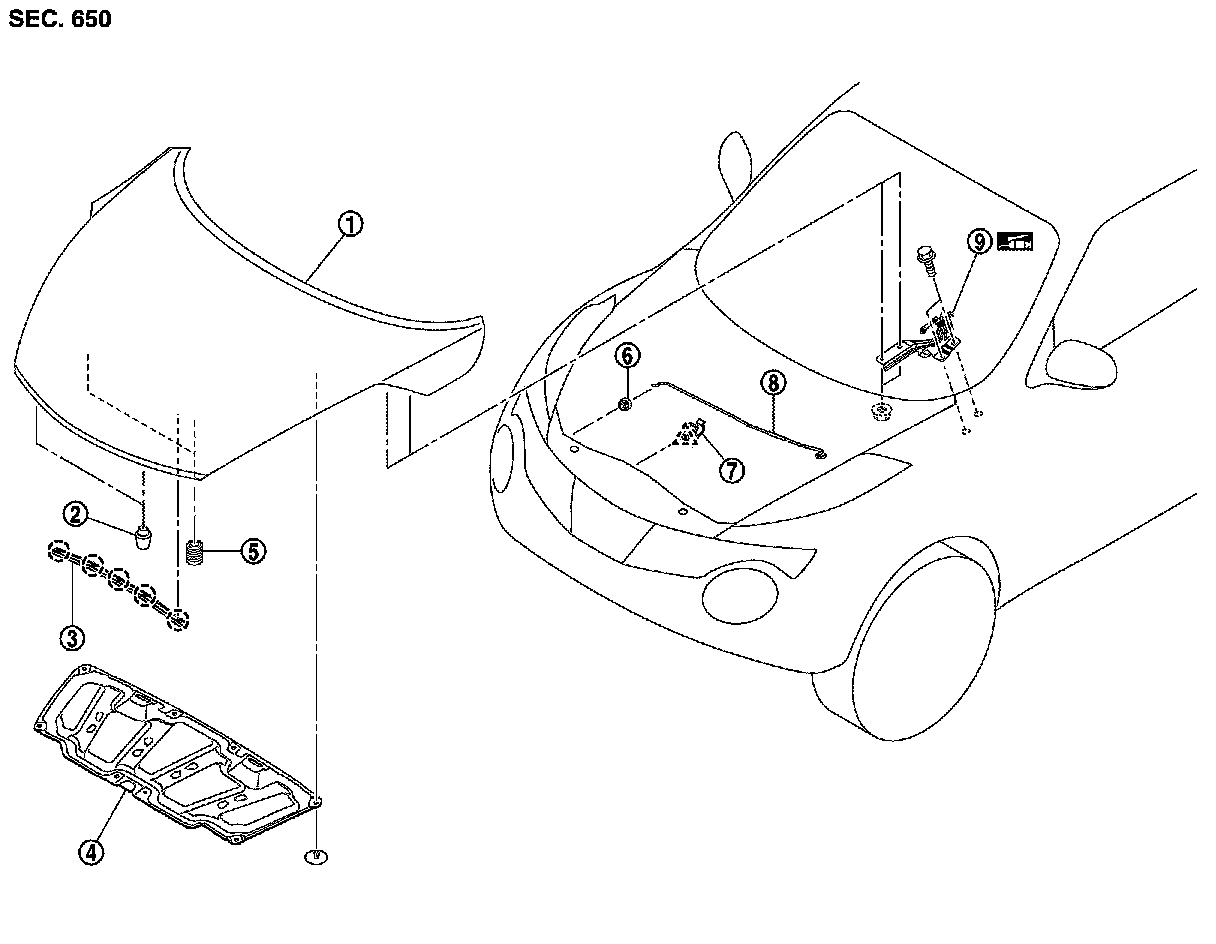

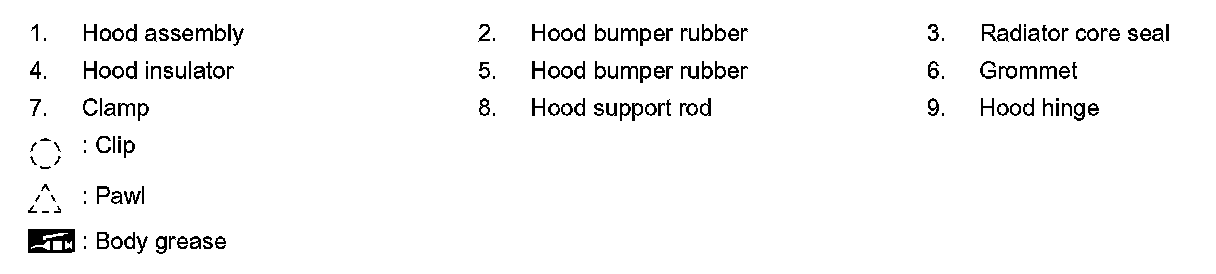

HOOD
Exploded View
