HOOD


HOOD HINGE : Removal and Installation


REMOVAL
1. Remove hood assembly. Removal and Installation With Intelligent Key System.
2. Remove front fender. Removal and Installation With Intelligent Key System.
3. Remove hood hinge mounting bolts, and then remove hood hinge.

INSTALLATION
Note the following items, and then install in the reverse order of removal.

CAUTION:
- After installation, perform hood hinge fitting adjustment. With Intelligent Key System.
- After installation, apply touch-up paint (the body color) onto the head of the hinge mounting bolts and nuts.

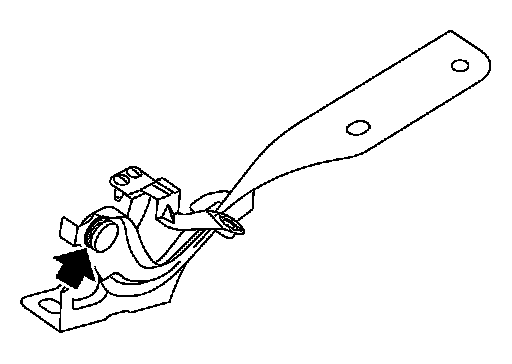

- Check hood hinge rotating part for poor lubrication. If necessary, apply grease.
