FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2011
>>
Juke FWD L4-1.6L Turbo (MR16DDT)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Doors
>>
Front Door
>>
Service and Repair
>>
Exploded View With Intelligent Key System
Exploded View With Intelligent Key System
FRONT DOOR

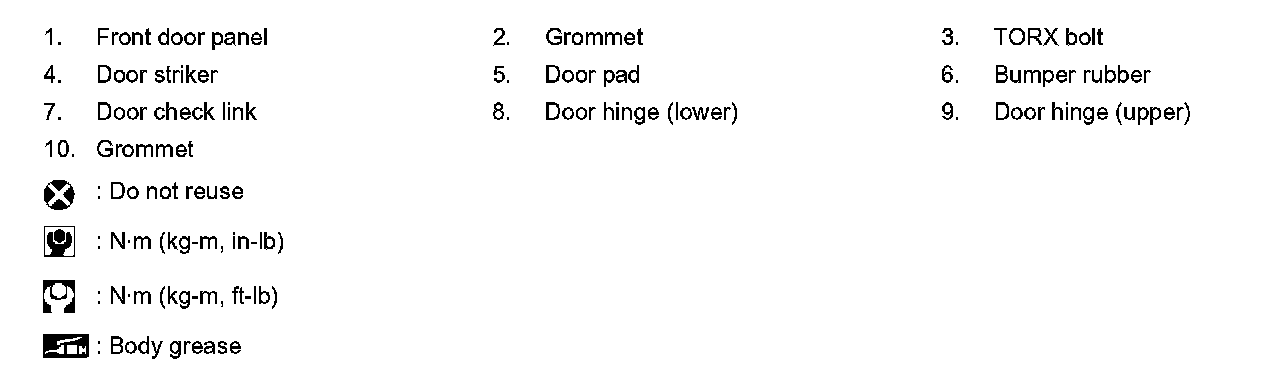

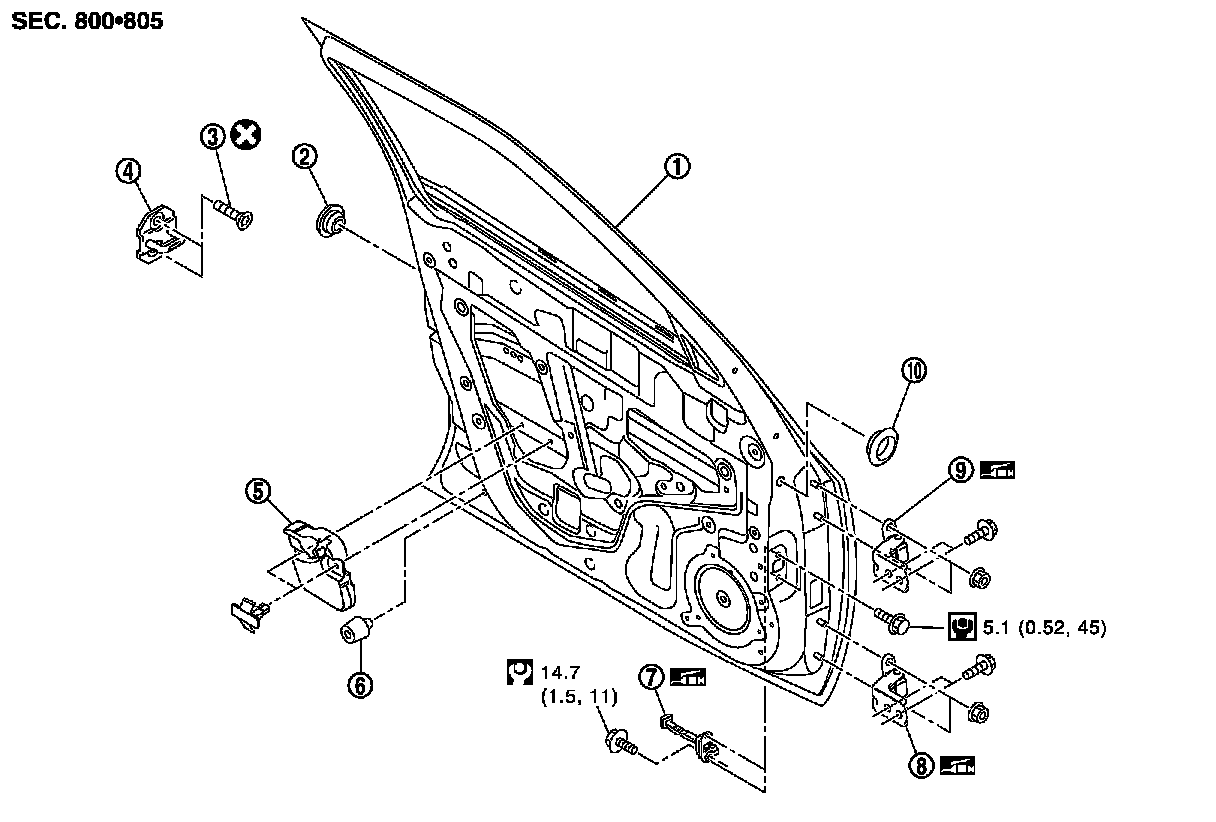

Exploded View
