Juke FWD L4-1.6L Turbo (MR16DDT)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Body Control Systems
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
Wiper
>>
CONSULT-III Function Wiper
CONSULT-III Function Wiper
DIAGNOSIS SYSTEM (
BCM
)
WIPER : CONSULT-III Function - WIPER

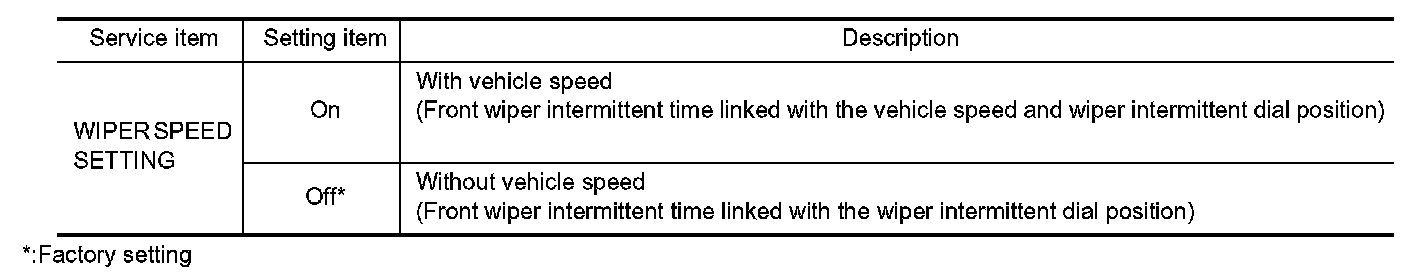

WORK SUPPORT
DATA MONITOR

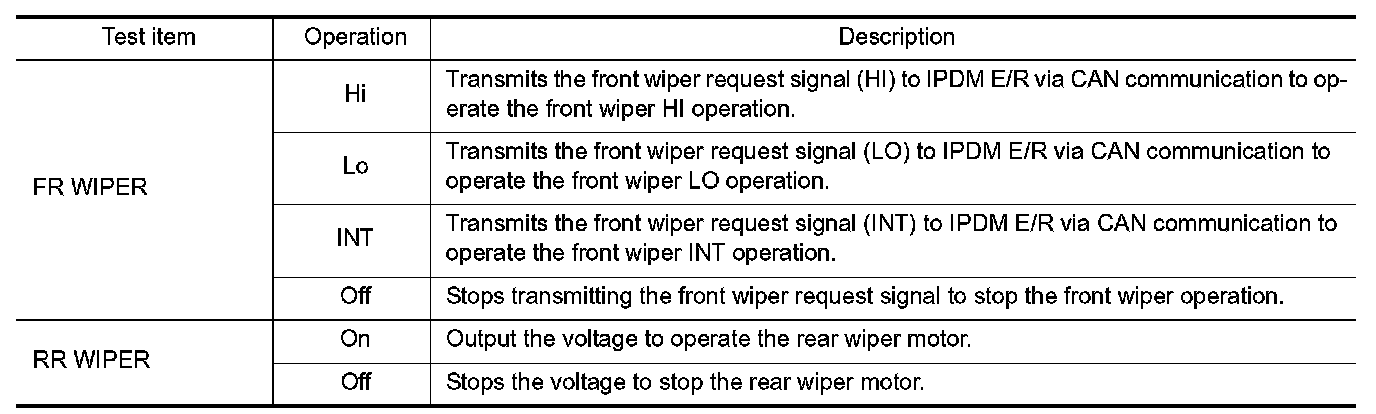

ACTIVE TEST
