CONSULT-III Function Without Intelligent Key System
CONSULT-III Function Without Intelligent Key System
DIAGNOSIS SYSTEM (
BCM
)
THEFT ALM : CONSULT-III Function (
BCM
- THEFT)

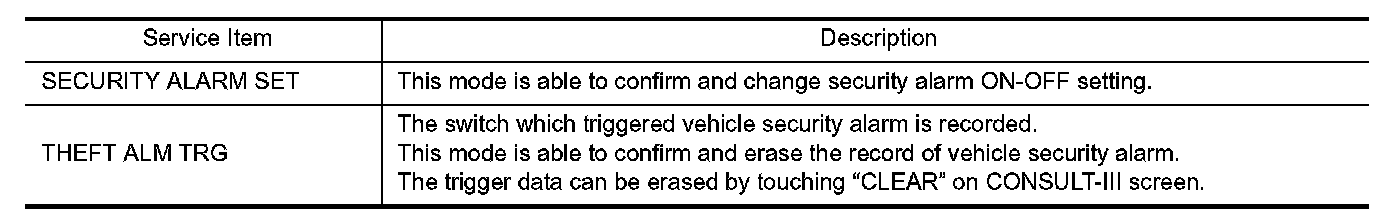

WORK SUPPORT

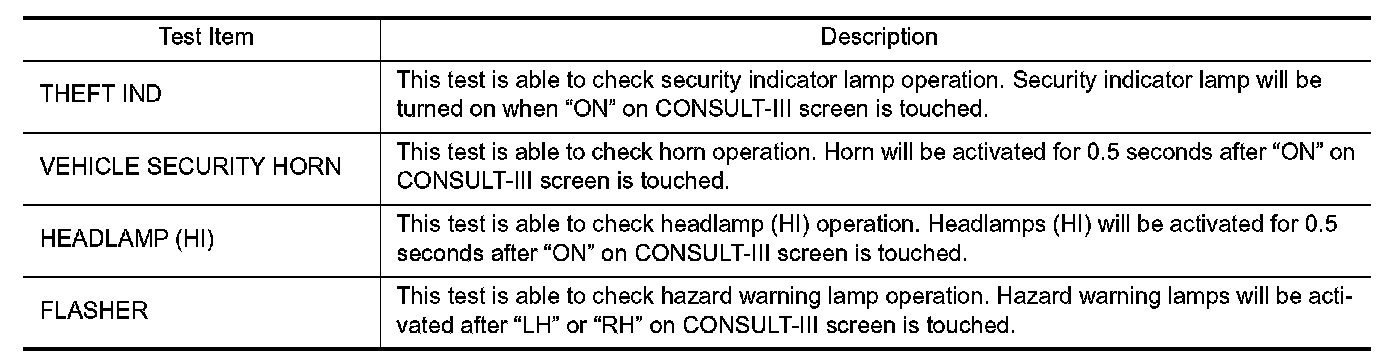

ACTIVE TEST
