Multifunction Remote ENT





DIAGNOSIS SYSTEM (BCM)


MULTI REMOTE ENT : CONSULT-III Function (BCM - MULTI REMOTE ENT)

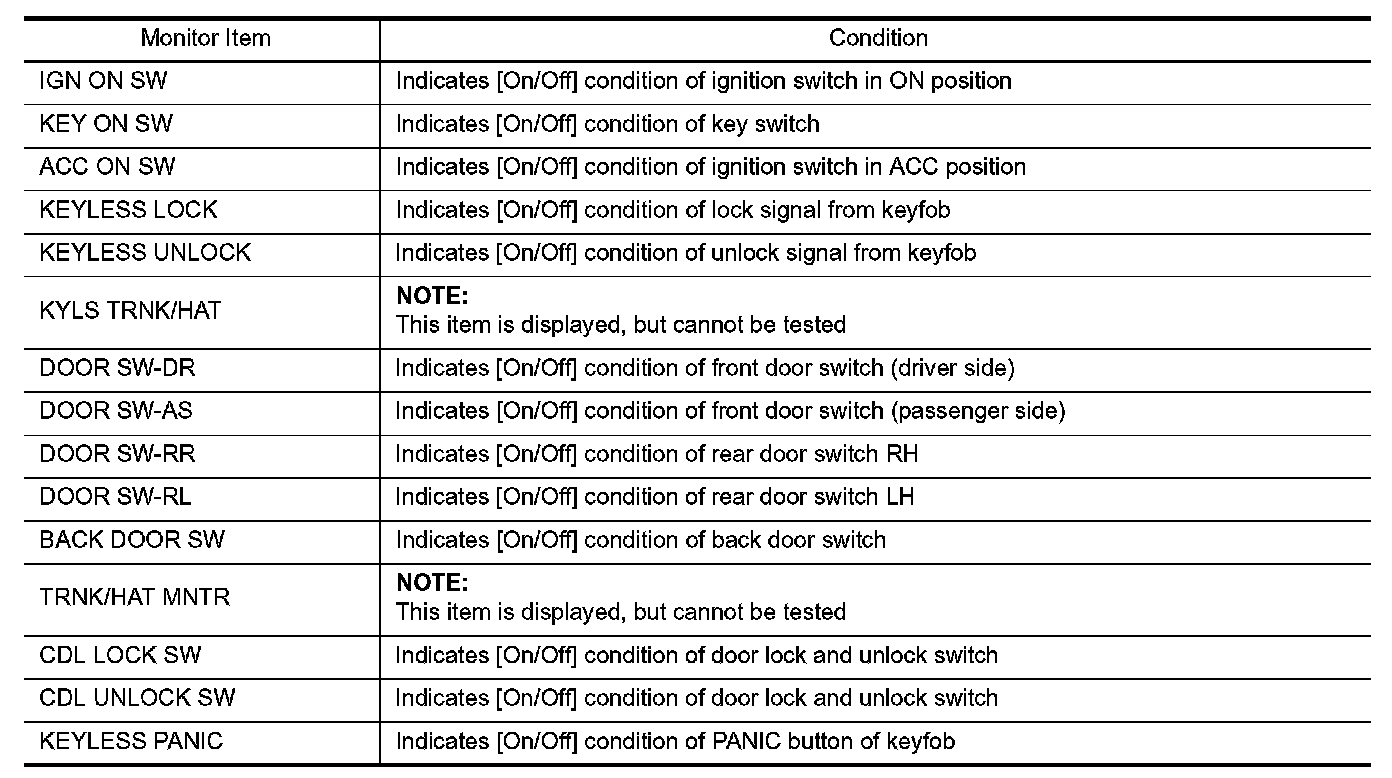

DATA MONITOR

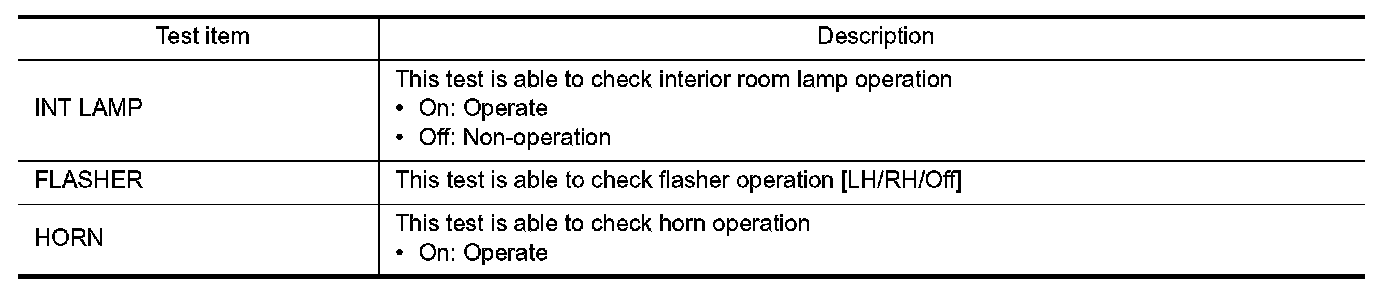

ACTIVE TEST

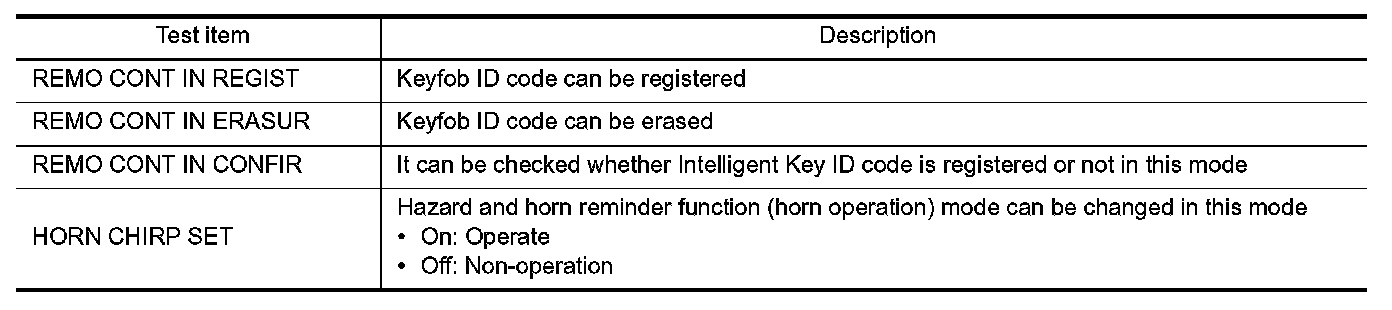

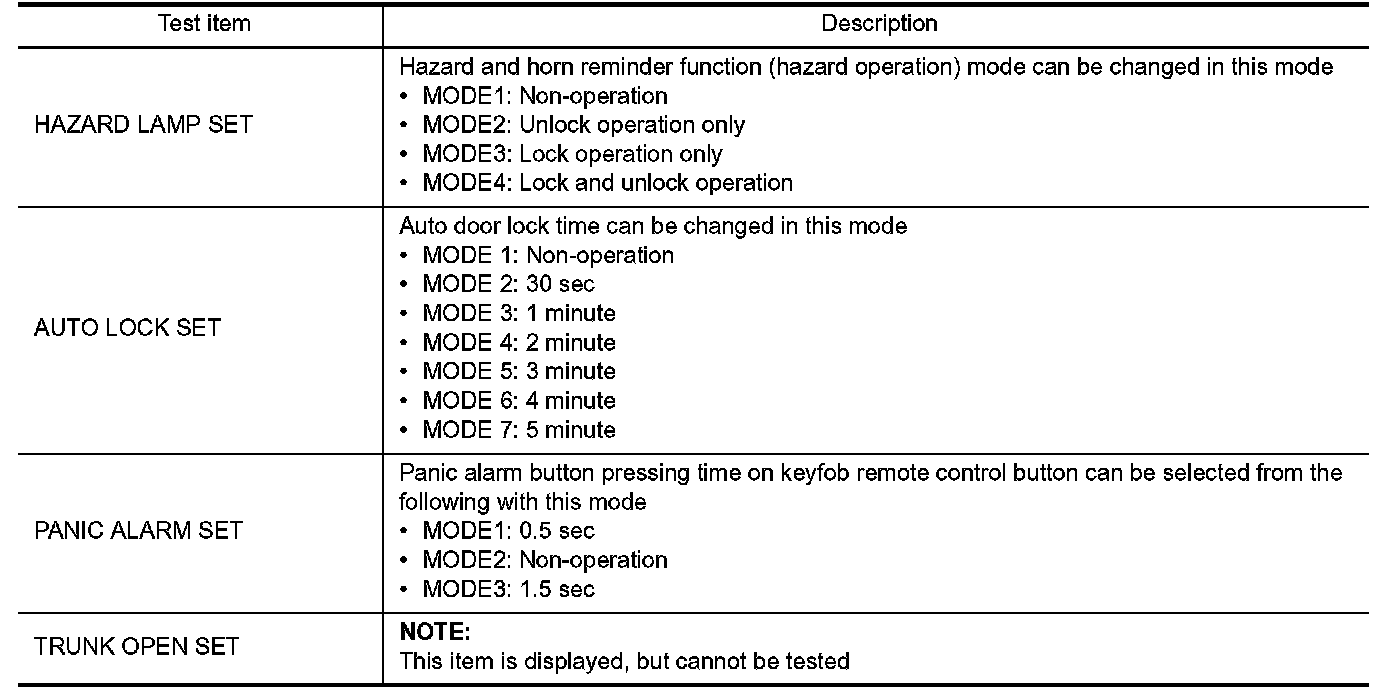

WORK SUPPORT
