With Intelligent Key System





SYSTEM

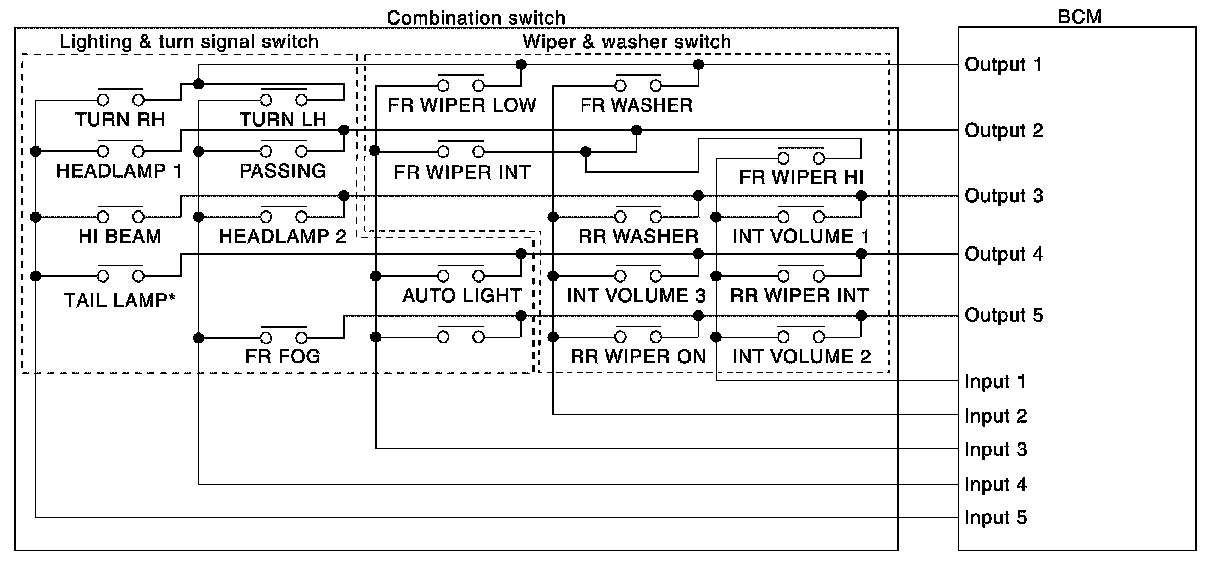

COMBINATION SWITCH READING SYSTEM : System Diagram







NOTE:
*: TAIL LAMP switch links lighting switch 1ST and 2ND positions.
