IPOD Adapter Audio Without Navigation

POWER SUPPLY AND GROUND CIRCUIT:_:iPod ADAPTER iPod ADAPTER





Diagnosis Procedure

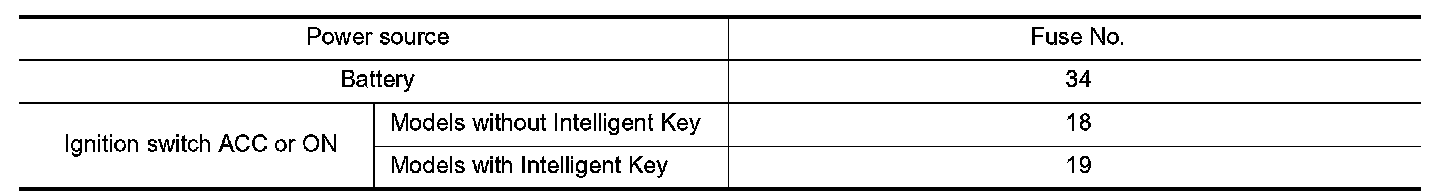

1.CHECK FUSE
Check for blown fuses.





Is the inspection result normal?
YES - GO TO 2.
NO - Be sure to eliminate the cause of malfunction before installing new fuse.
2.CHECK POWER SUPPLY CIRCUIT

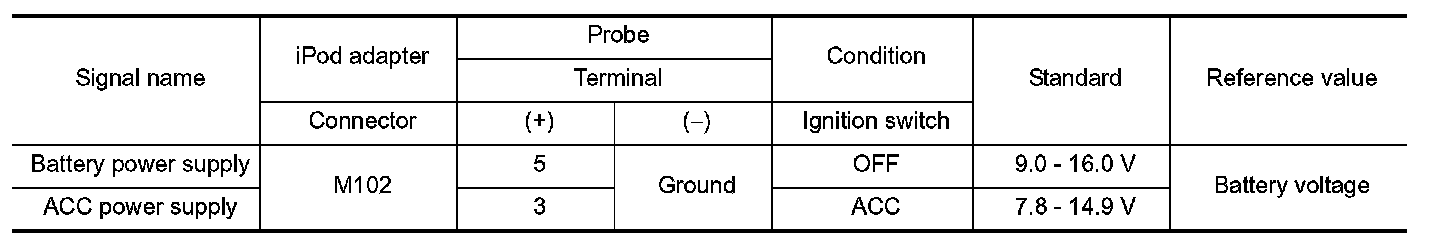

Check voltage between iPod adapter harness connector and ground.





Is the inspection result normal?
YES - INSPECTION END
NO - Check harness between iPod adapter and fuse.
